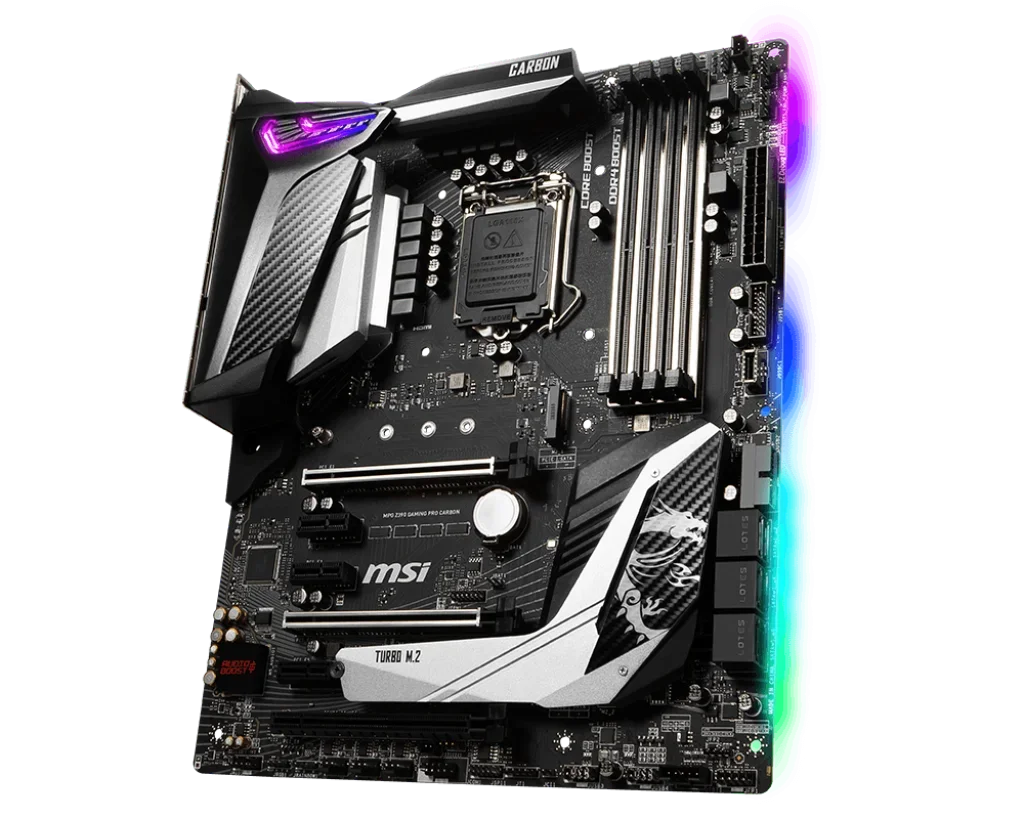

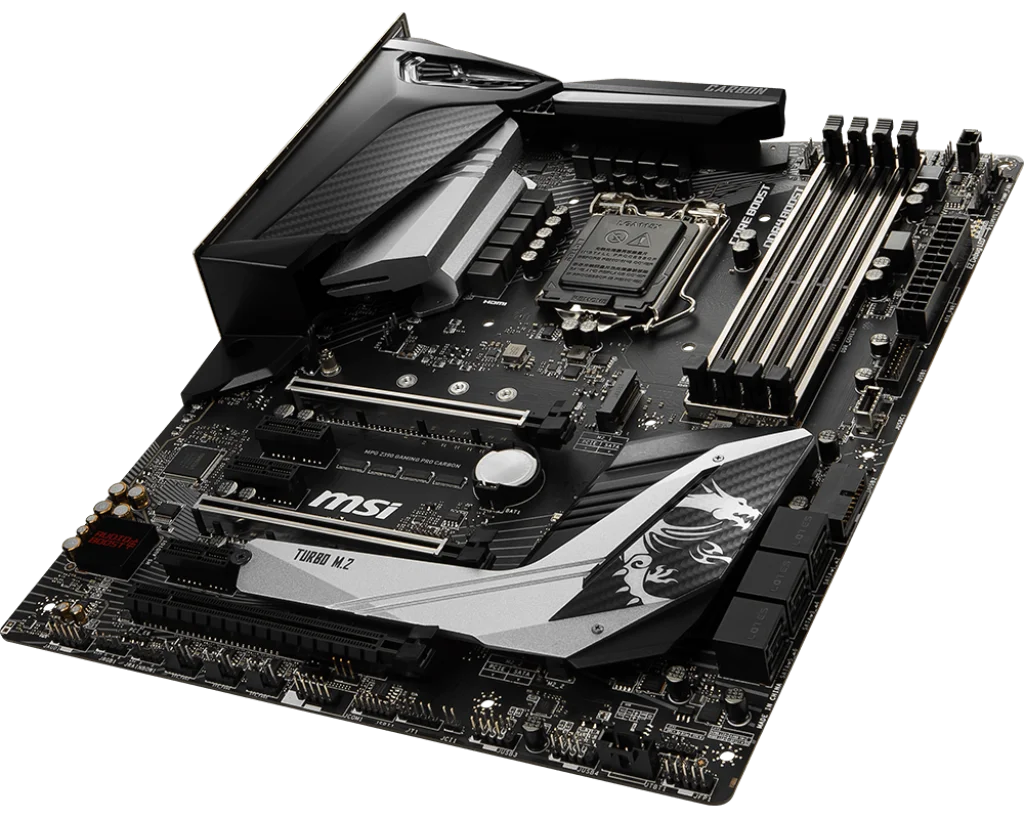

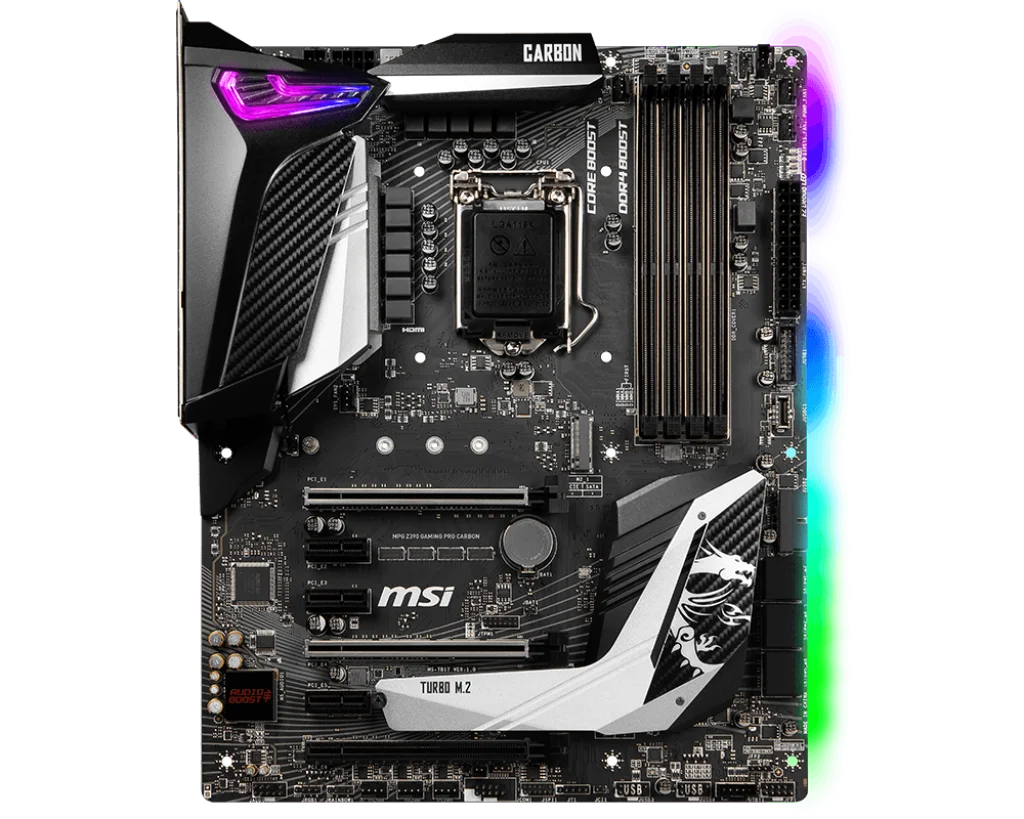

MSI MPG Z390 Gaming PRO Carbon LGA1151 (Intel 8th and 9th Gen) M.2 USB 3.1 Gen 2 DDR4 HDMI DP SLI CFX ATX Motherboard
New
$171.00 USD
✓ Secure checkout✓ Shipping updates✓ Customer support
Product details
Specifications
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,WiFi,Displayport,HDMI 1.4
Battery Included: no
Brand Name: MSI
Chipset: Intel Z390
Chipset Manufacturer: Intel
High-concerned chemical: none
Maximum Ram Capacity: 64 GB
Number of PCI: 3
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: No
Processor compatibility: 8th Intel Core i5,9th Intel Core i3,9th Intel Core i5,8th Intel Core i7,9th Intel Core i9,9th Intel Core i7,8th Intel Core i9,8th Intel Core i3
RAID Supported: no
Socket Type: LGA 1151
Special Features: NONE
Storage Interface Type: SATA,M.2 (NVMe)
Support Memory Type: DDR4
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video
With CPU: No
General
Chipset
Intel Z390
CPU Socket
LGA 1151

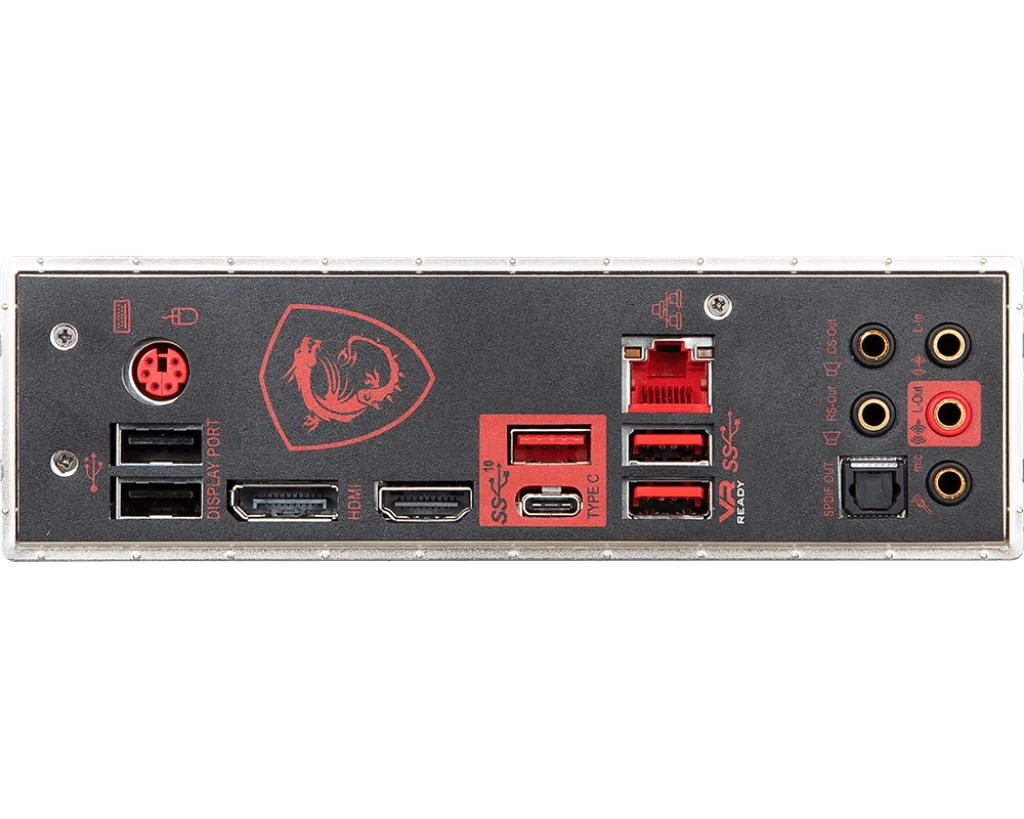

Back Panel I/O
USB
1x USB-C (USB 3.1/3.2 Gen 2)
3x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 2.0)
Display
1x HDMI
1x DisplayPort
Audio
5x 1/8" / 3.5 mm
1x S/PDIF
Ethernet / Controller
1x Intel I219-V Gigabit
PS/2
1x Combo
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400 MT/s
Maximum Capacity
64 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
6x SATA III
Storage Slots
2x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
U.2
No
Optane Memory Support
Yes
RAID Support
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1 (M.2)
Internal I/O
Expansion Slots
3x PCIe 3.0 x16
3x PCIe 3.0 x1
USB
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Multi-GPU Support
2-Way NVIDIA SLI
3-Way AMD CrossFireX
Air Cooling
1x 4-Pin CPU
5x 4-Pin System
Liquid Cooling
1x 4-Pin Pump
Power Connectors
1x 24-Pin Mainboard
1x 8-Pin CPU
1x 4-Pin CPU
Security
Chassis Intrusion, TPM Module
LED Header
4x RGB
Audio
No
Add-On
1x Thunderbolt Card Header
Legacy
1x Serial
Front Panel I/O
Front Panel I/O
USB 3.0 / 3.1/3.2 Gen 1
Audio
Audio Codec
Realtek ALC1220P-VB2 (7.1-Channel)
Wireless
Bluetooth
5.0
Wi-Fi
Wi-Fi 5 (802.11ac) (MU-MIMO)
Software
Supported Operating Systems
Windows 10 (64-Bit)
Physical
Form Factor
ATX
Dimensions
9.6 x 12" / 243.84 x 304.80 mm
Packaging Info
Package Weight
4.09 lb
Box Dimensions (LxWxH)
13.55 x 10.8 x 3.5"
