FNIRSI LCR-ST1 Smart Tweezer LCR SMD ESR Mini Tester Resistance Capacitance Inductance Continuity Diode Test Measurement Tools
Tuntun
$68.00 USD
✓ Ìsanwó tó ní ààbò✓ Ìròyìn fífi ọjà ránṣẹ́✓ Ìrànlọ́wọ́ oníbàárà
Product details
Specifications
SPECIFICATIONS
AC Voltage: 0
Battery Included: Yes
Brand Name: FNIRSI
Certification: CE
DC Voltage: 0
DIY Supplies: Electrical
Display Type: Digital Display
FNIRSI Model: LCR-ST1
High-concerned chemical: none
Measuring Capacitance Range: 1mF-22mF/ 1uF-1mF/ 1nF-1uF/ 1pF-
Measuring Inductance Range: 1H-10H/1mH-1H/10uH-1mH/1uH-10uH
Measuring Resistance Range: 1MΩ-10MΩ/ 1KΩ-1MΩ/ 1Ω-1KΩ/ 10mΩ-
Model Number: LCR-ST1
Operating Mode: Auto Range
Operating Temperature: 0 - 40 ℃
Origin: Mainland China
Semi-finishedproduct: No

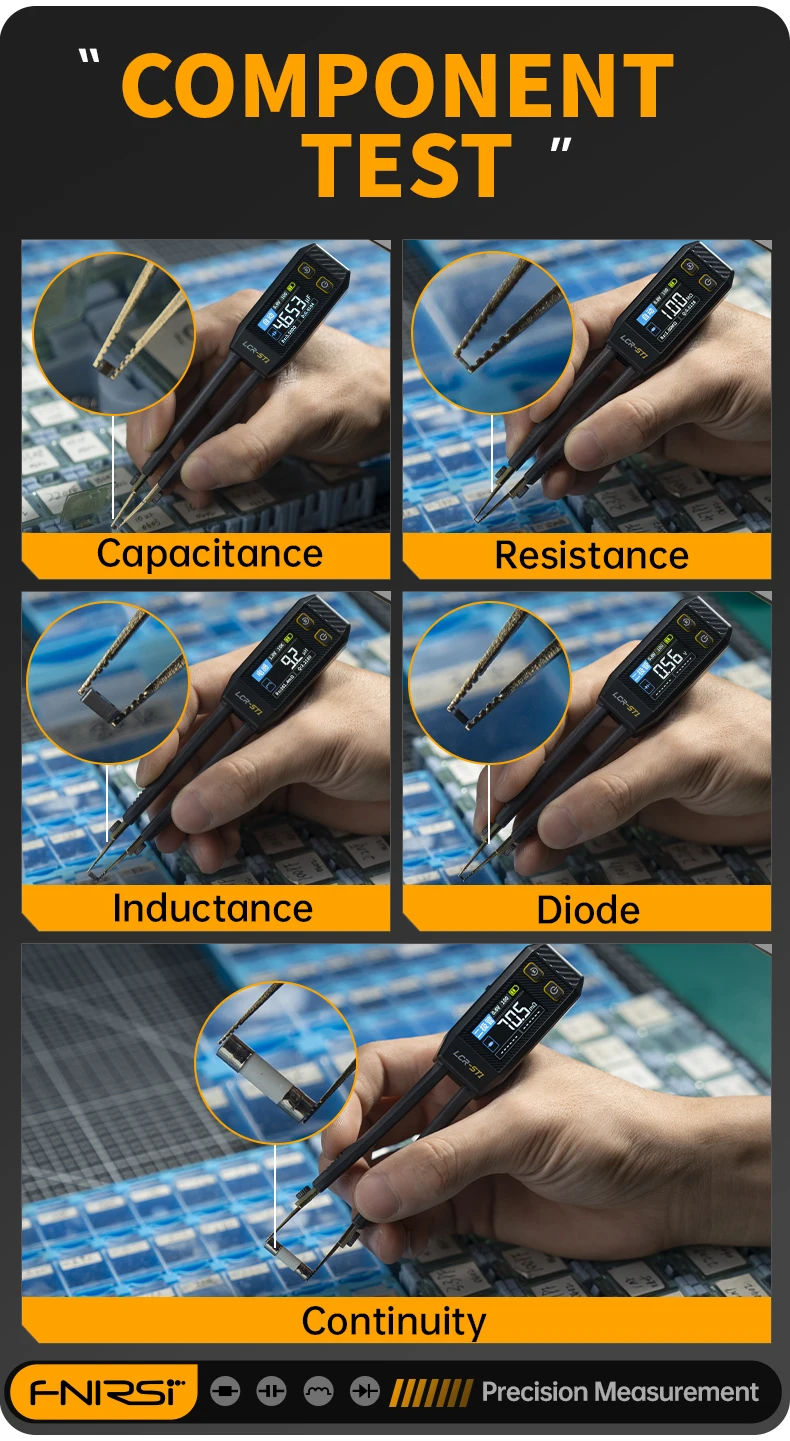

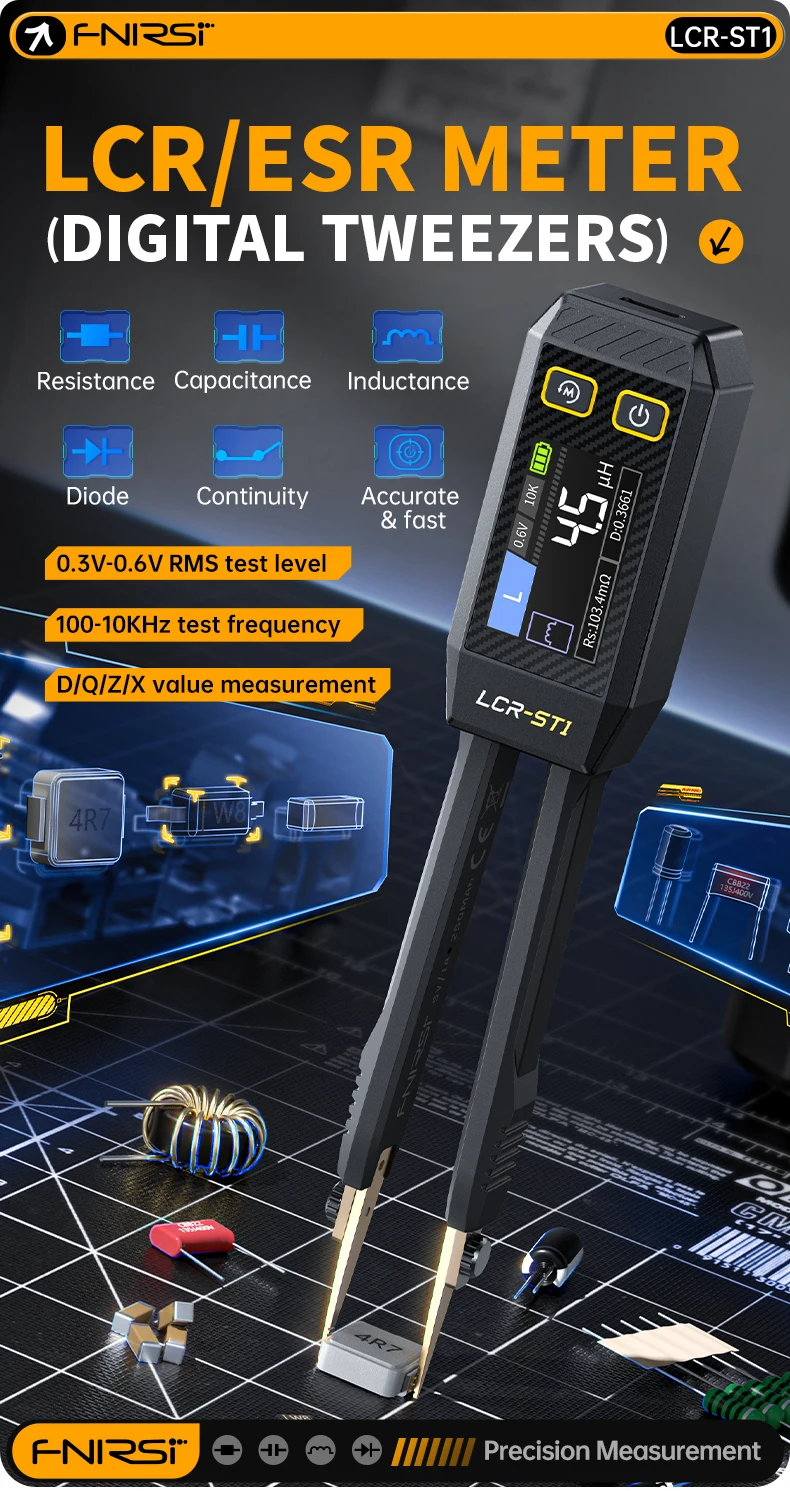

The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, inductance, diodes and Continuity.

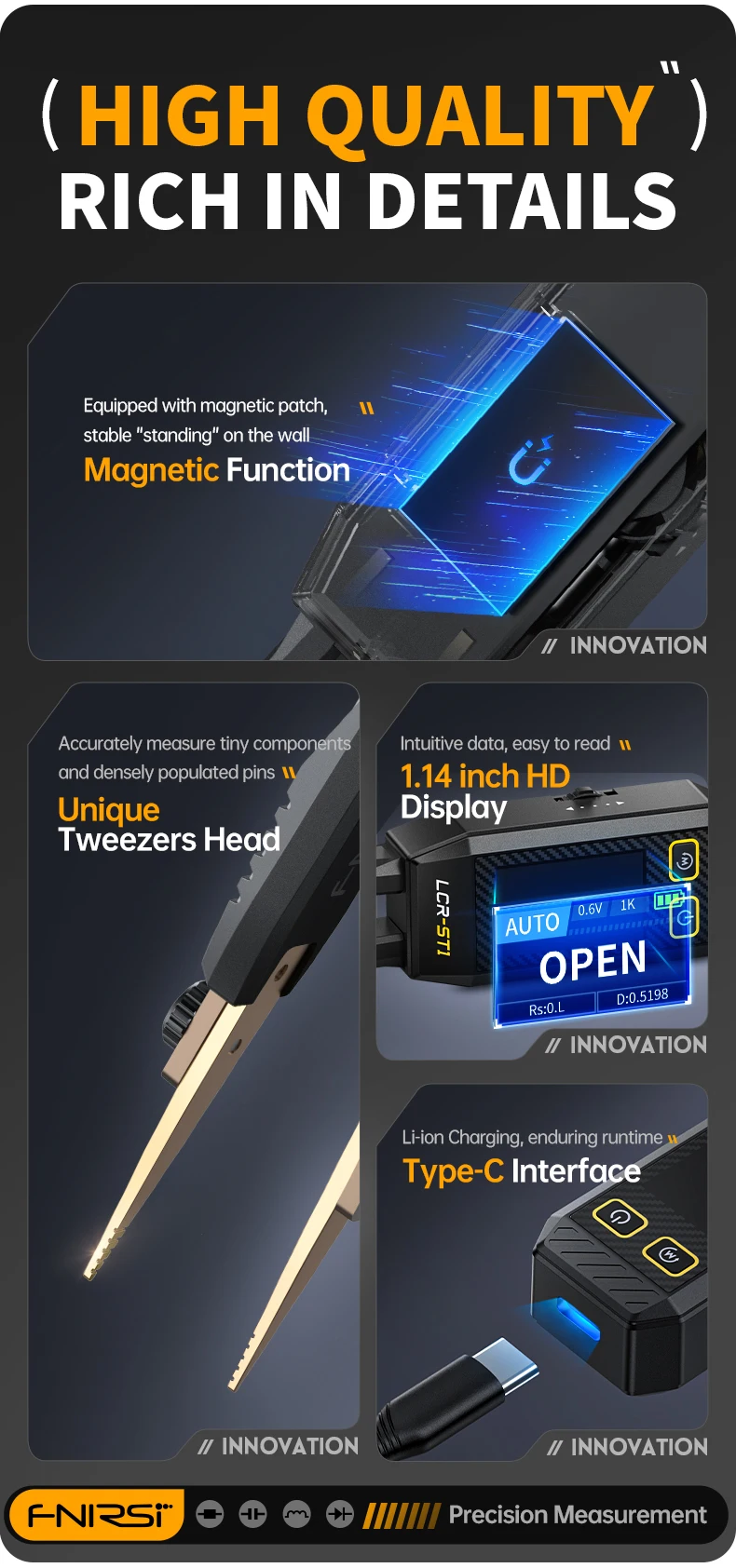

This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels

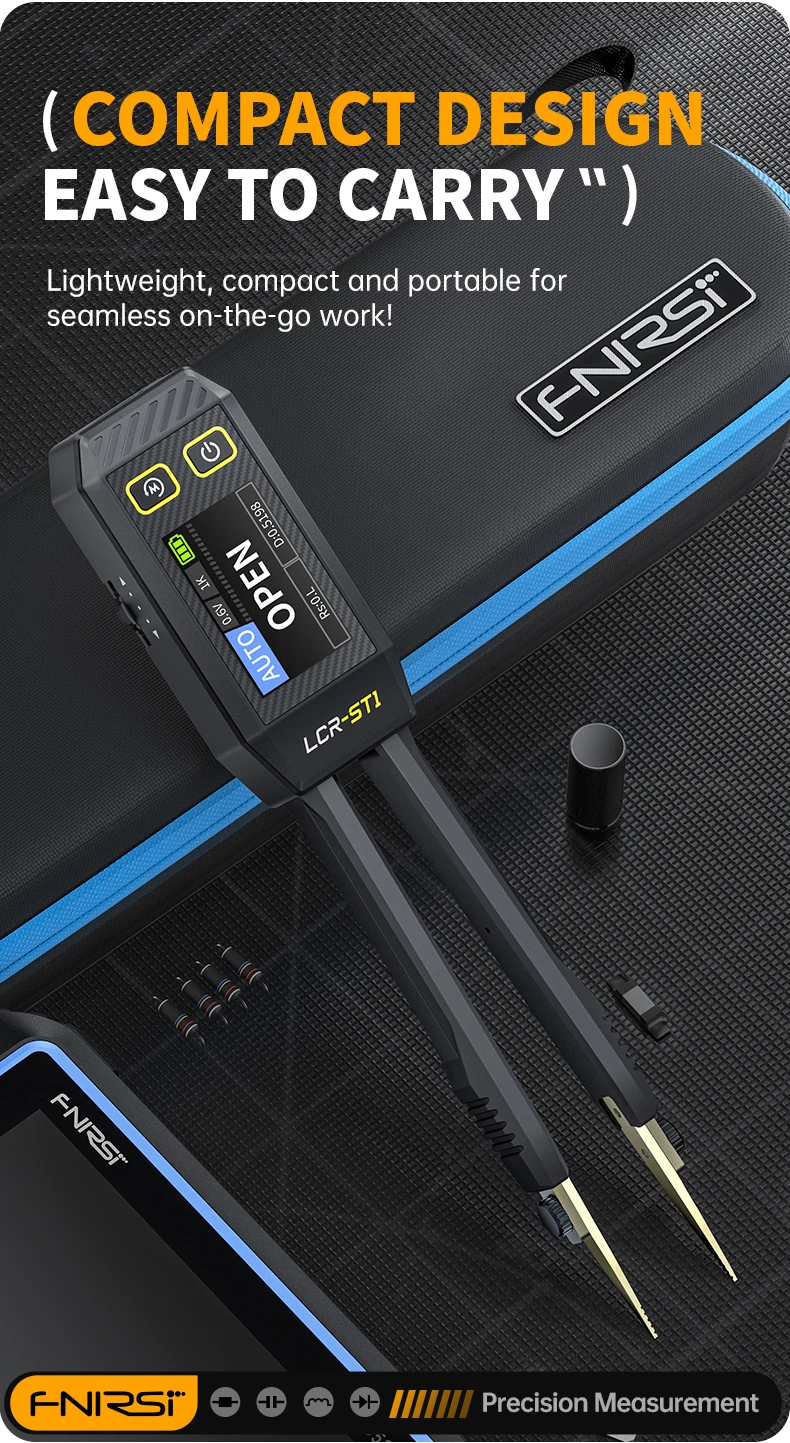

The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.
Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don't miss out on this excellent tool that combines functionality and portability!

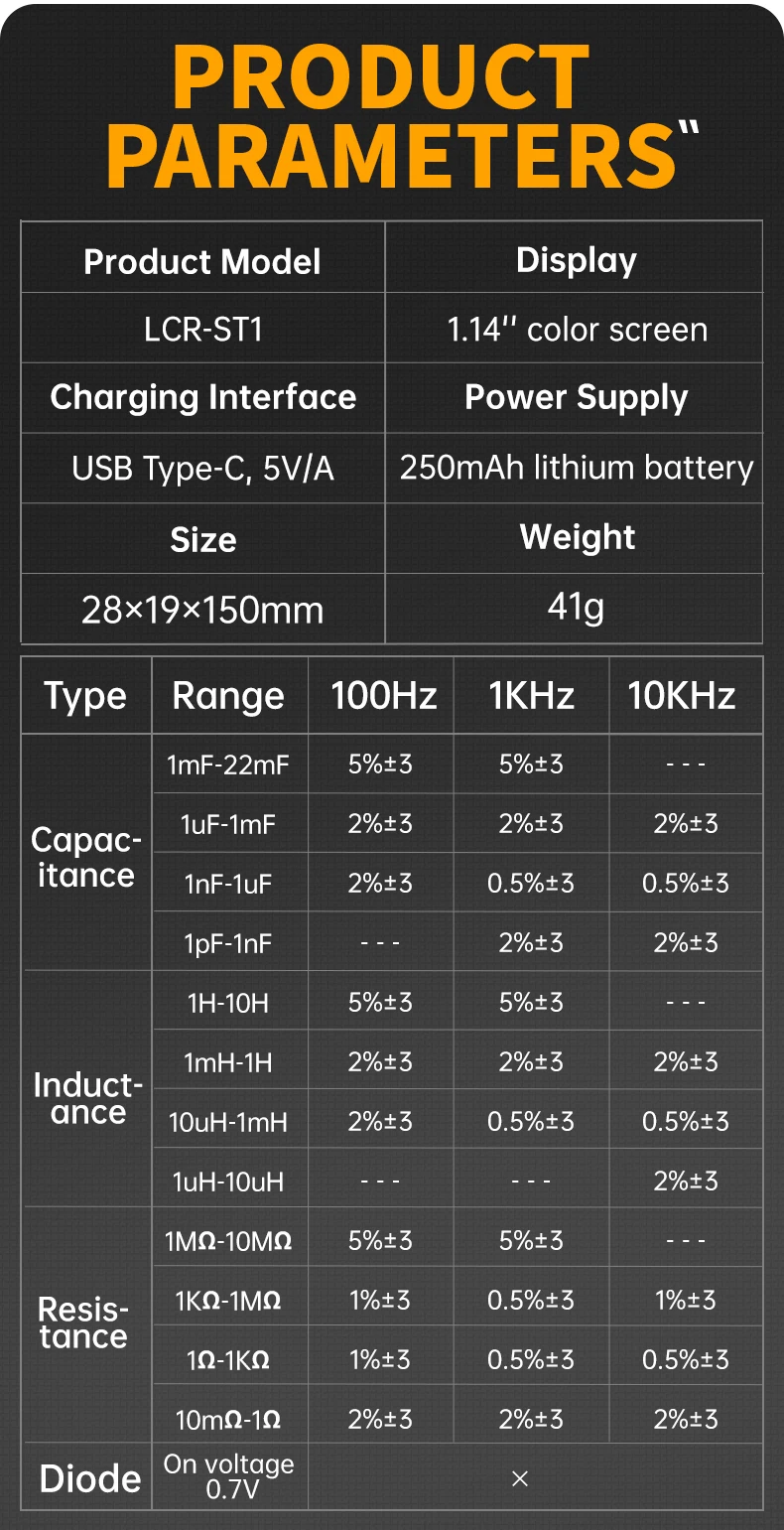

1.Product Model: LCR-ST1
2.Capacitance range: 1pF-22mF
3.Inductance range: 1μh-10H
4.Resistance range: 10mΩ-10MΩ
5.Diode: On voltage 0.7V

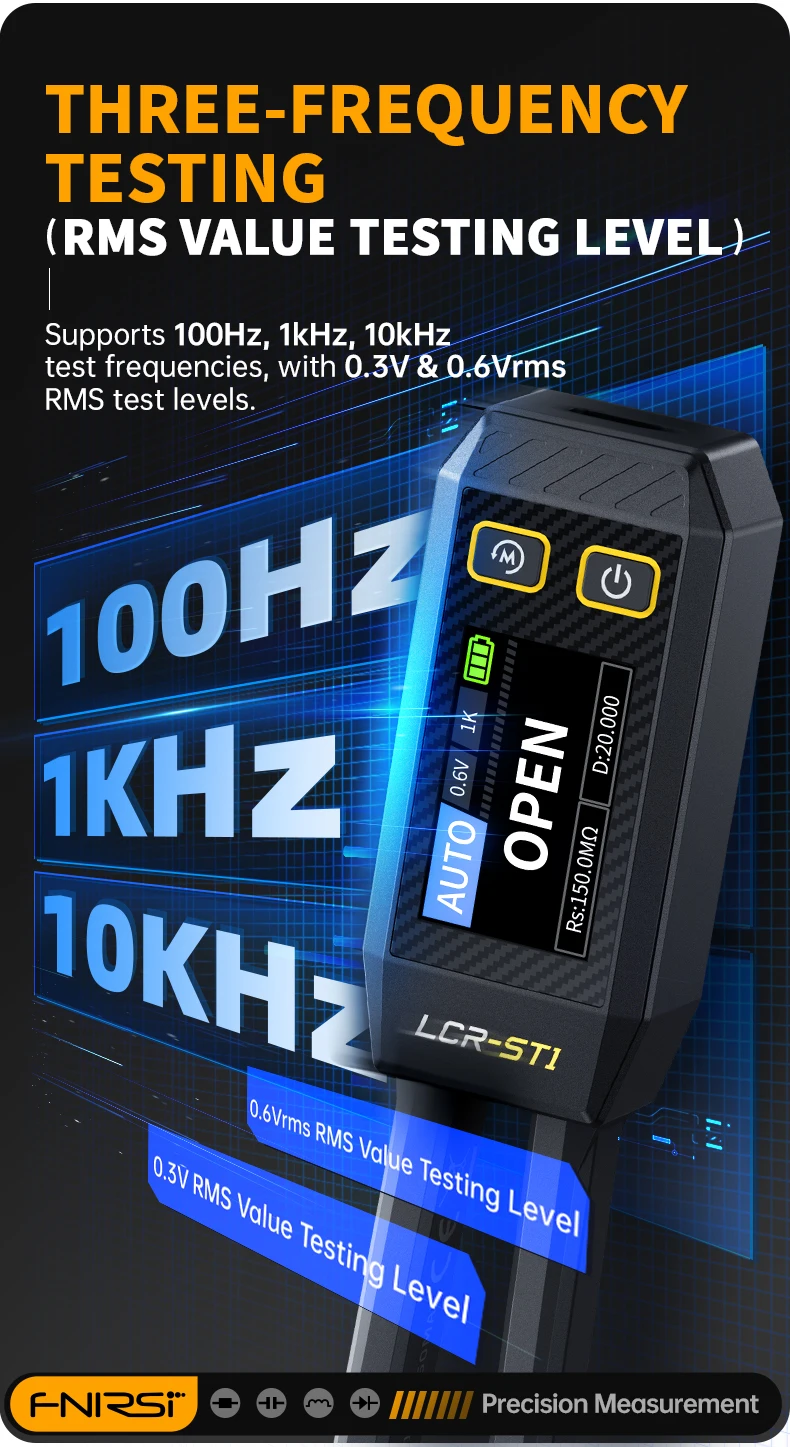

6.Frequency test: 100Hz, 1kHz, 10KHz
7.Level test: 0.3V, 0.6V RMS

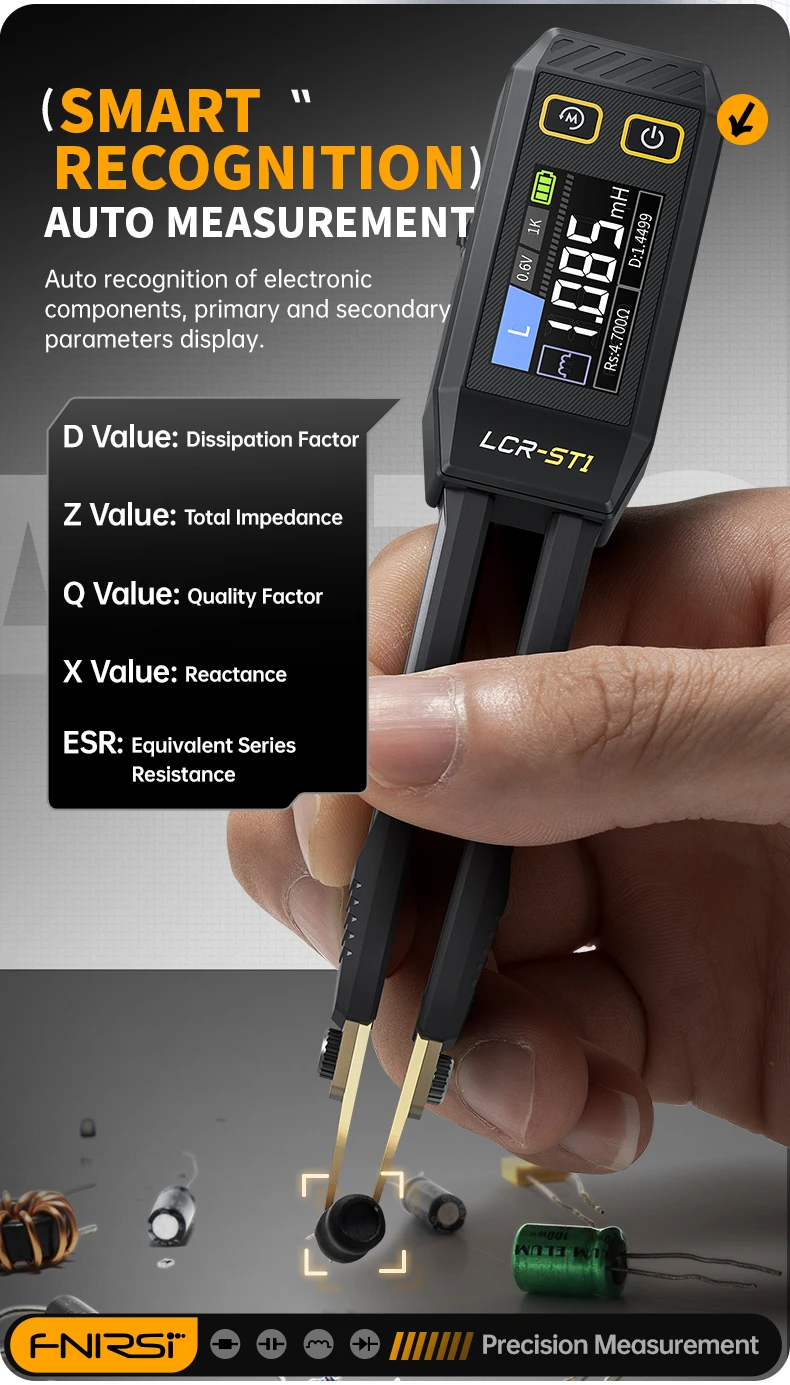

8.Parameter display: ESR, D value, Q value, Z value, X value

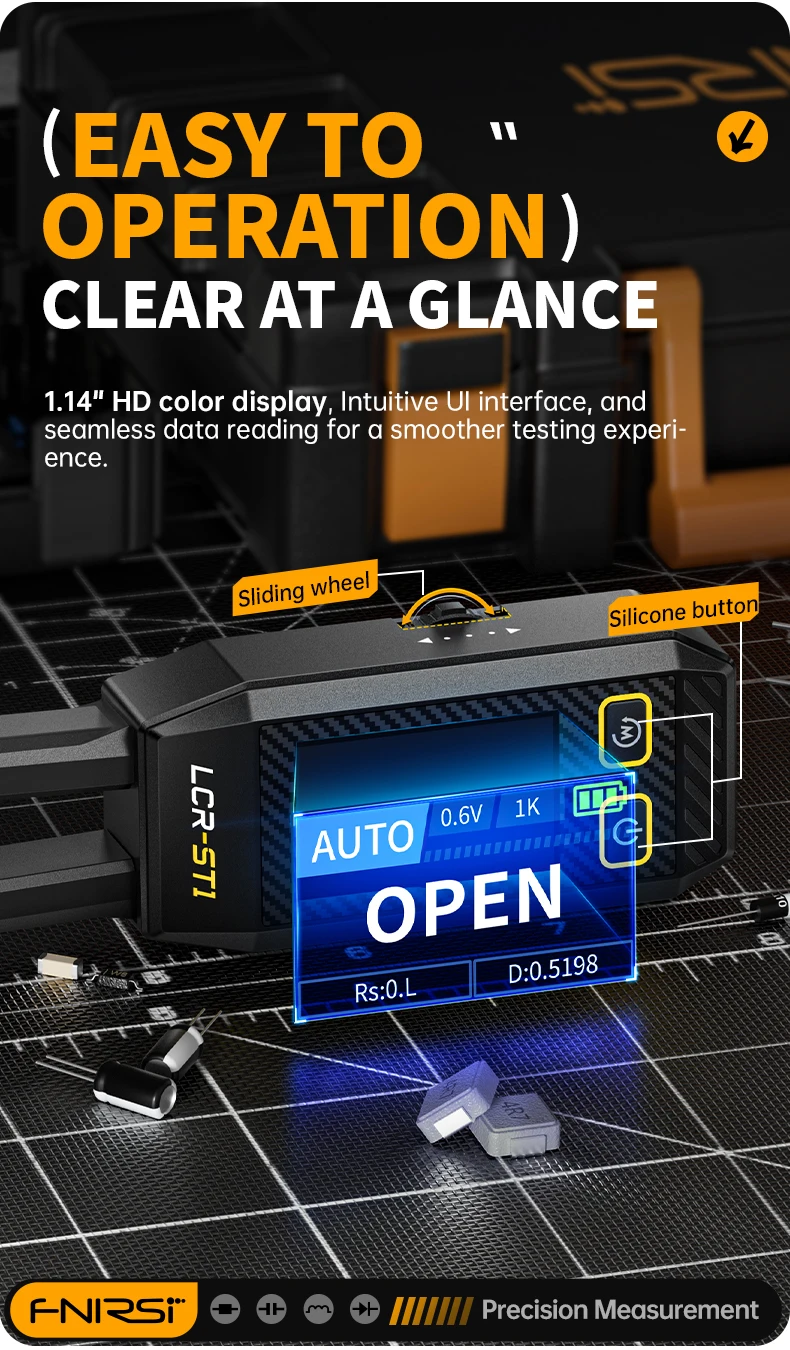

9.Display: 1.14'' color screen
10.Charging Interface: Type-C, 5V/A
11.Power Supply: 250mAh lithium battery
12.Auto recognition measurement: Support

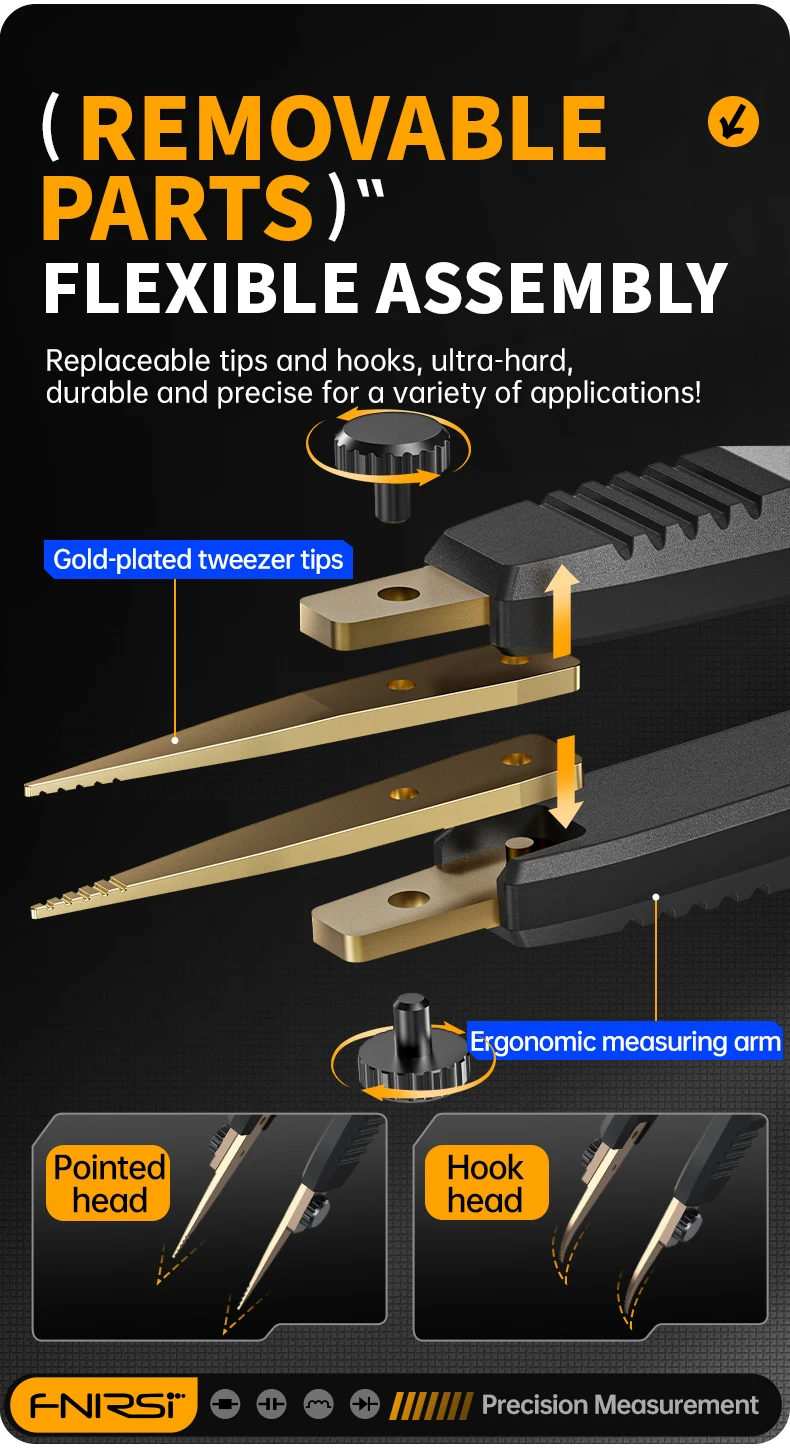

13.Replaceable tweezer head: Support
14.Auto shutdown: Support
15.Data hold: Support

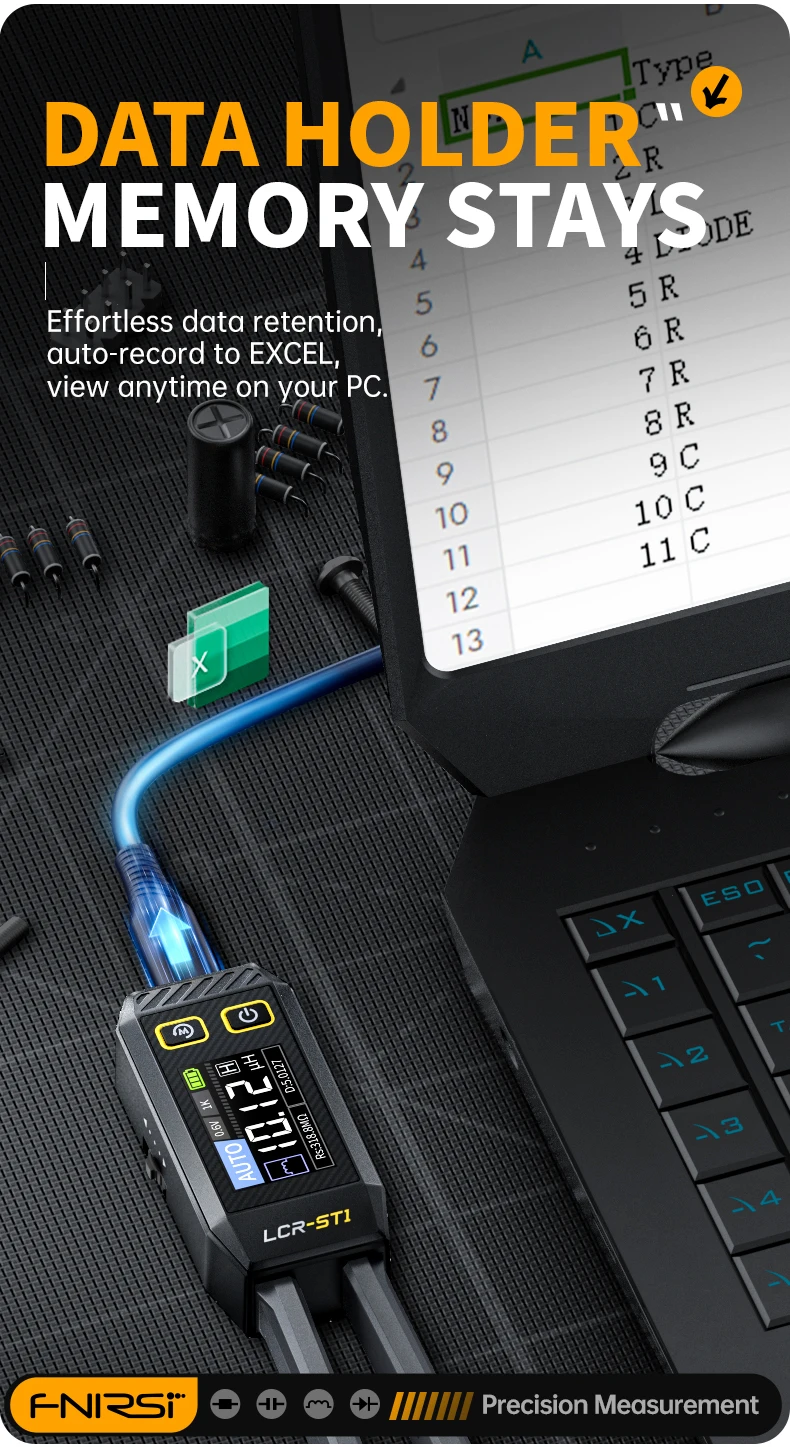

16.History record: Connect to PC to view and export
17.Language: Chinese, English
18.Size: 28×19×150mm
19.Weight: 41g
1. LCR-ST1 smart tweezers
2. Pointed head (one pair) + Hook head (one pair)
3. Storage bag
4. Magnetic patch
5. USB data cable
6. User manual
