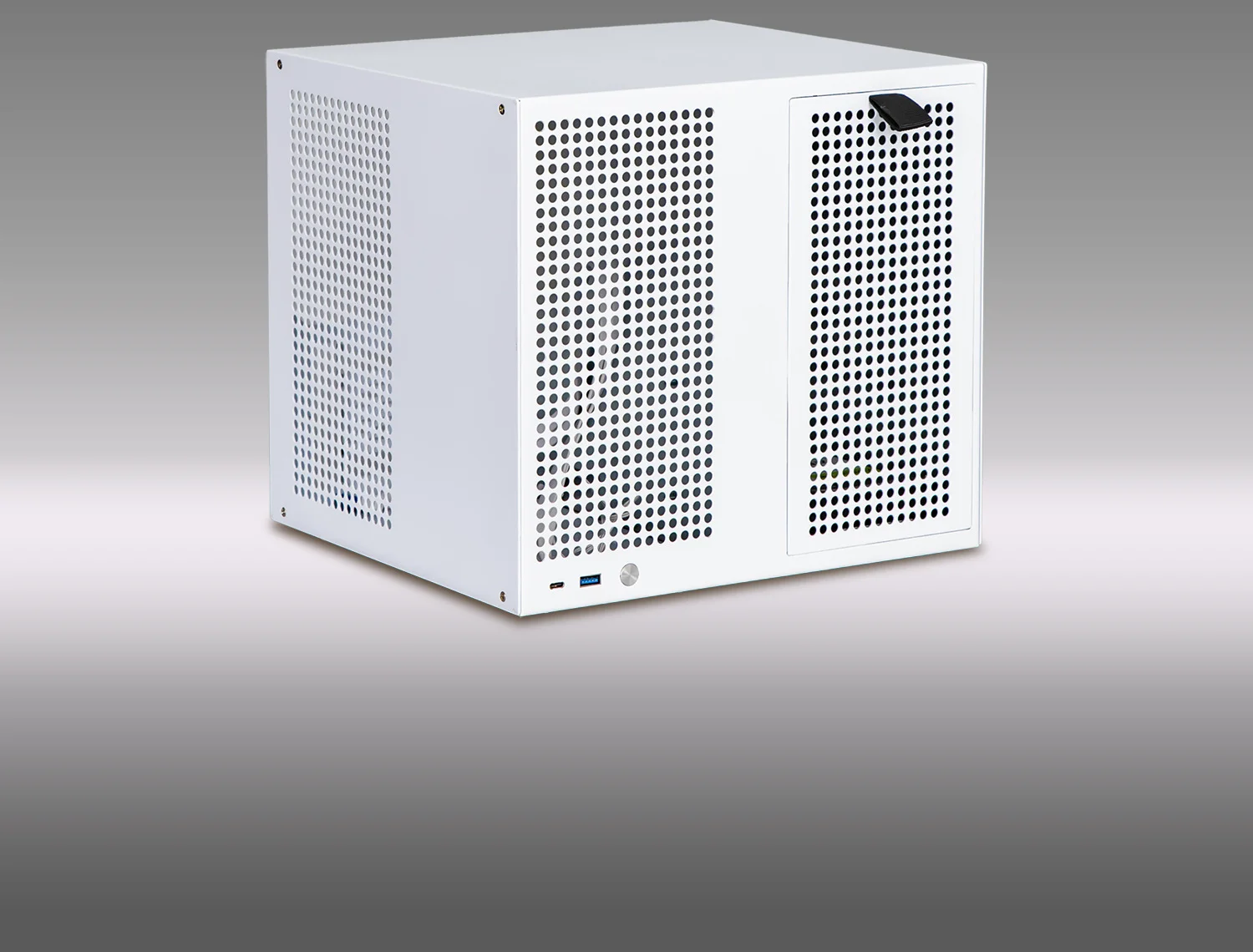

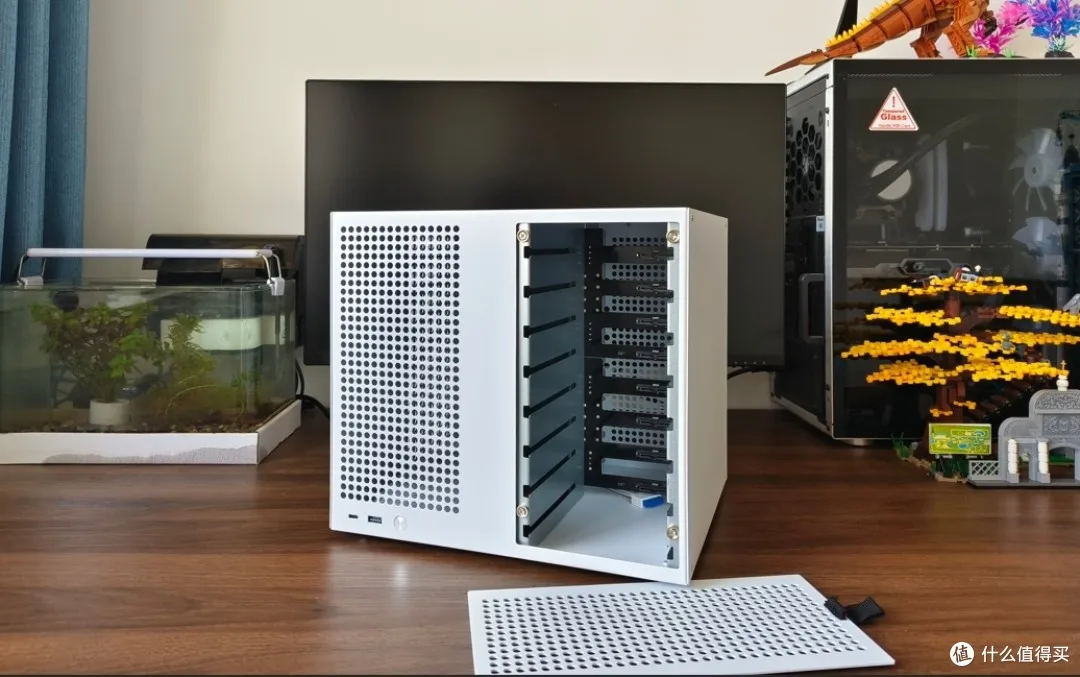

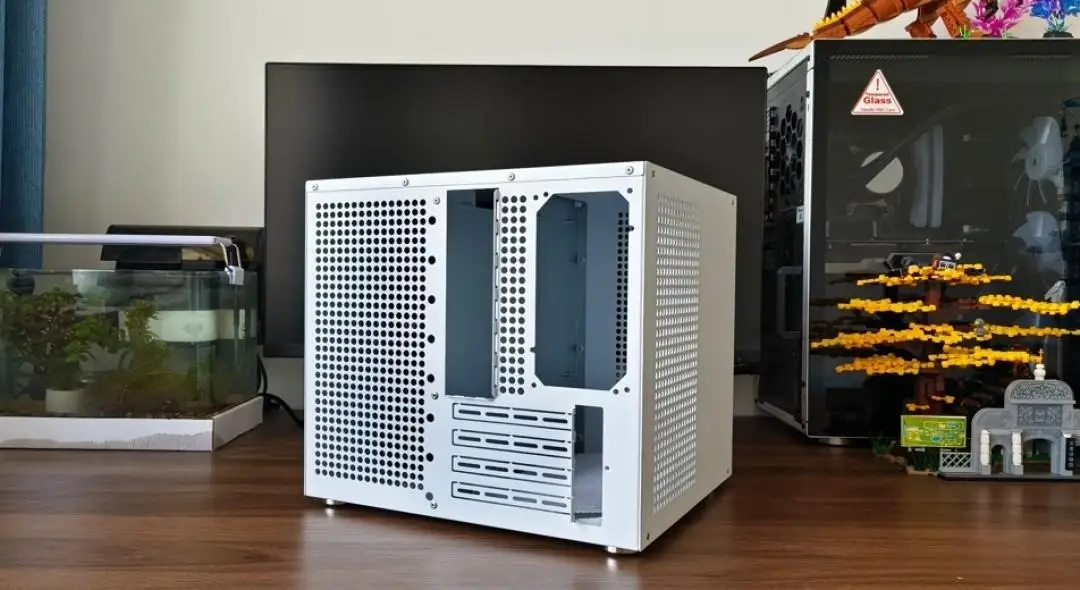

Sagittarius 8-bay NAS Chassis Case, Supports MATX Motherboards | ATX Power Supply | Four Full-height PCIE Slots | Volume 21.8L
Tuntun
$148.00 USD
✓ Ìsanwó tó ní ààbò✓ Ìròyìn fífi ọjà ránṣẹ́✓ Ìrànlọ́wọ́ oníbàárà
Product details
Specifications
SPECIFICATIONS
Application: Desktop
Brand Name: VBNM
Case Size: 302mm*270mm*270mm
Case Weight: 3.7
Chassis Type: Desktops
Form Factor: ATX,MicroATX
High-concerned chemical: none
Hot-Swap Drive Bays: 8
Internal 2.5" Drive Bays: 2
Internal 3.5" Drive Bays: 8

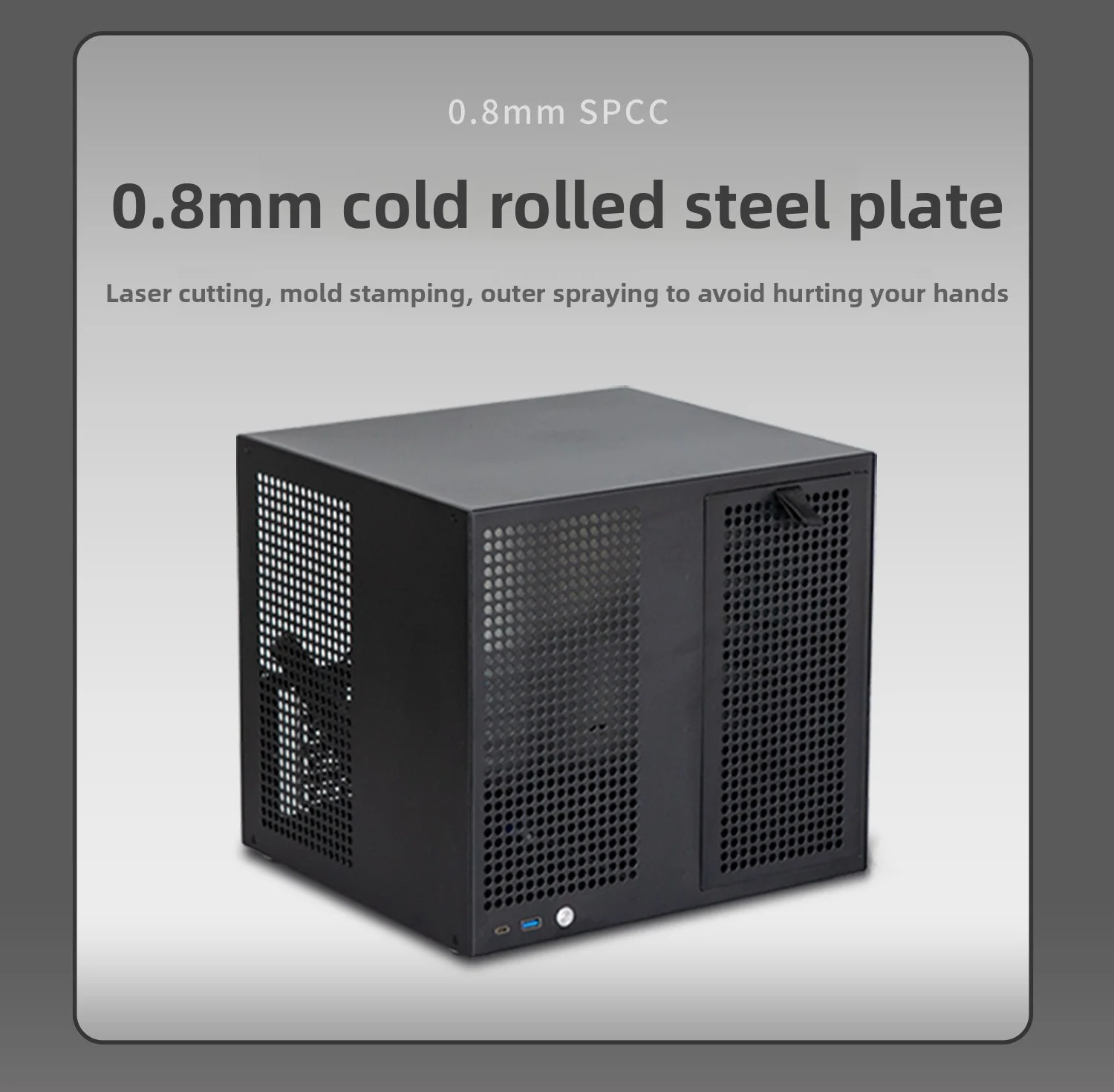

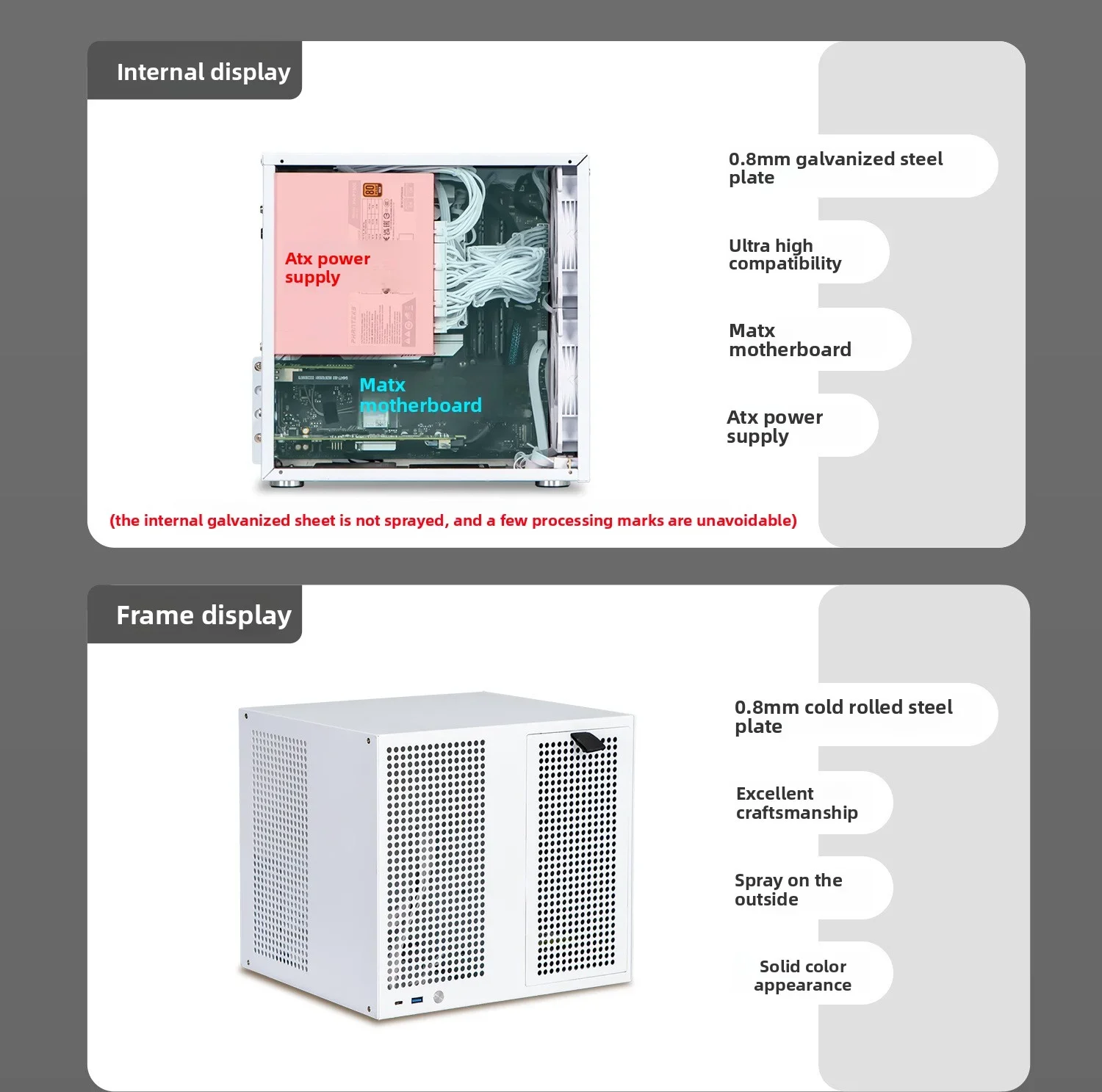

Material: SPCC
Max CPU Cooler Height: 55
Max PSU Length: 170
Model Number: Sagittarius 8-bay NAS Chassis
Origin: Mainland China
Power Model: ATX
RGB Support: NO RGB
Type: Rack
With Fan: no
With Power Supply: no
Note: Please read the specifications carefully before placing an order.

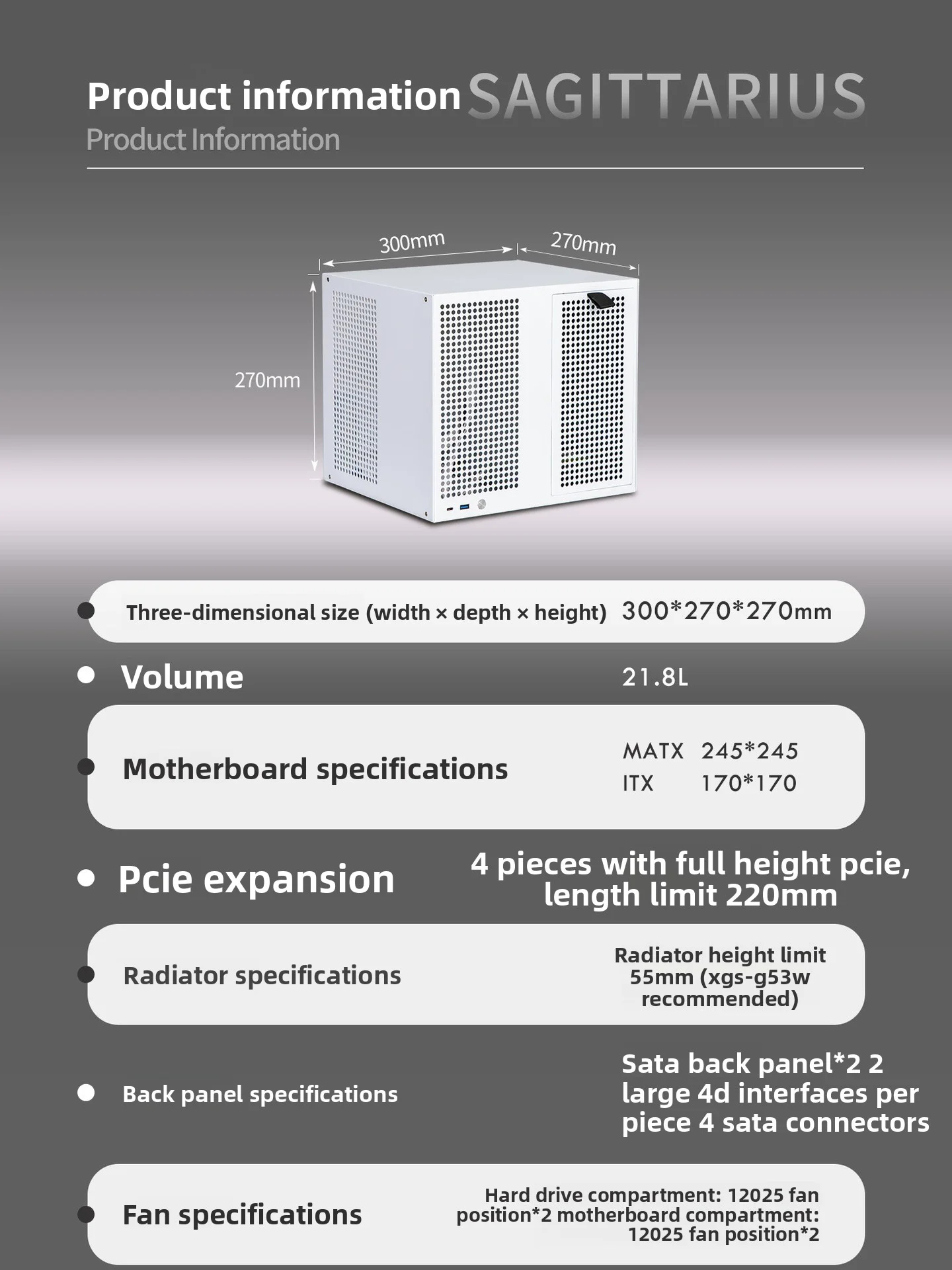

Case Dimensions: L x W x H 300 x 270 x 270mm
Case Volume: 21.8L

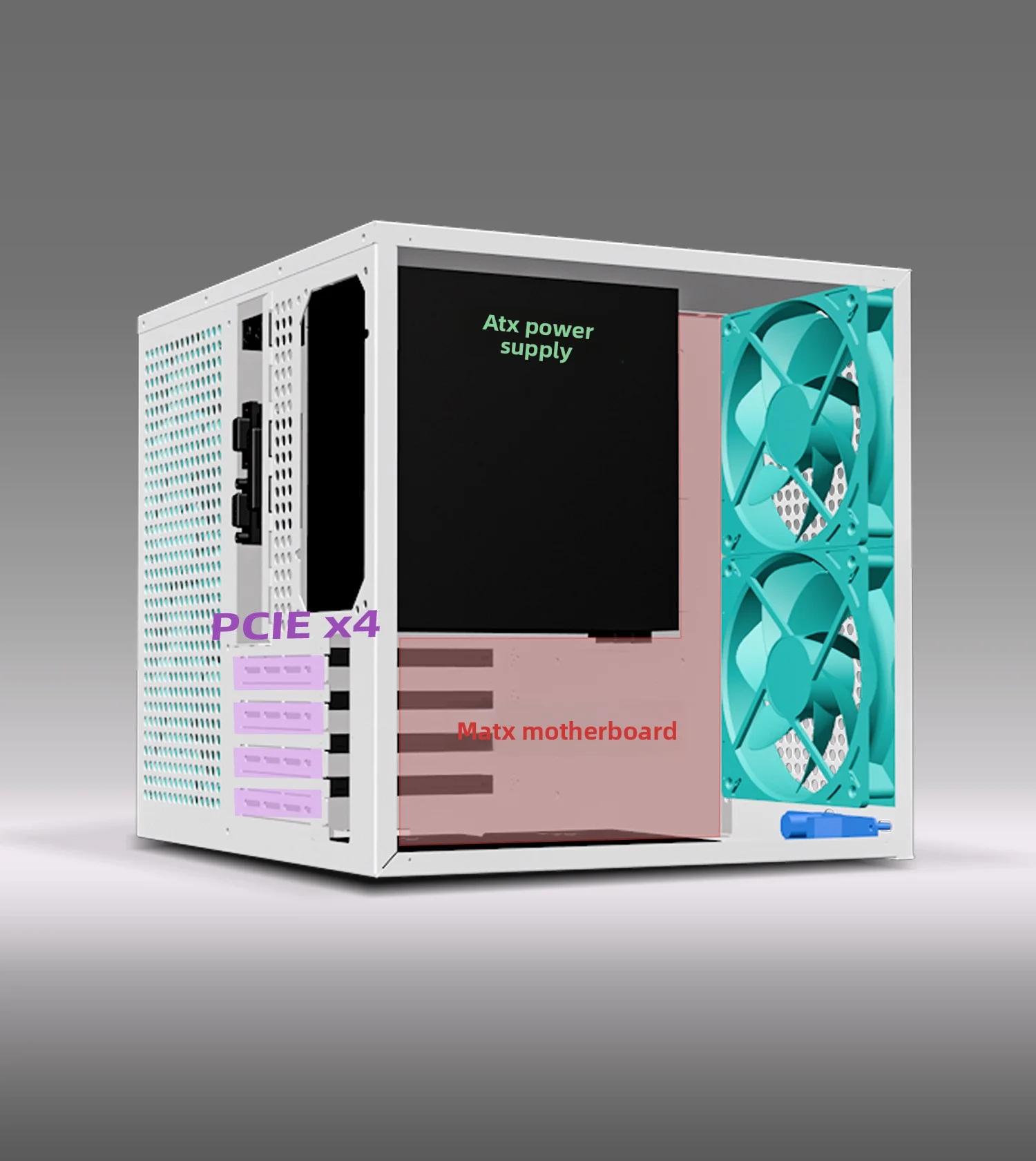

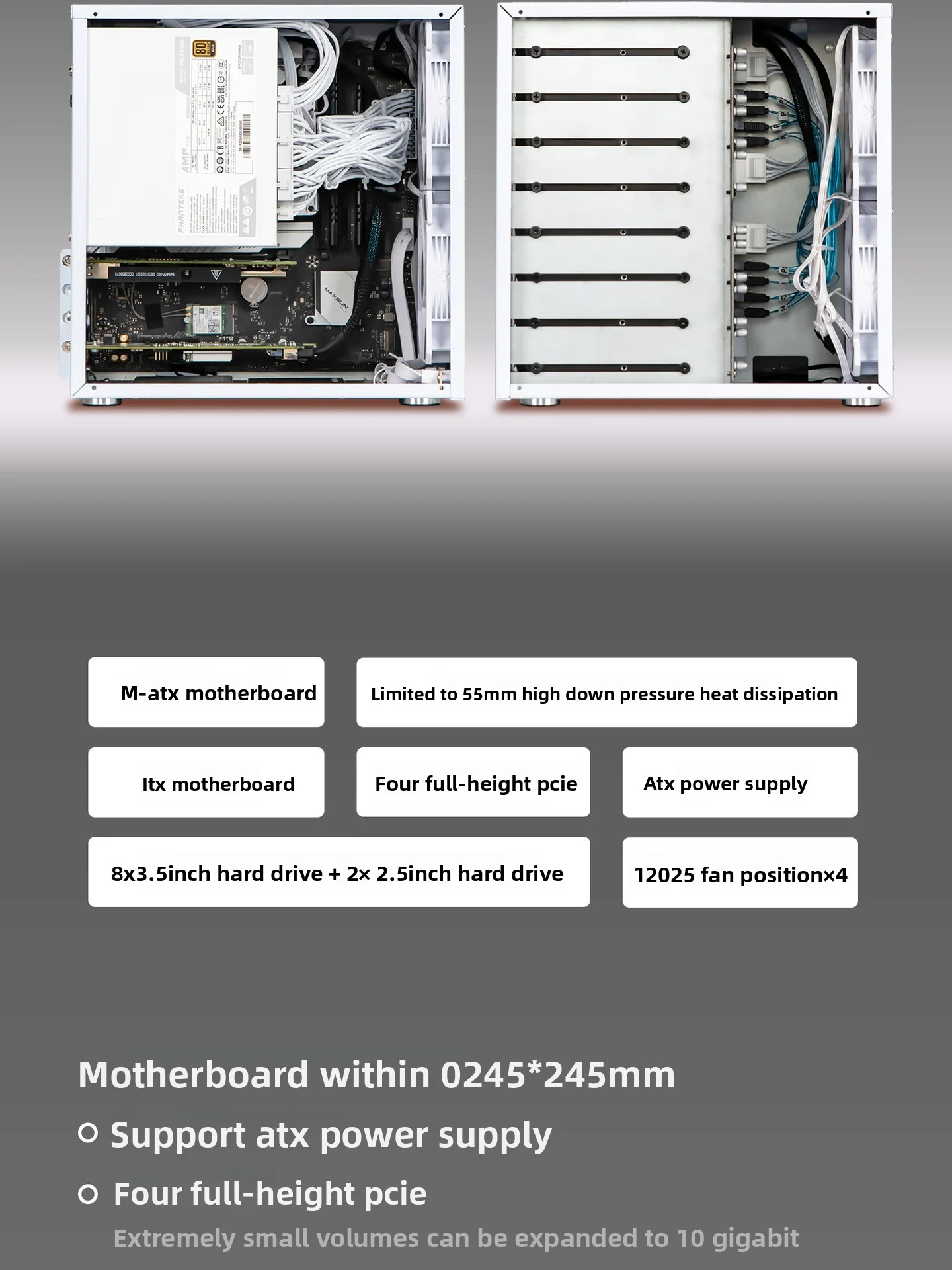

Motherboard Specifications: Supports MATX 245 x 245mm
Radiator Specifications: Maximum Height 55mm

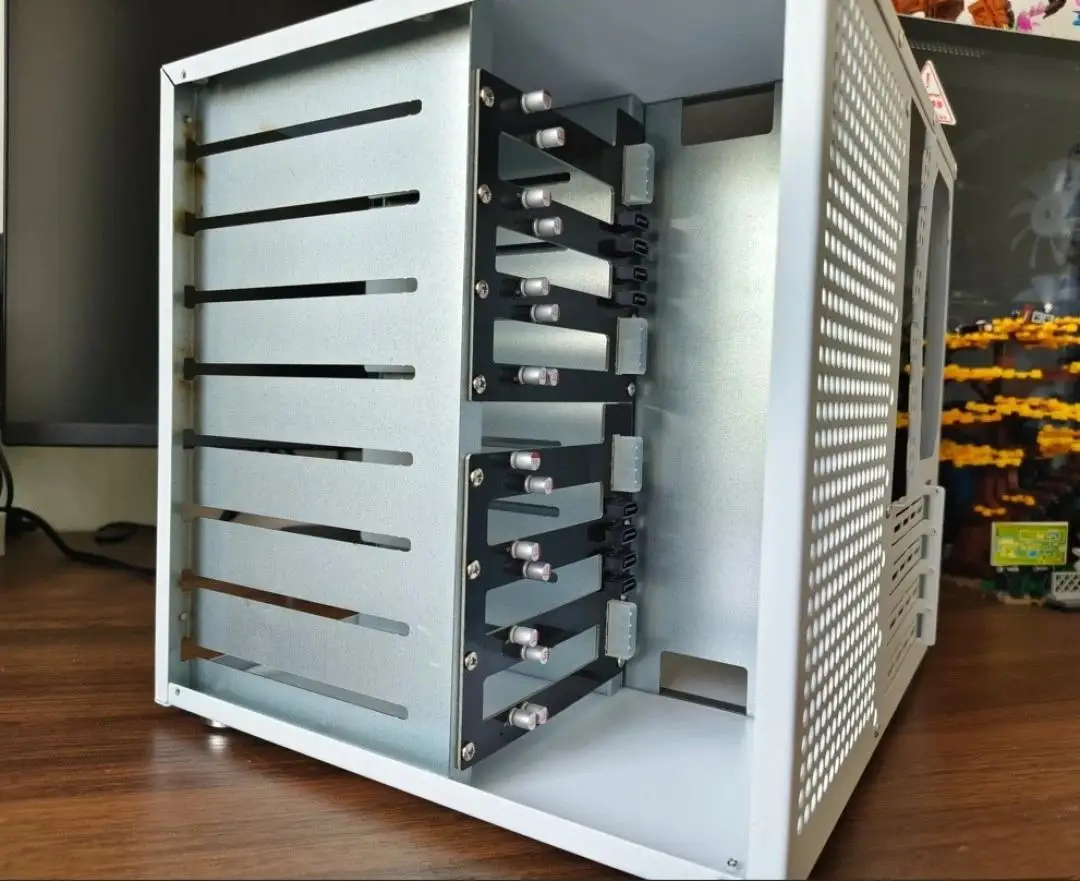

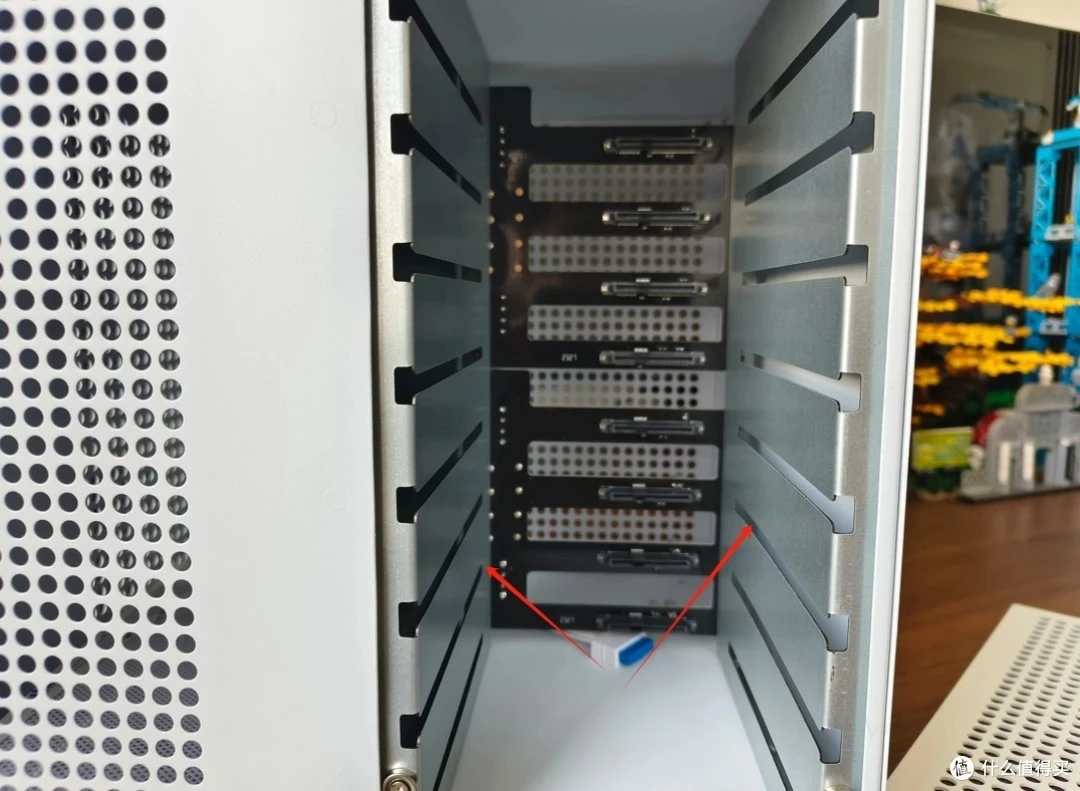

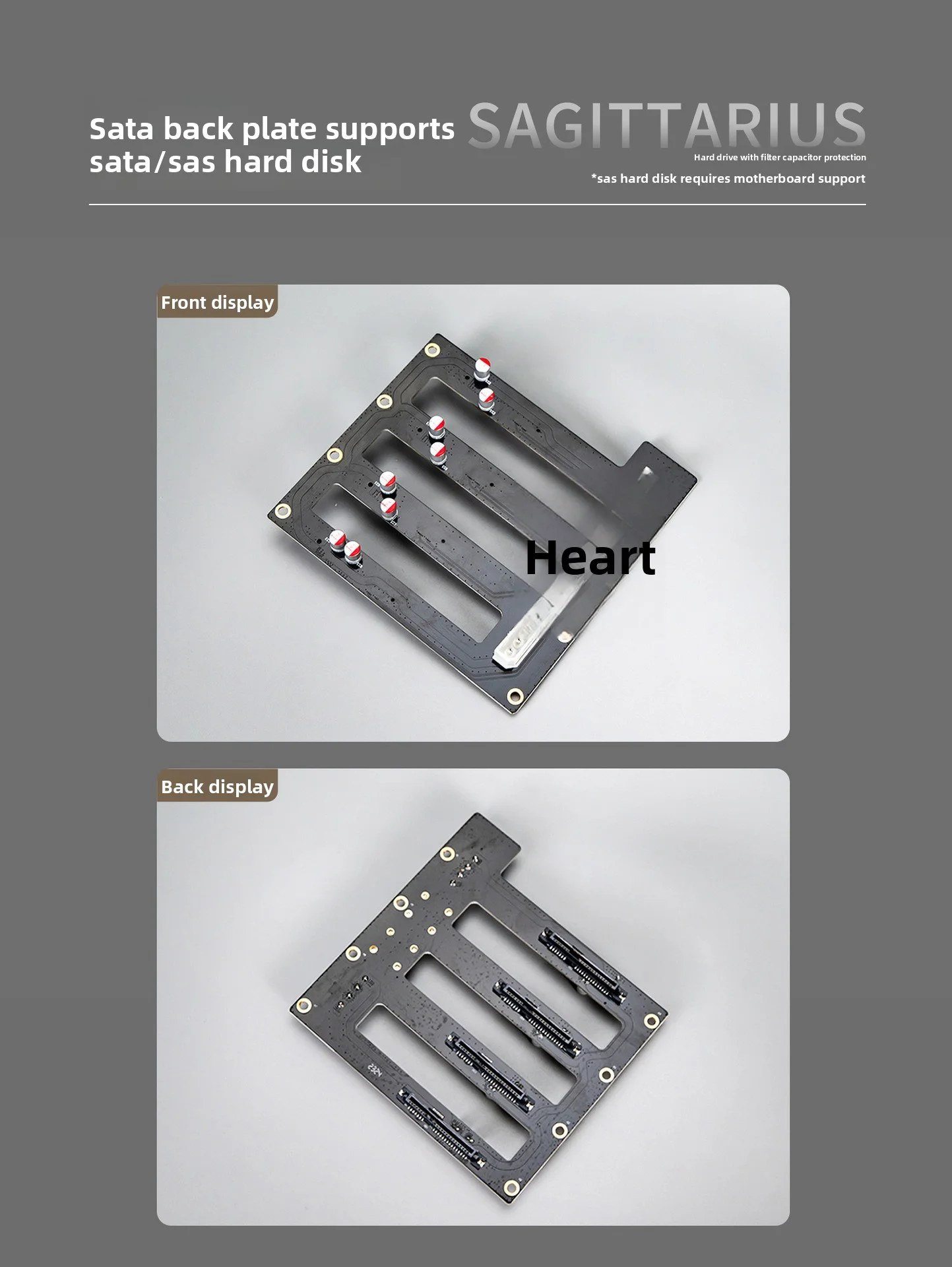

Backplane Specifications: 2 SATA backplanes, each with two large 4D ports and four SATA connectors

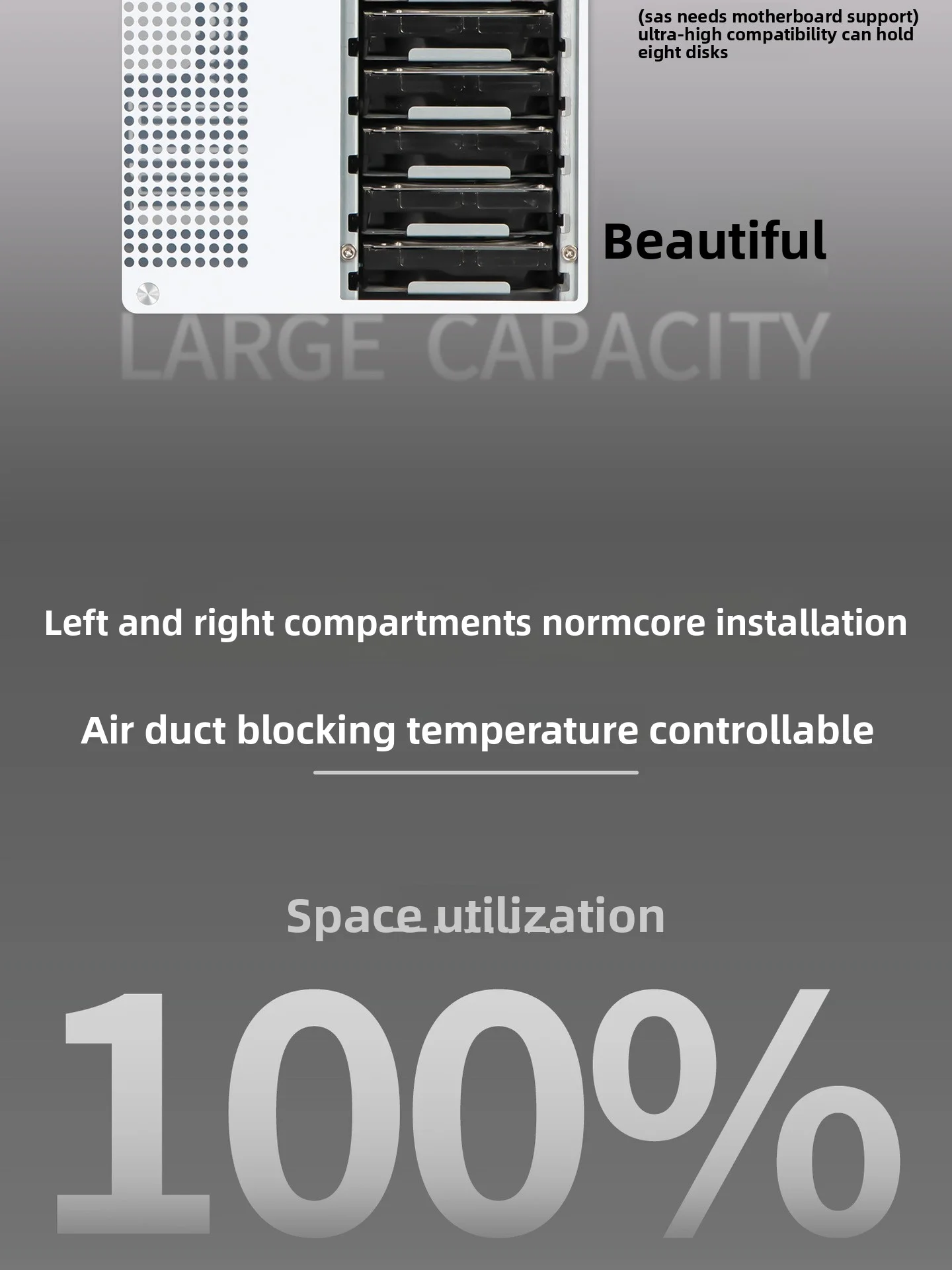

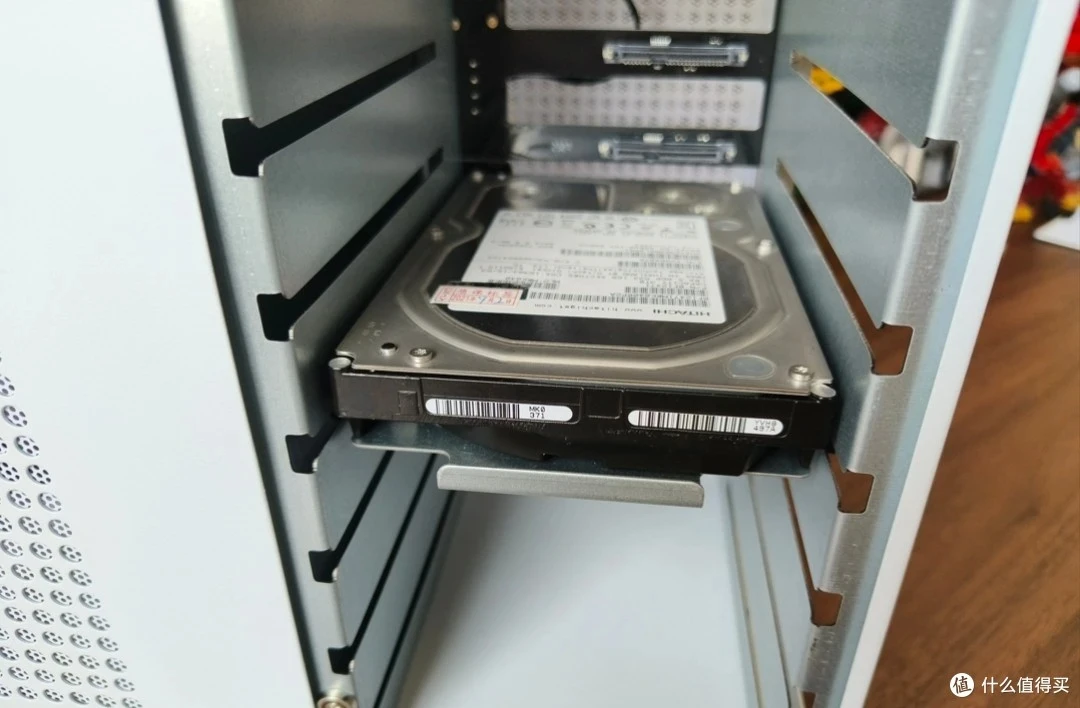

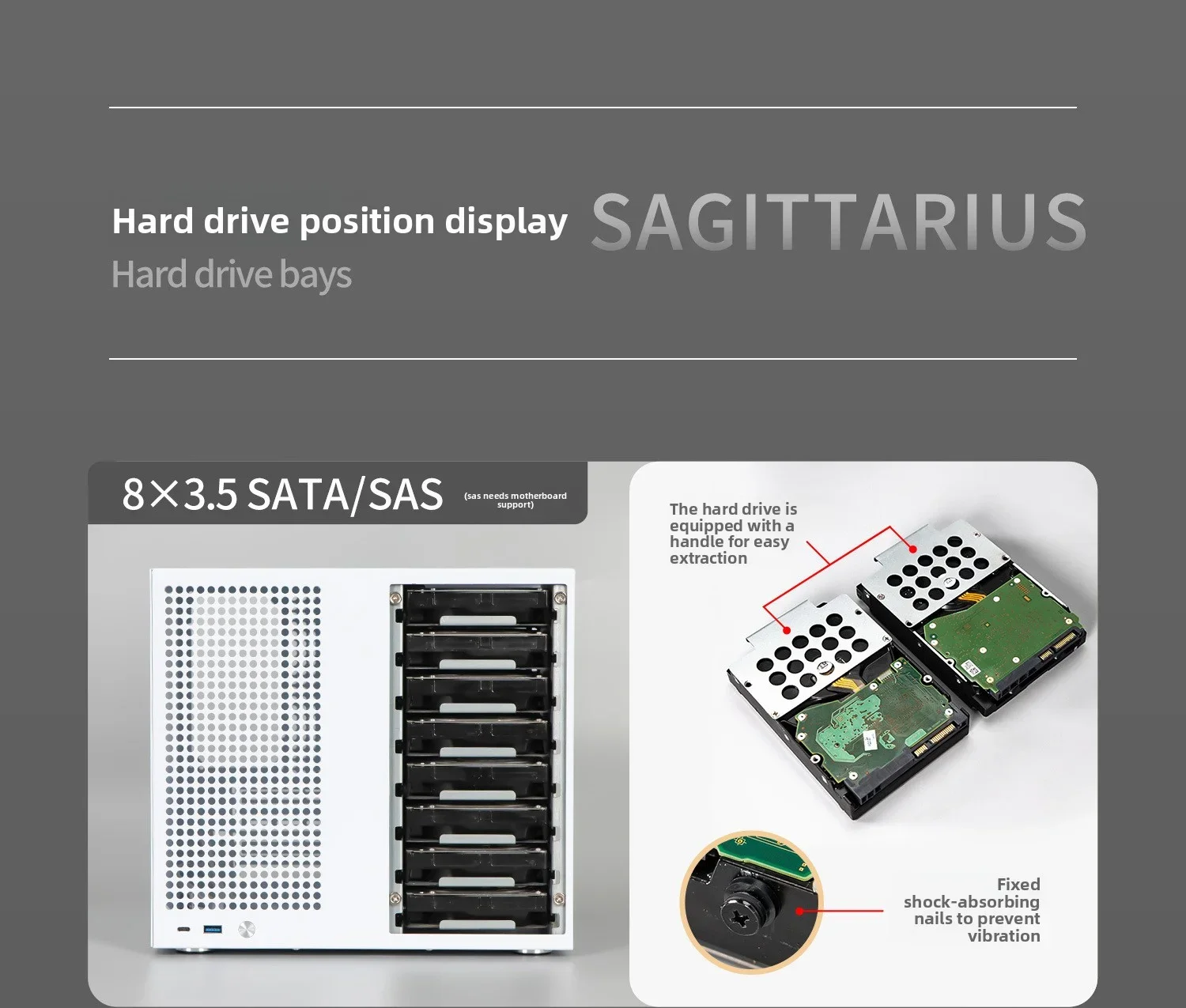

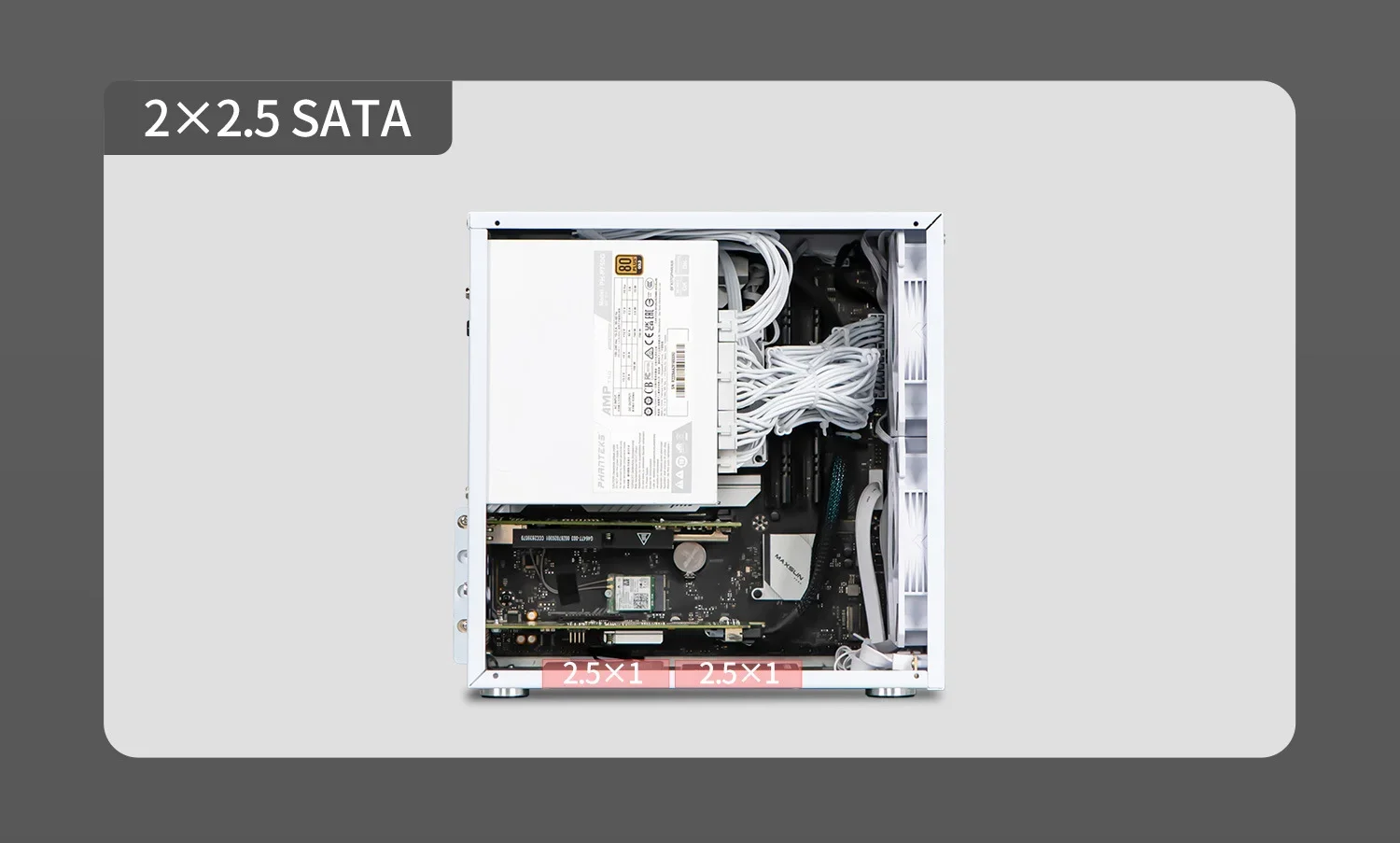

Drive Specifications: 8 3.5-inch hot-swappable drive bays, 2 2.5-inch drive bays

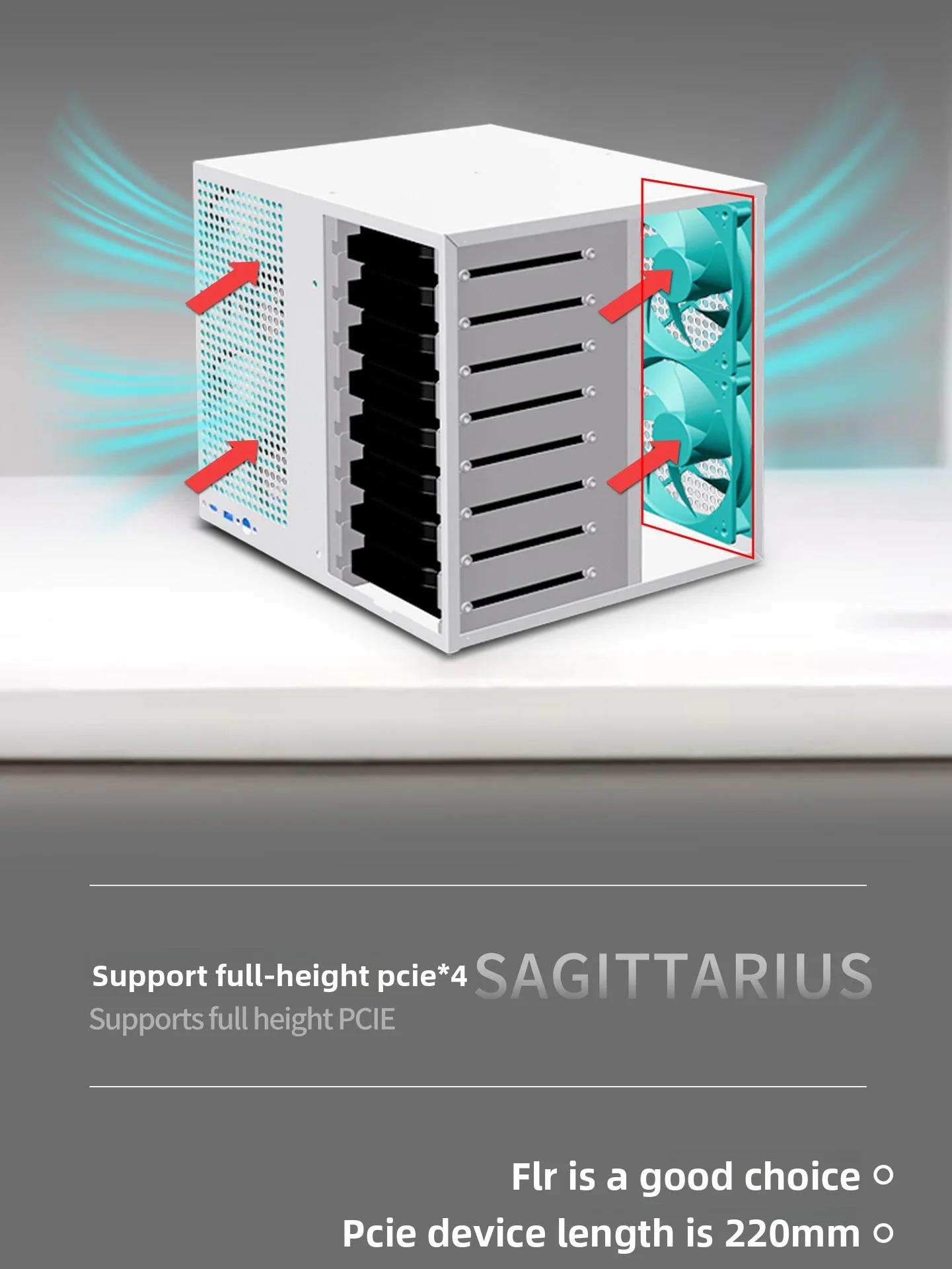

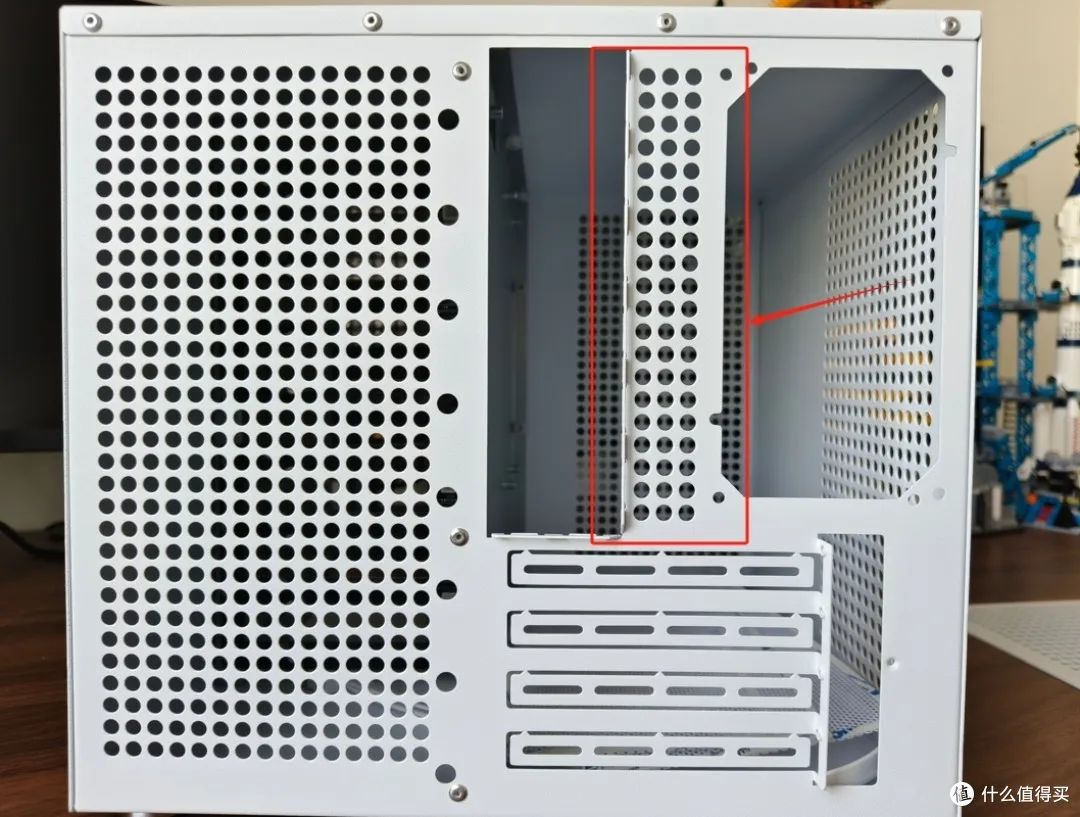

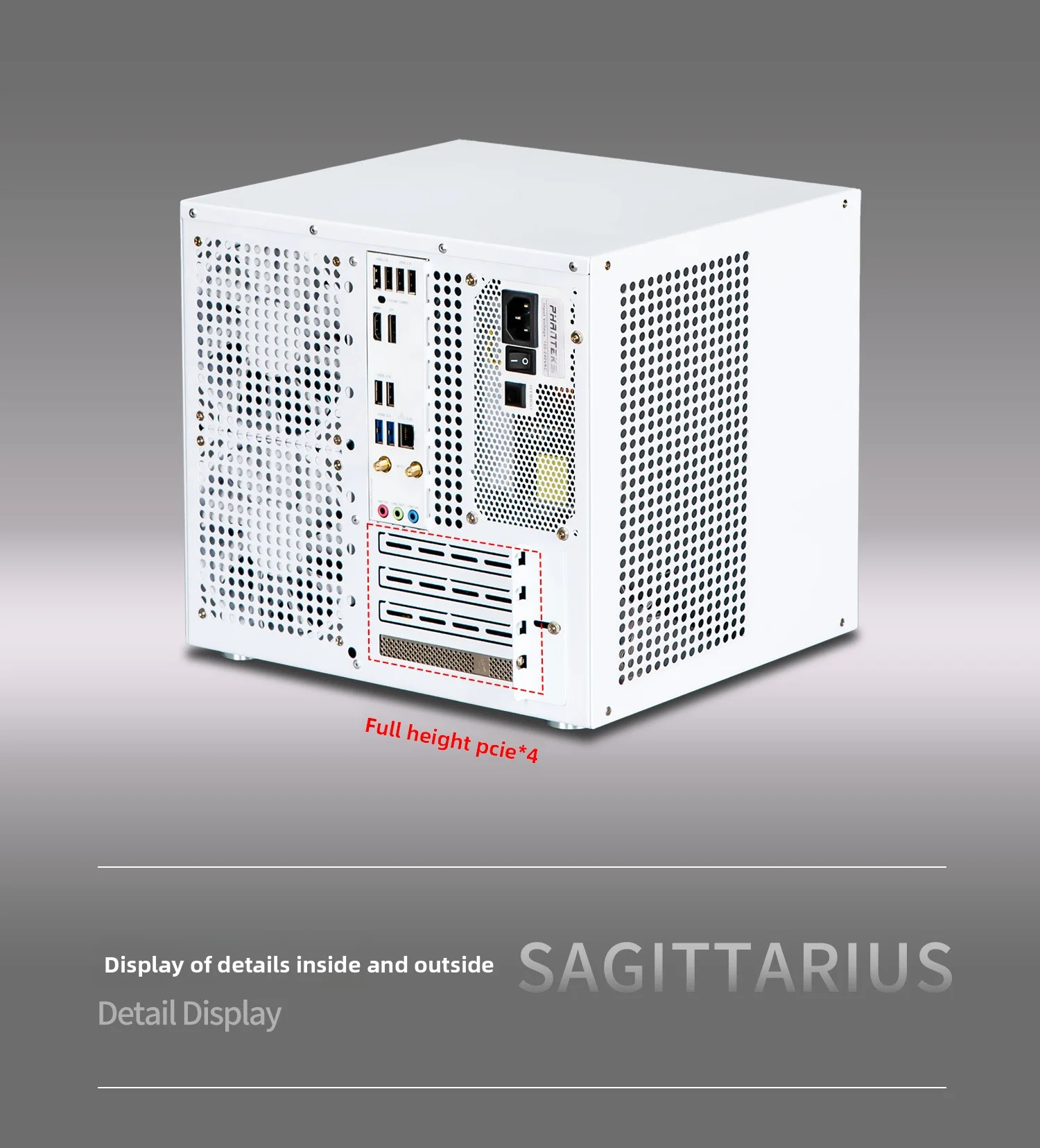

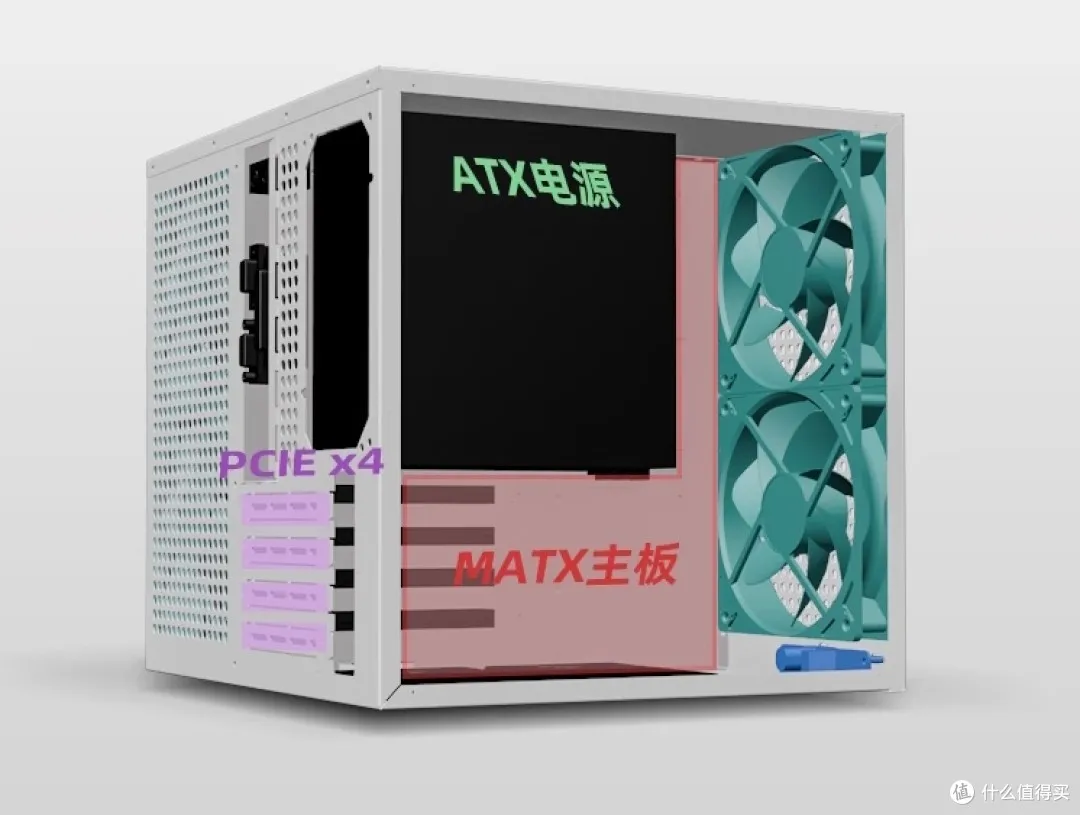

PCIE Expansion: 4 full-height PCIE slots, maximum length 220mm

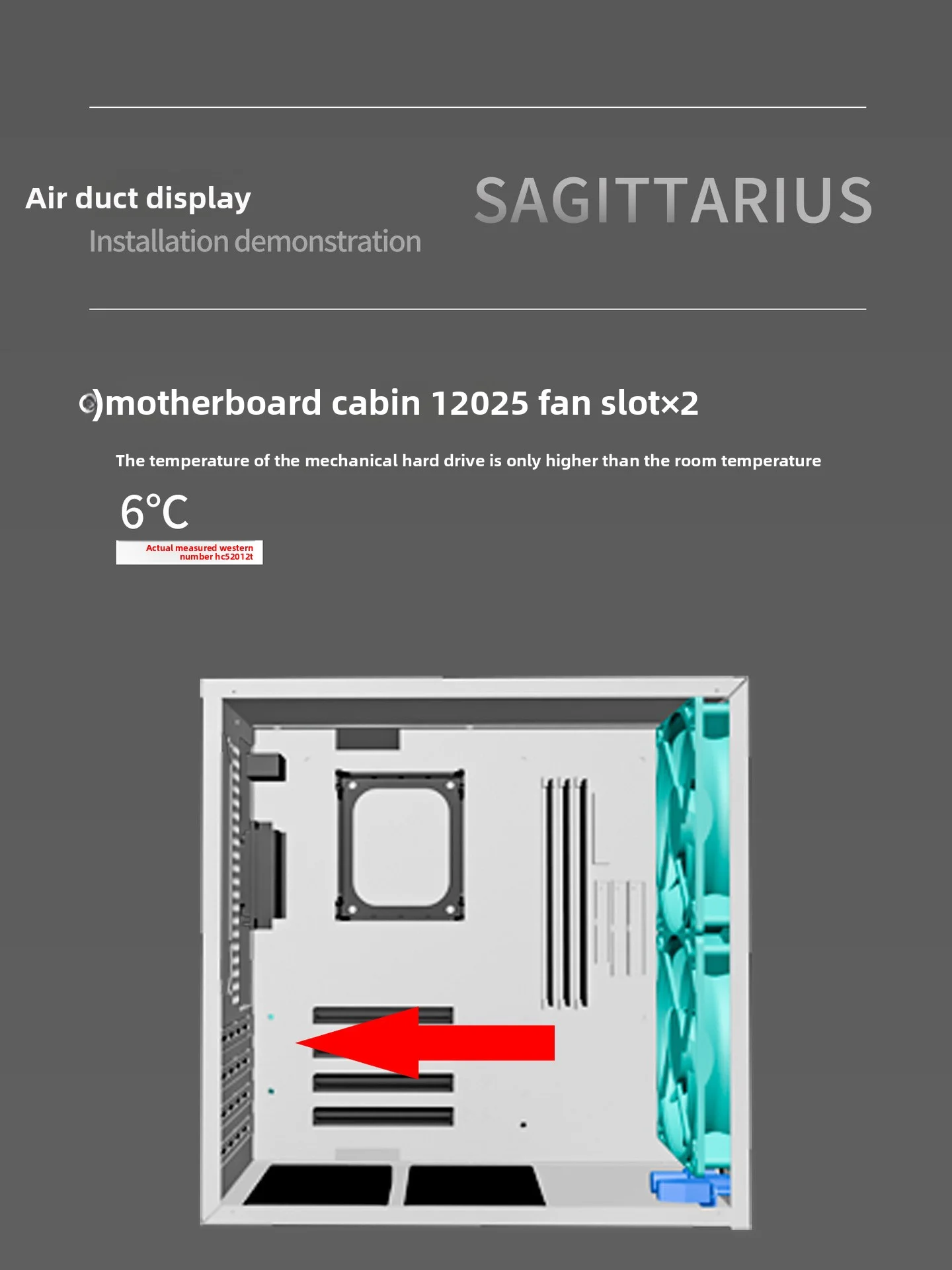

Fan Specifications: 2 hard drive bays: 120x25mm fan bays, 2 motherboard bays: 120x25mm fan bays

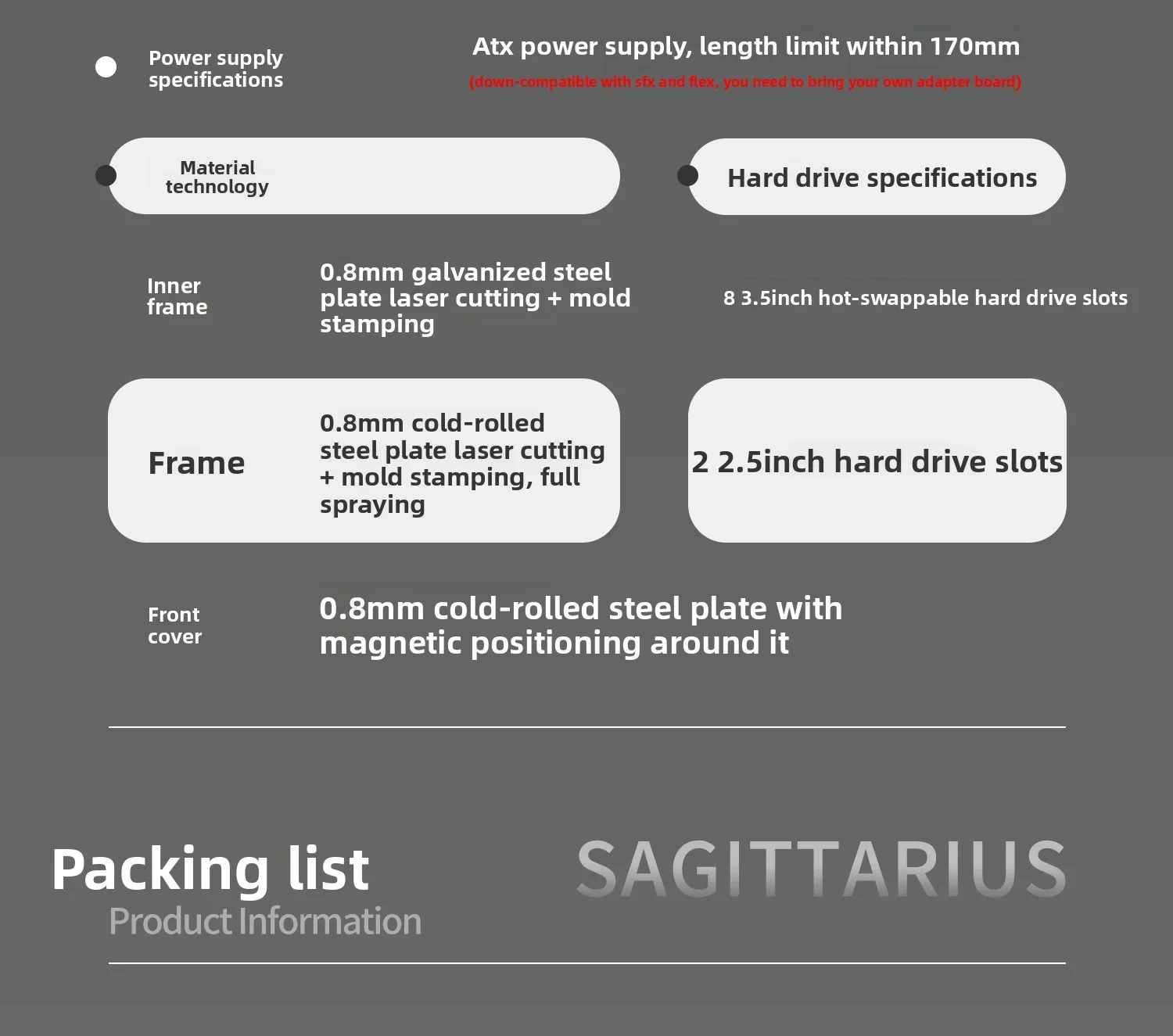

Power Supply Specifications: ATX power supply, maximum length 170mm (backwards compatible with SFX and FLEX; adapter board required)

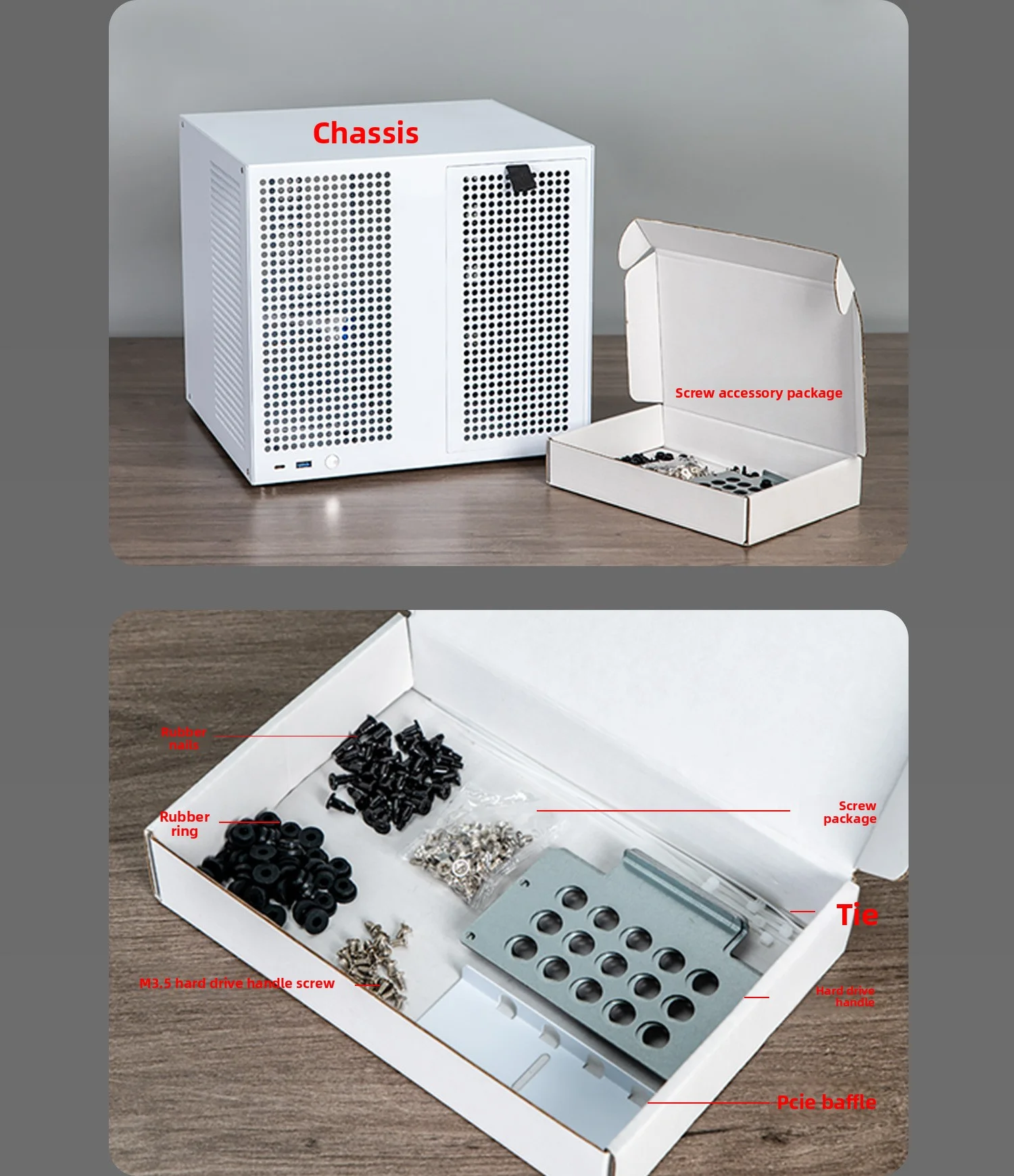

Standard Configurations: 2 SATA backplanes, 4 PCIE windshields, 8 hard drive handles, cable ties and screws
