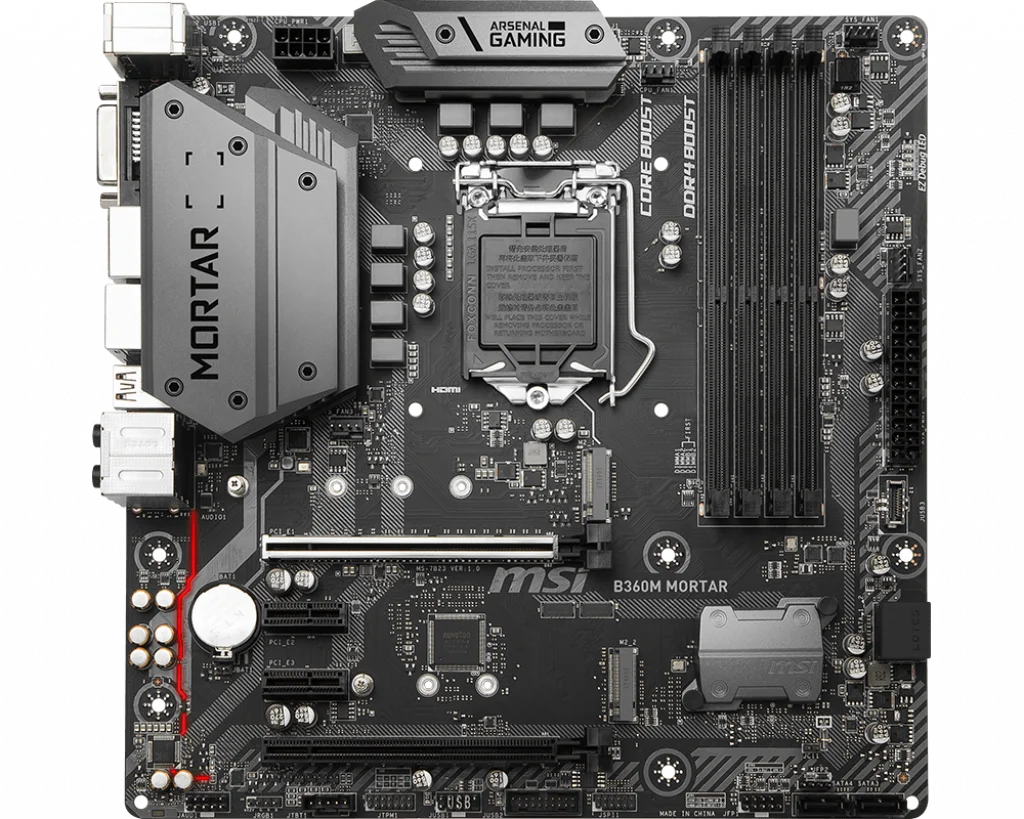

Motherboard MSI B360M MORTAR Micro ATX LGA 1151 Intel B360 DDR4 64GB PCI-E 3.0 M.2 SATA 3.0 Original Desktop Mainboard
新品
$110.00 USD
✓ 安全结账✓ 物流更新✓ 客户支持
Product details
Specifications
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,Displayport,HDMI 1.4,DVI-D
Battery Included: no
Brand Name: MSI
Chipset: Intel B360
Chipset Manufacturer: Intel
High-concerned chemical: none
Maximum Ram Capacity: 32 GB
Number of PCI: 2
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: No
Processor compatibility: 8th Intel Core i5,9th Intel Core i3
RAID Supported: Yes
Socket Type: LGA 1151
Special Features: NONE
Storage Interface Type: SATA,M.2 (NVMe)
Support Memory Type: DDR4
Usage Scenario: Gaming,Audio & Video,Office
With CPU: No
B360M MORTAR parameter
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel B360
Chipset description Using Intel B360 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC892 8-channel audio chip
Network card chip onboard Intel I219-V Gigabit network card
Processor specifications
CPU type 8th generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR4 2666/2400/2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 2×M.2 interface, 4×SATA III interface

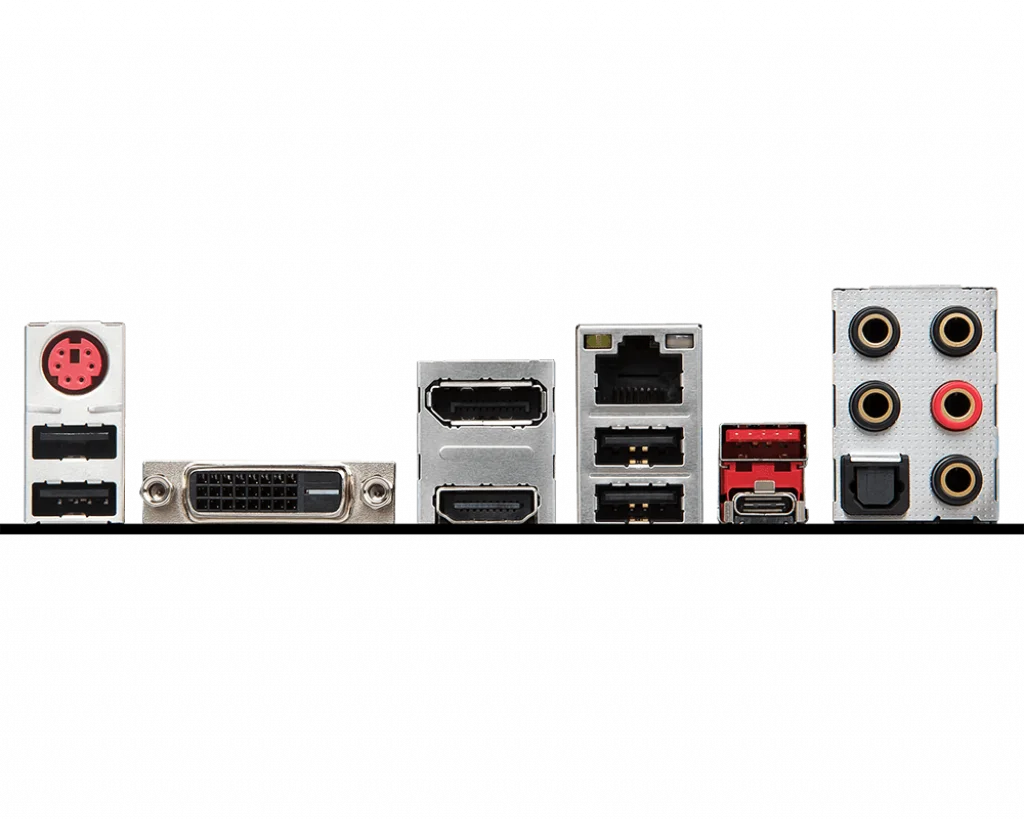

I/O interface
USB interface 1×USB3.1 Gen2 Type-A interface, 2×USB3.1 Gen2 Type-C interface, 2×USB3.1 Gen1 interface (2 built-in), 6×USB2.0 interface (2 built-in +4 backplane)
Video interface 1×DVI interface, 1×HDMI interface, 1×Display Port interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, 5×audio interface, 1×PS/2 general keyboard and mouse interface, 1×optical interface, 1×CPU fan interface, 3×system fan interface, 1×panel audio interface, 2×system panel Interface, 1 × RGB LED light bar 12V interface, 1 × Thunderbolt expansion card interface, 1 × TPM module interface, 1 × chassis opening interface
Board type
Motherboard type Micro ATX type
Dimensions 24.3×24.3cm
