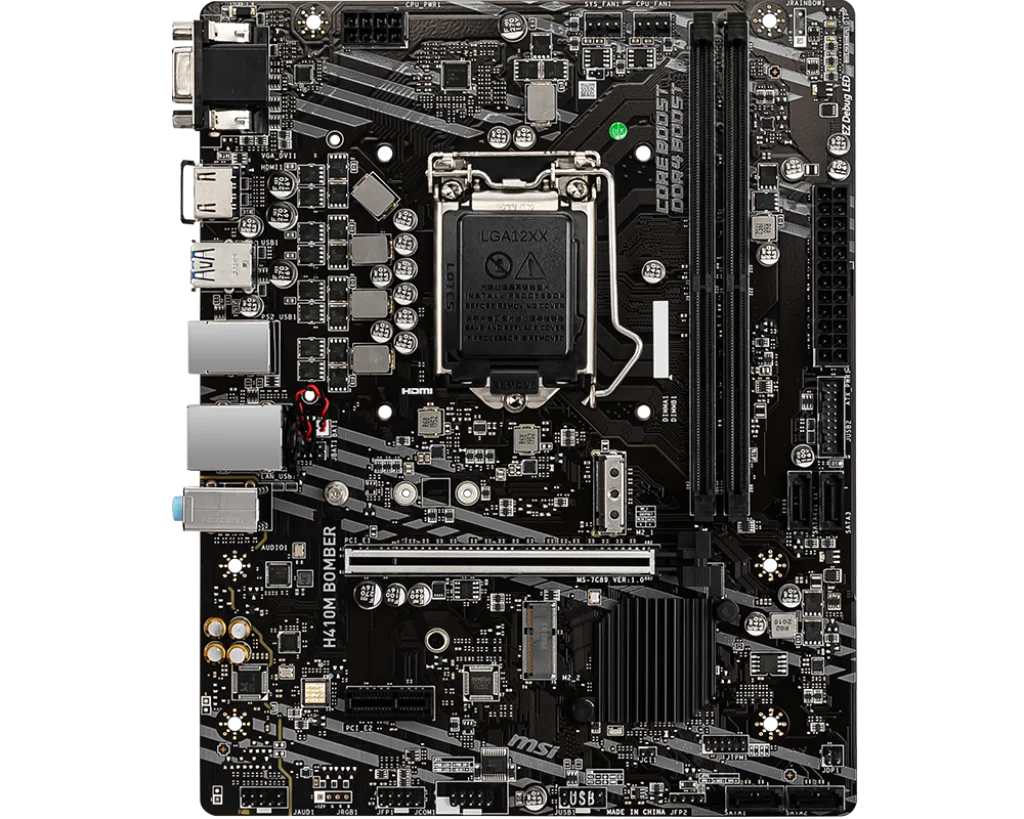

MSI H410M BOMBER Motherboard Intel H410 LGA1200 Micro ATX 2xDDR4 HDMI VGA 1x M.2
新品
$82.00 USD
✓ 安全结账✓ 物流更新✓ 客户支持
Product details
Specifications
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,VGA (D-Sub),HDMI 1.4
Battery Included: no
Brand Name: MSI
Chipset: H510
Chipset Manufacturer: Intel
High-concerned chemical: none
Maximum Ram Capacity: 64 GB
Number of PCI: 1
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 4.0
Package: No
Processor compatibility: 10th Intel Core i3,11th Intel Core i9,11th Intel Core i7,11th Intel Core i3,10th Intel Core i5,10th Intel Core i9,11th Intel Core i5
RAID Supported: no
Socket Type: LGA1200
Special Features: NONE
Storage Interface Type: SATA,M.2 (NVMe)
Support Memory Type: DDR4
Usage Scenario: Gaming,Audio & Video,Office
With CPU: No
Processor
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2
Please go to www.intel.com for more compatibility information.Onboard graphics output are disabled when using F SKU processors.
See supported processors
Chipset
Intel® H410 Chipset
Memory
2x DDR4 memory slots, support up to 64GB1
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MH
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory.
See supported memory
Expansion Slot
1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
1x M.2 slot with E key for WiFi module only
Onboard Graphics
1x VGA port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
Maximum shared memory is 1GB
Storage
Intel® H410 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
USB
Intel® H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
Audio
Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Intel® I219V Gigabit LAN controller
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED

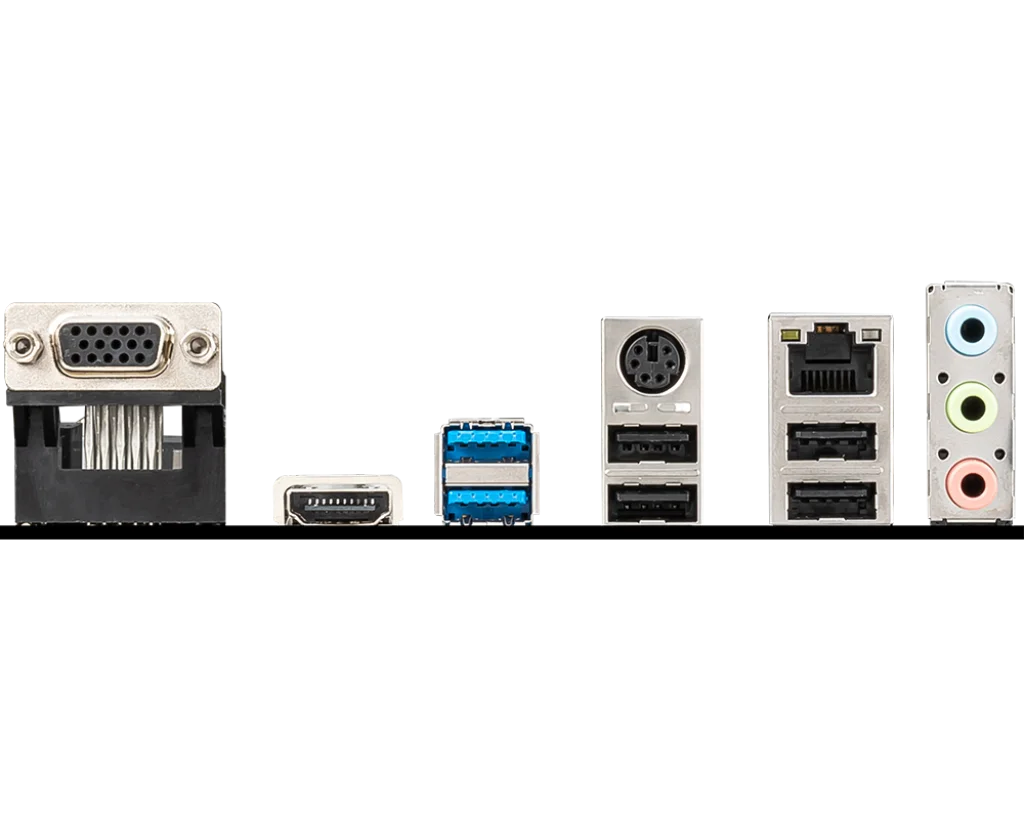

Back panel ports
Keyboard / Mouse
LAN
VGA
HDMI™
USB 3.2 Gen 1 5Gbps Type-A
USB 2.0
USB 2.0
Audio Connectors
MSI Z490-A PRO back panel ports
Dimensions
Mirco-ATX Form Factor
9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
