FNIRSI LCR-ST1 Smart Tweezer LCR SMD ESR Mini Tester Resistance Capacitance Inductance Continuity Diode Test Measurement Tools
New
SKU: 14:10#LCR-ST1-Bag;200007763:203372089
In stock
$68.00
✓ Secure checkout✓ Shipping updates✓ Customer support
✓
Product details
Specifications
SPECIFICATIONSAC Voltage: 0Battery Included: YesBrand Name: FNIRSICertification: CEDC Voltage: 0DIY Supplies: ElectricalDisplay Type: Digital DisplayFNIRSI Model: LCR-ST1High-concerned chemical: noneMeasuring Capacitance Range: 1mF-22mF/ 1uF-1mF/ 1nF-1uF/ 1pF-Measuring Inductance Range: 1H-10H/1mH-1H/10uH-1mH/1uH-10uHMeasuring Resistance Range: 1MΩ-10MΩ/ 1KΩ-1MΩ/ 1Ω-1KΩ/ 10mΩ-Model Number: LCR-ST1Operating Mode: Auto RangeOperating Temperature: 0 - 40 ℃Origin: Mainland ChinaSemi-finishedproduct: No

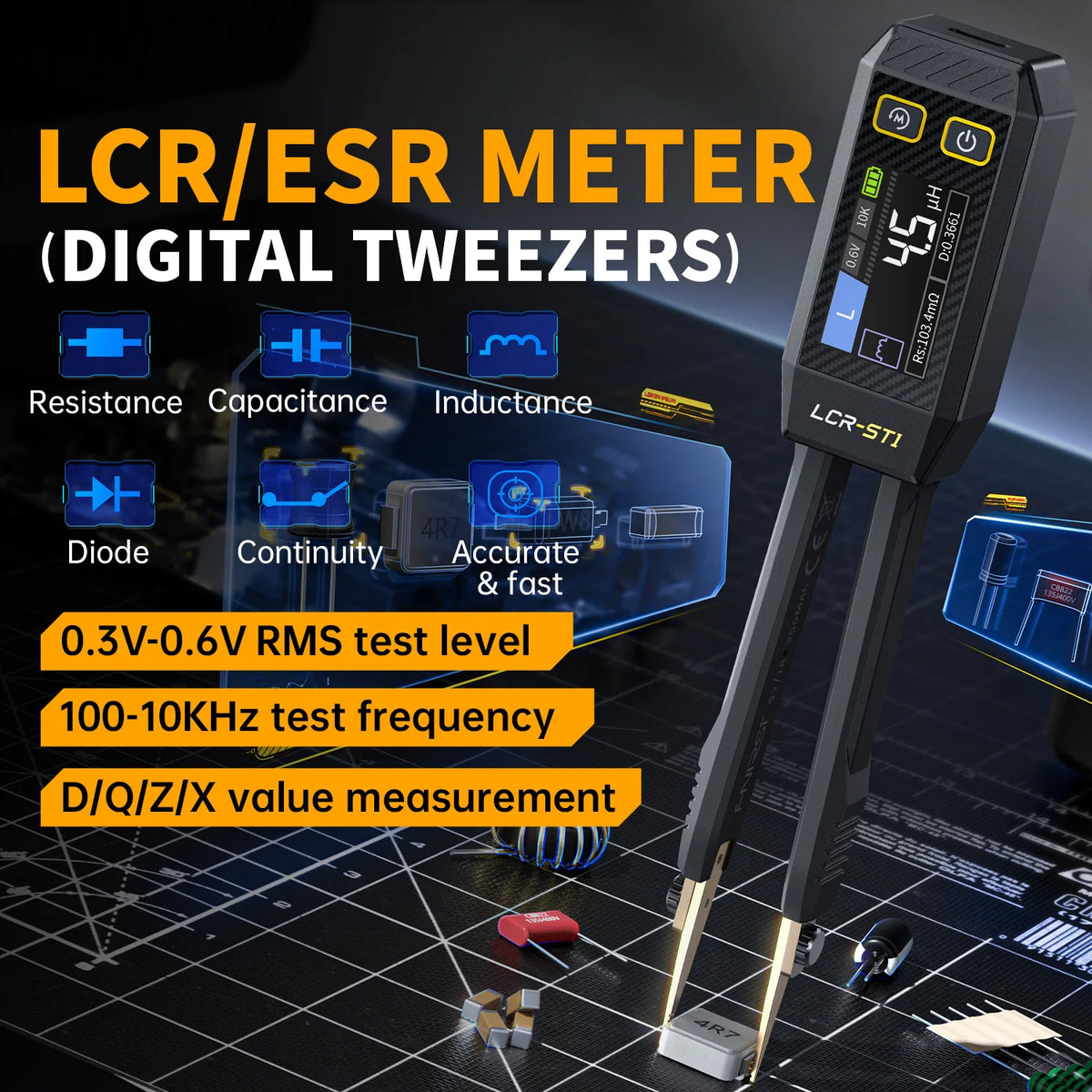

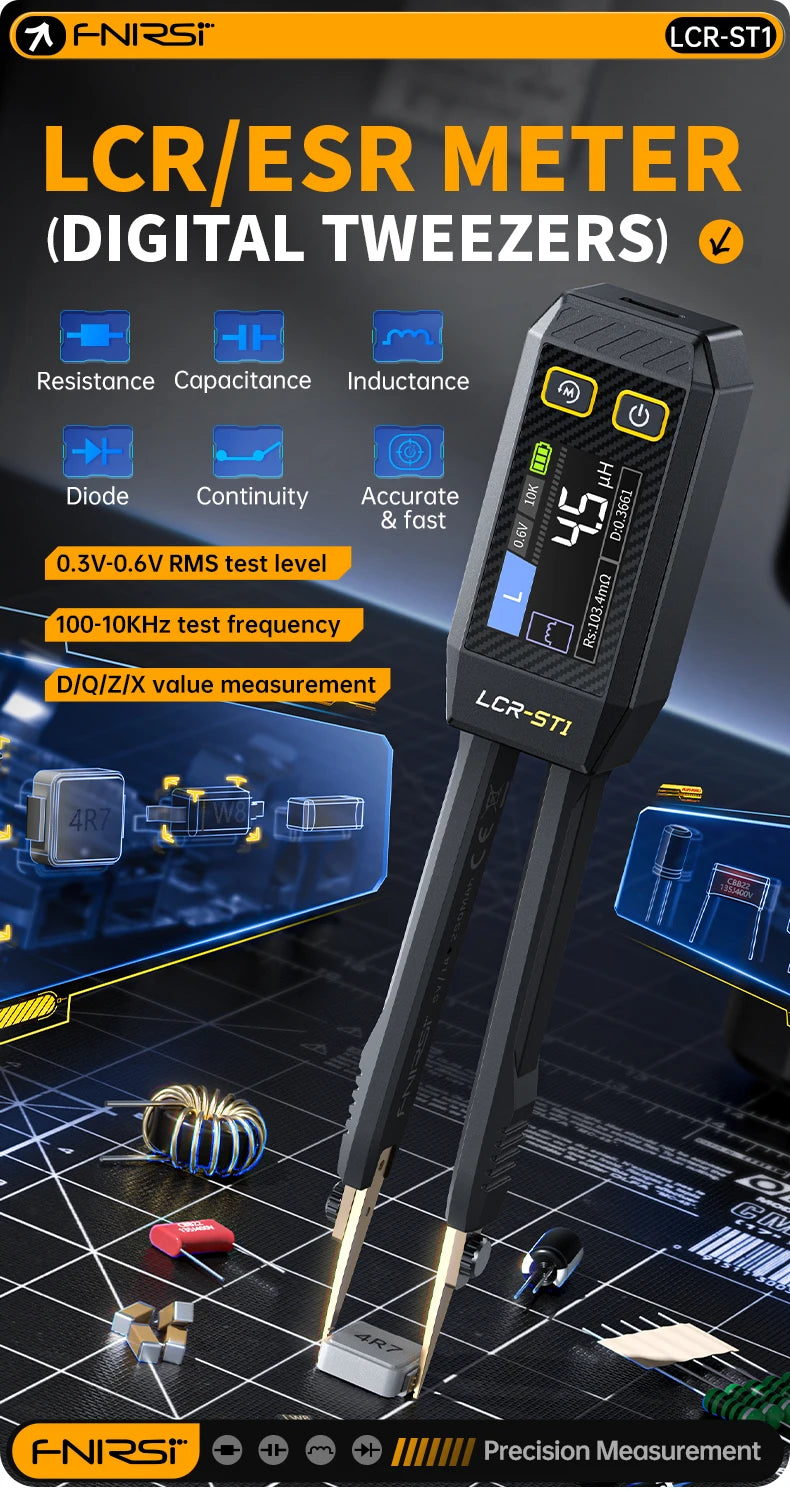

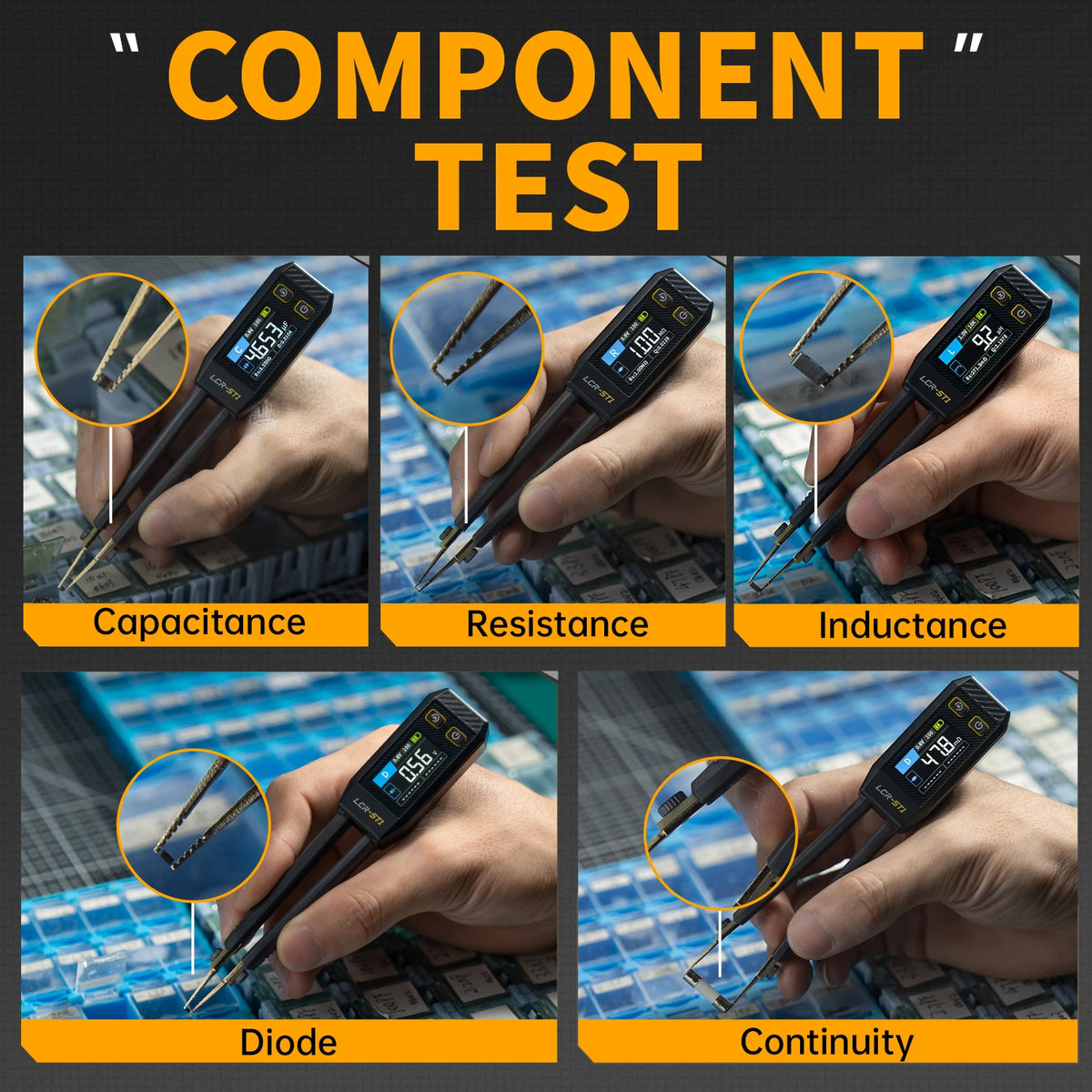

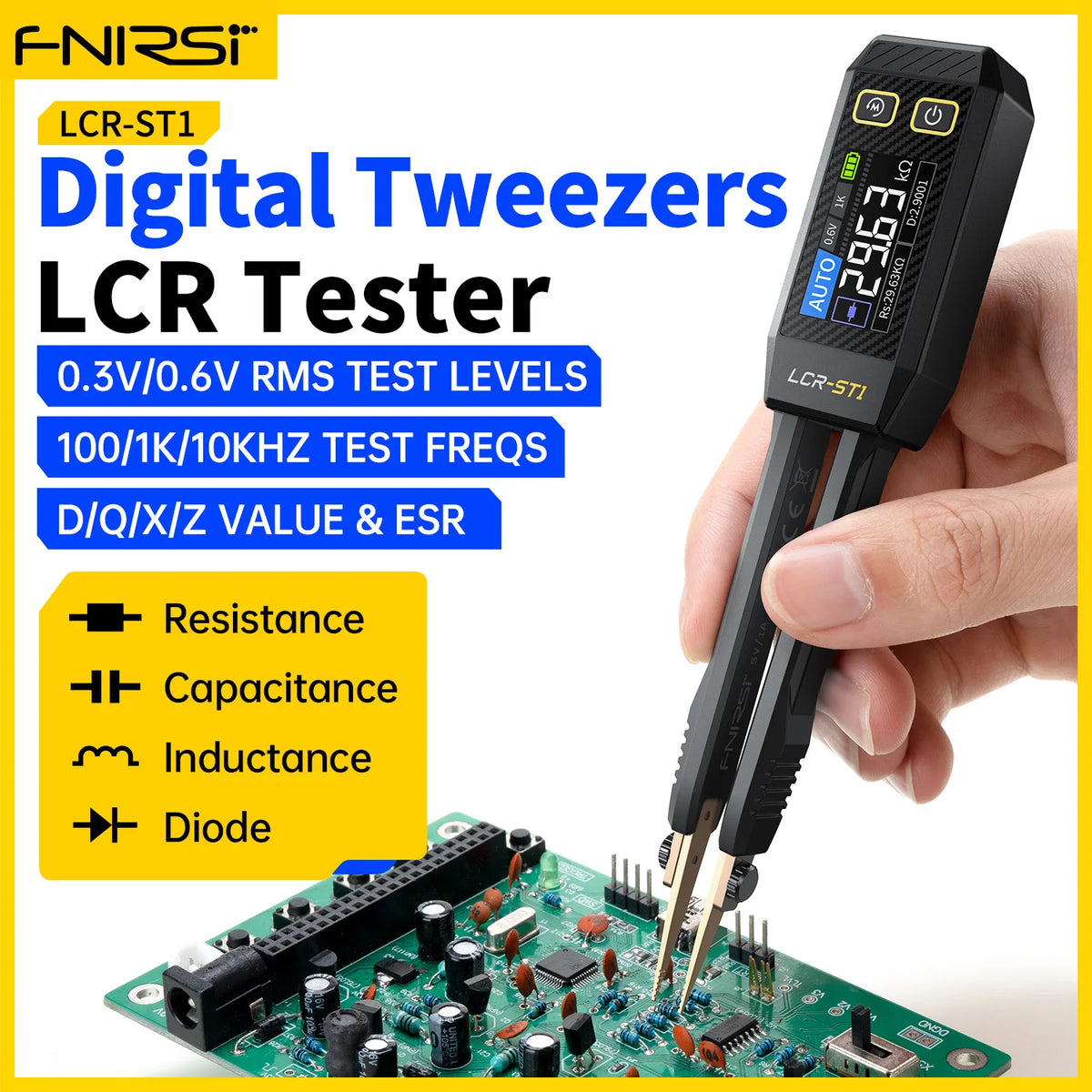

The LCR-ST1, our company's latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, inductance, diodes and Continuity.
This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels
The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.
Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don't miss out on this excellent tool that combines functionality and portability!
1.Product Model: LCR-ST1
2.Capacitance range: 1pF-22mF
3.Inductance range: 1μh-10H
4.Resistance range: 10mΩ-10MΩ
5.Diode: On voltage 0.7V

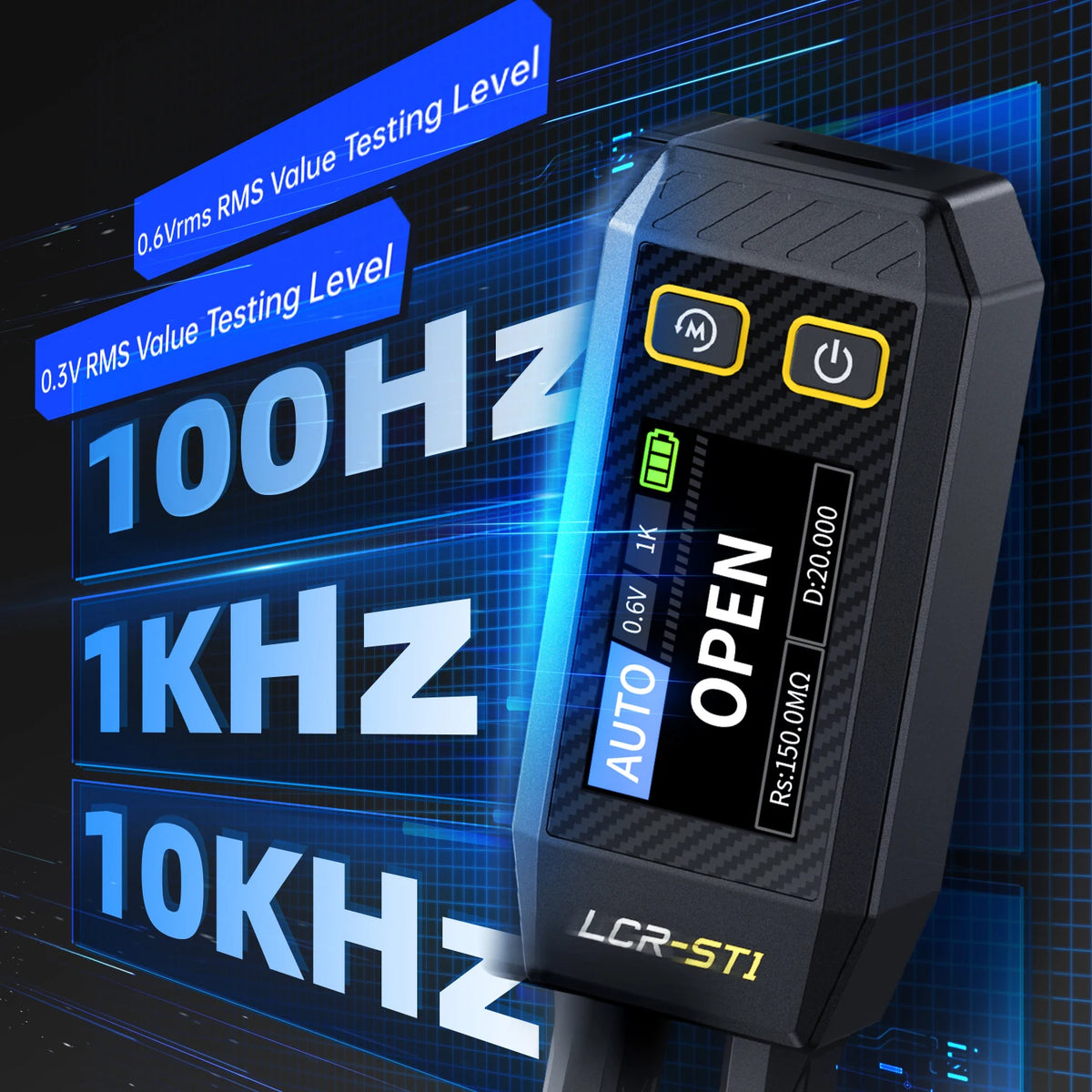

6.Frequency test: 100Hz, 1kHz, 10KHz
7.Level test: 0.3V, 0.6V RMS

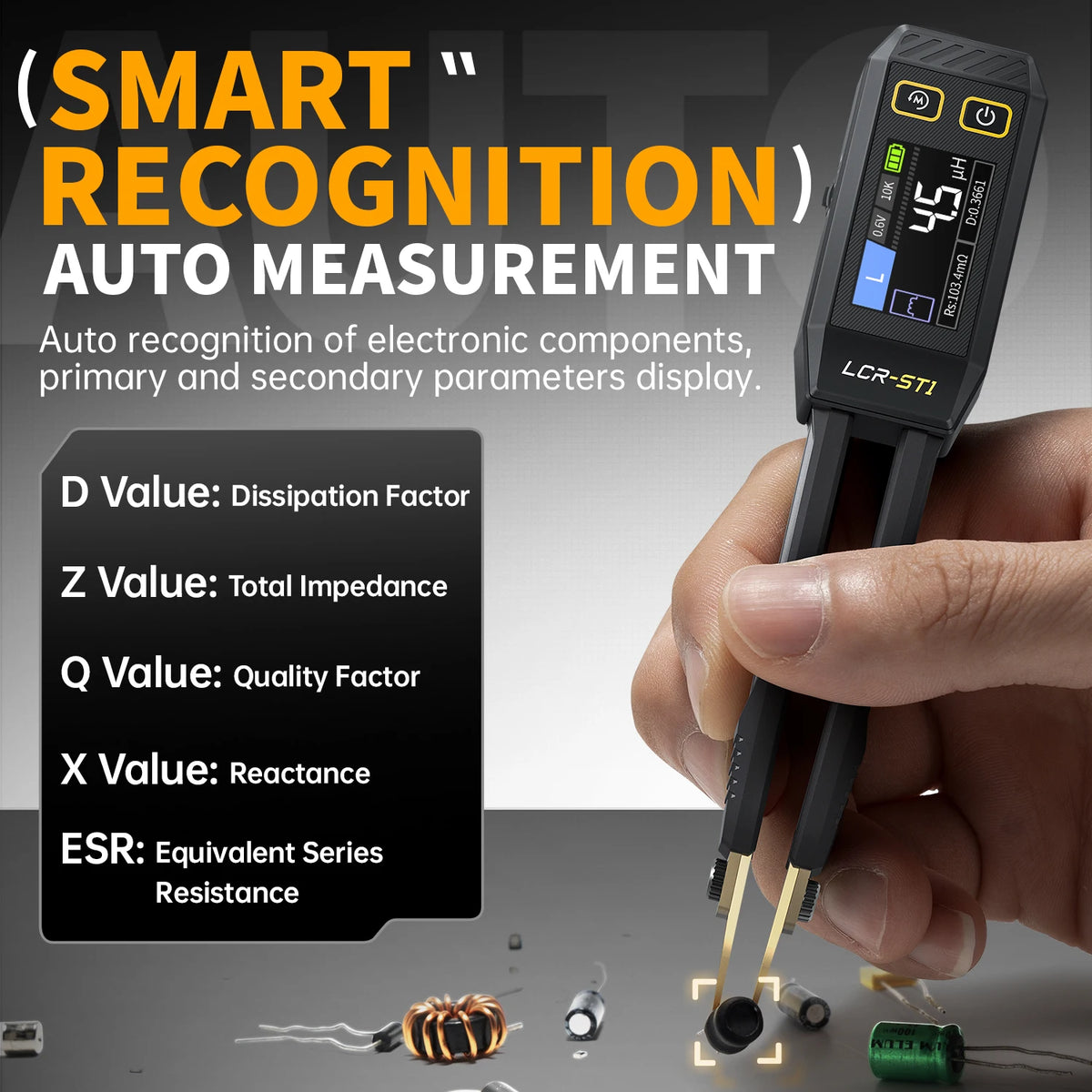

8.Parameter display: ESR, D value, Q value, Z value, X value
9.Display: 1.14'' color screen
10.Charging Interface: Type-C, 5V/A
11.Power Supply: 250mAh lithium battery
12.Auto recognition measurement: Support

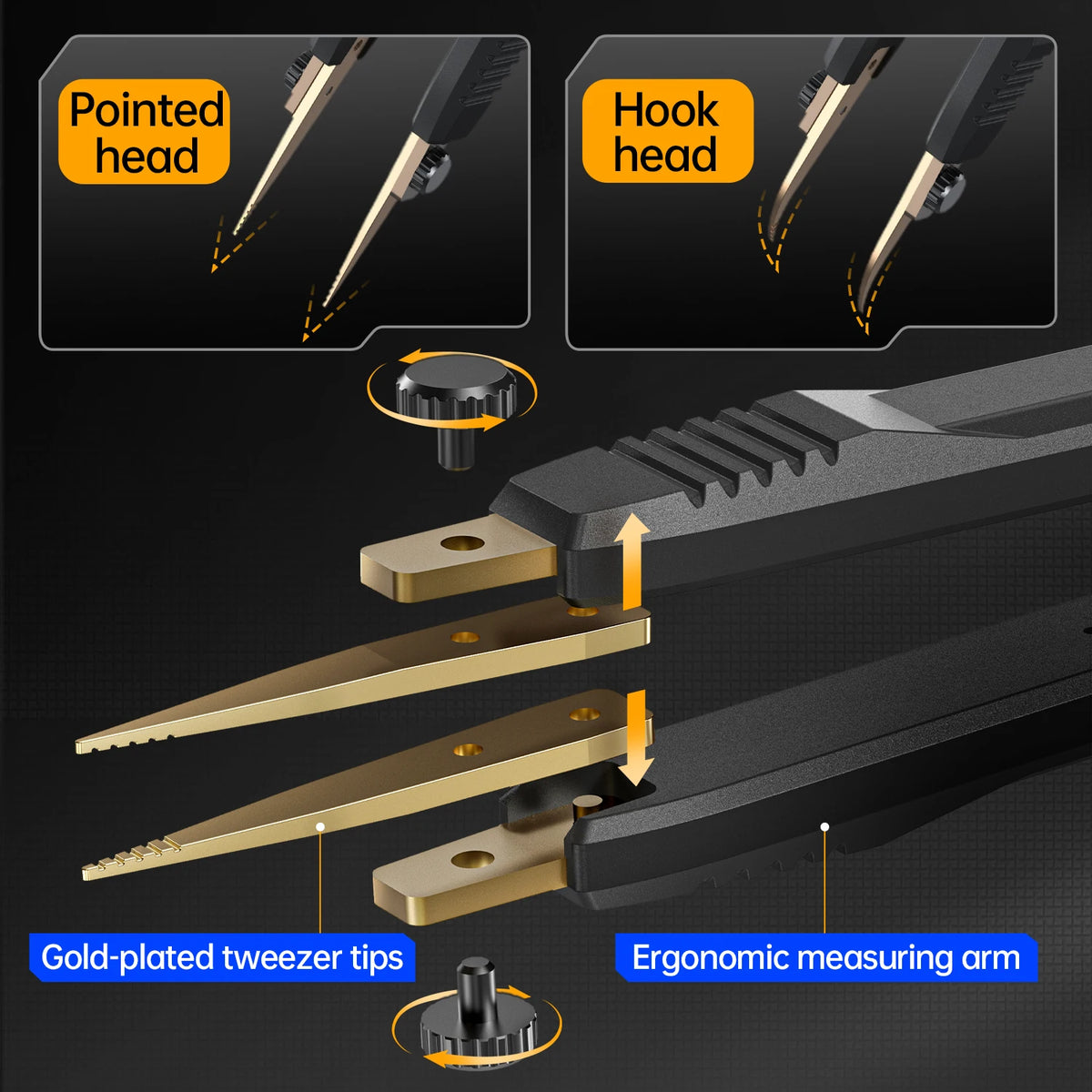

13.Replaceable tweezer head: Support
14.Auto shutdown: Support
15.Data hold: Support
16.History record: Connect to PC to view and export
17.Language: Chinese, English
18.Size: 28×19×150mm
19.Weight: 41g

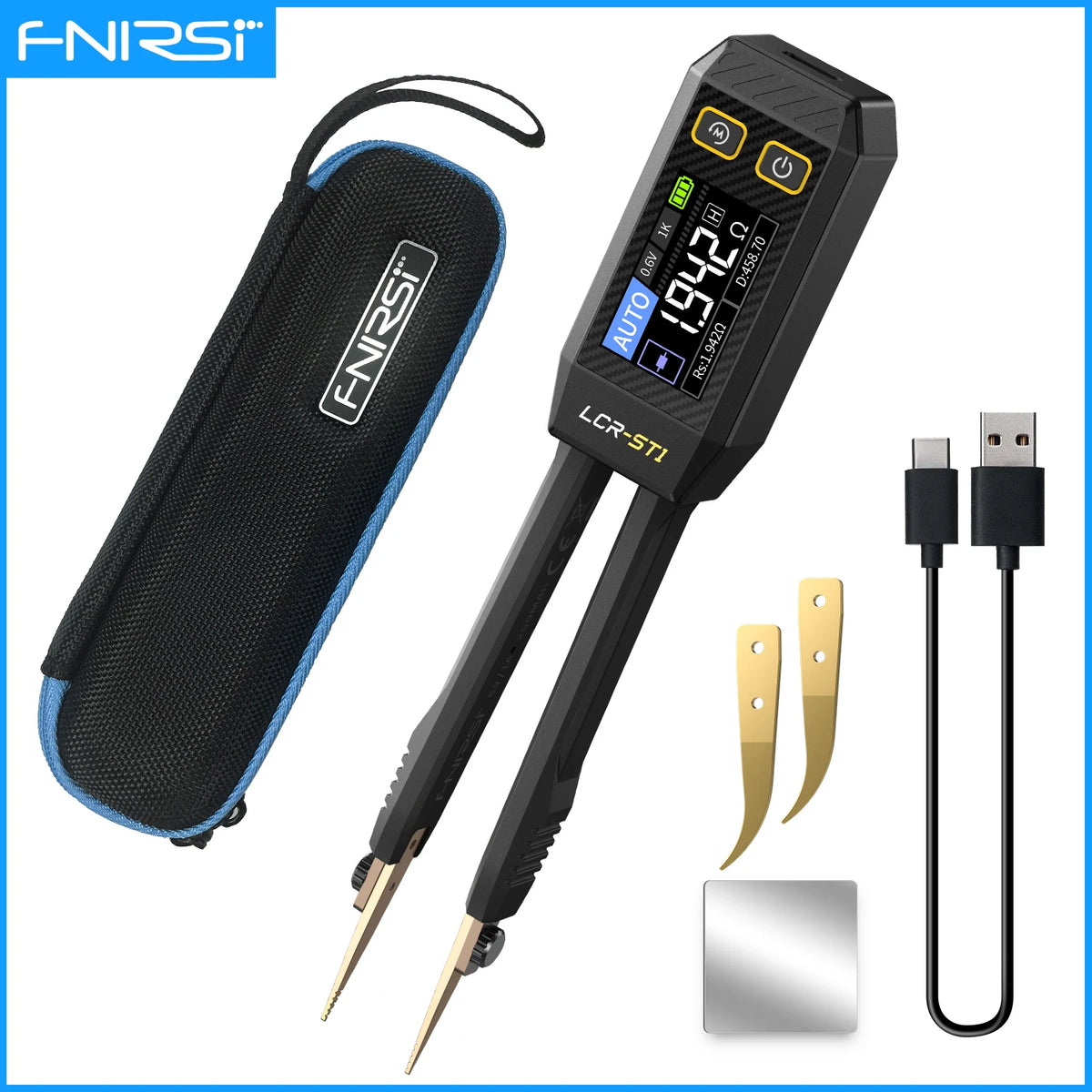

1. LCR-ST1 smart tweezers
2. Pointed head (one pair) + Hook head (one pair)
3. Storage bag
4. Magnetic patch
5. USB data cable
6. User manual
