SPECIFICATIONS

AC Current: NONE

AC Voltage: 1500V

Battery Included: Yes

Brand Name: BTMETER

DC Current: NONE

DC Voltage: 1500V

DIY Supplies: Electrical

Data Record: No

Dimensions: 189x89x55 mm

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Measuring Capacitance Range: 10nF-100mF

Measuring Inductance Range: NONE

Measuring Resistance Range: 600Ω-60MΩ

Model Number: SK505B

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

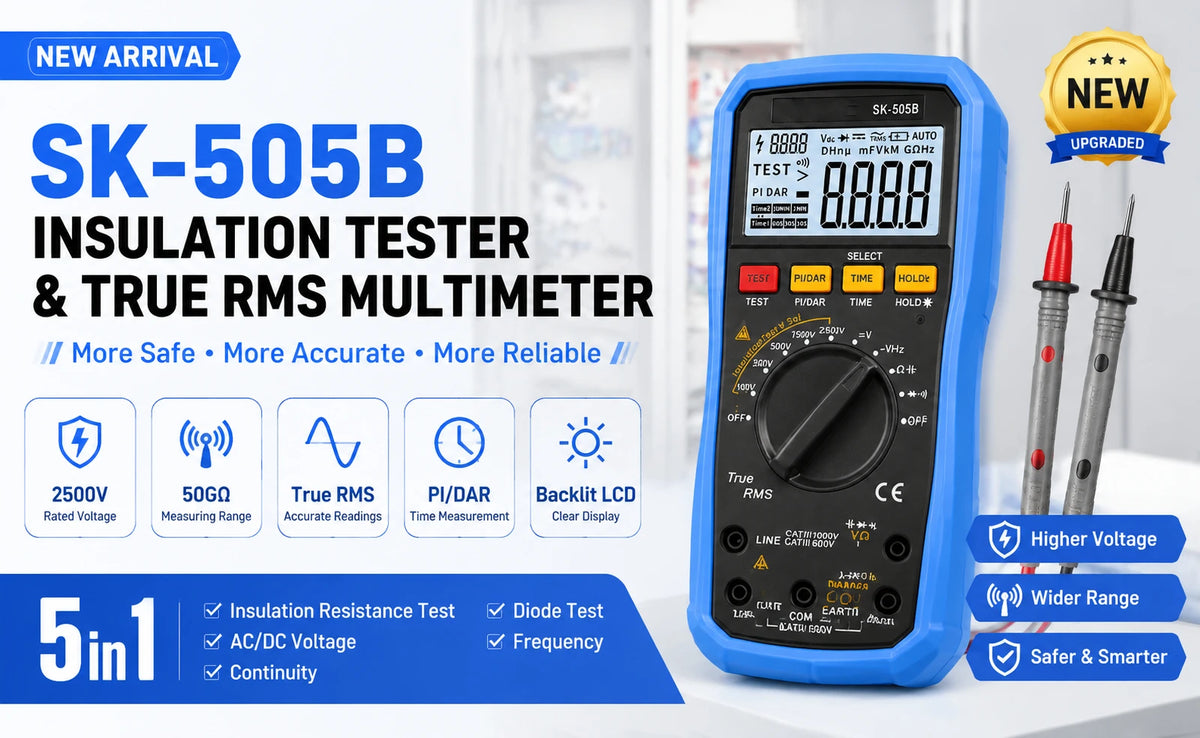

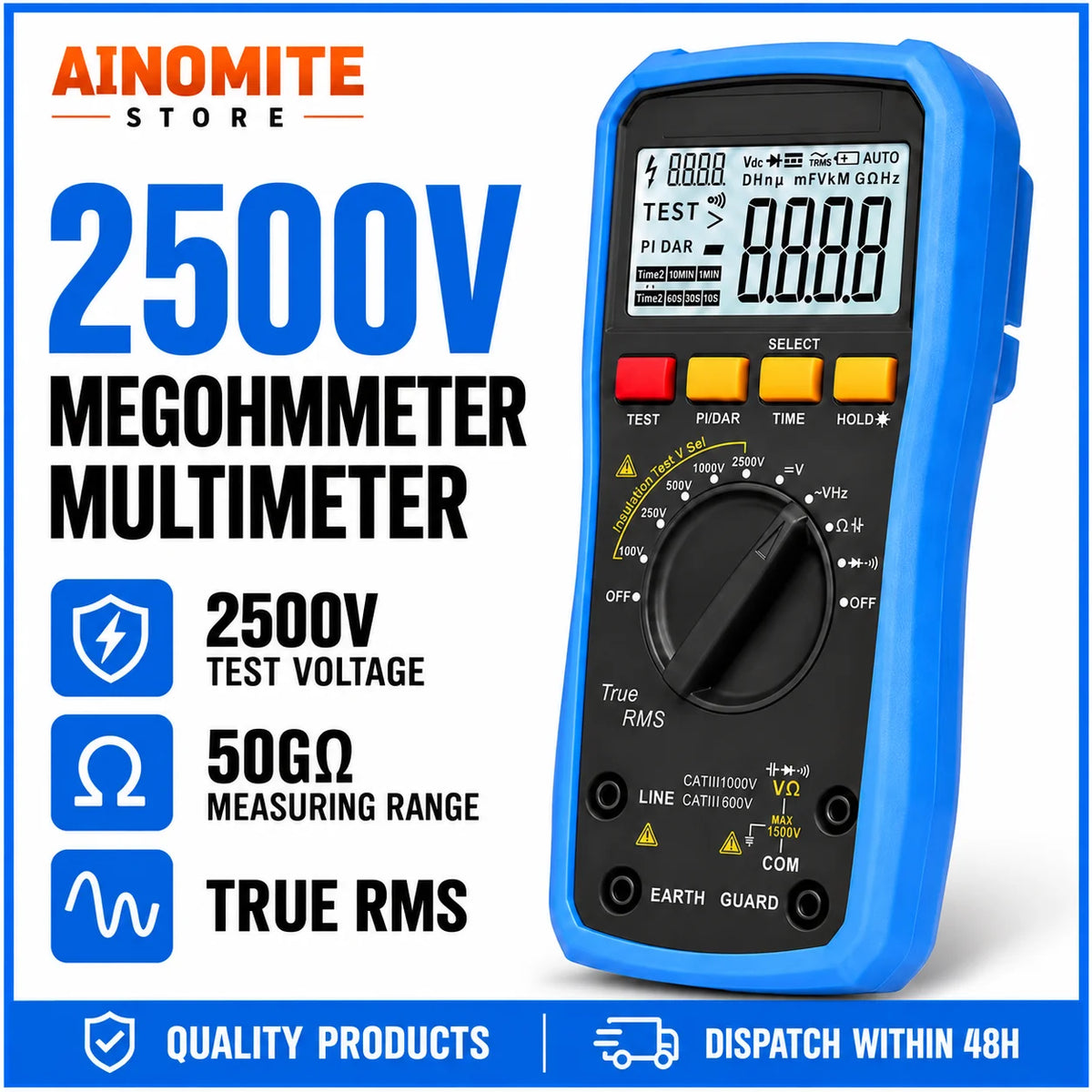

New Upgrade SK505B 2500V Digital Megohmmeter Insulation Resistance Tester, 50GΩ True RMS Multimeter Voltmeter with PI/DAR

1. [MULTIFUNCTIONal USE] Ideal for residential, commercial, and light industrial environments.

2. [EASY TO CARRY] Comes with a storage bag for portability and organization.

3. [EASY TO OPERATE] Simple instructions make it user-friendly for all skill levels.

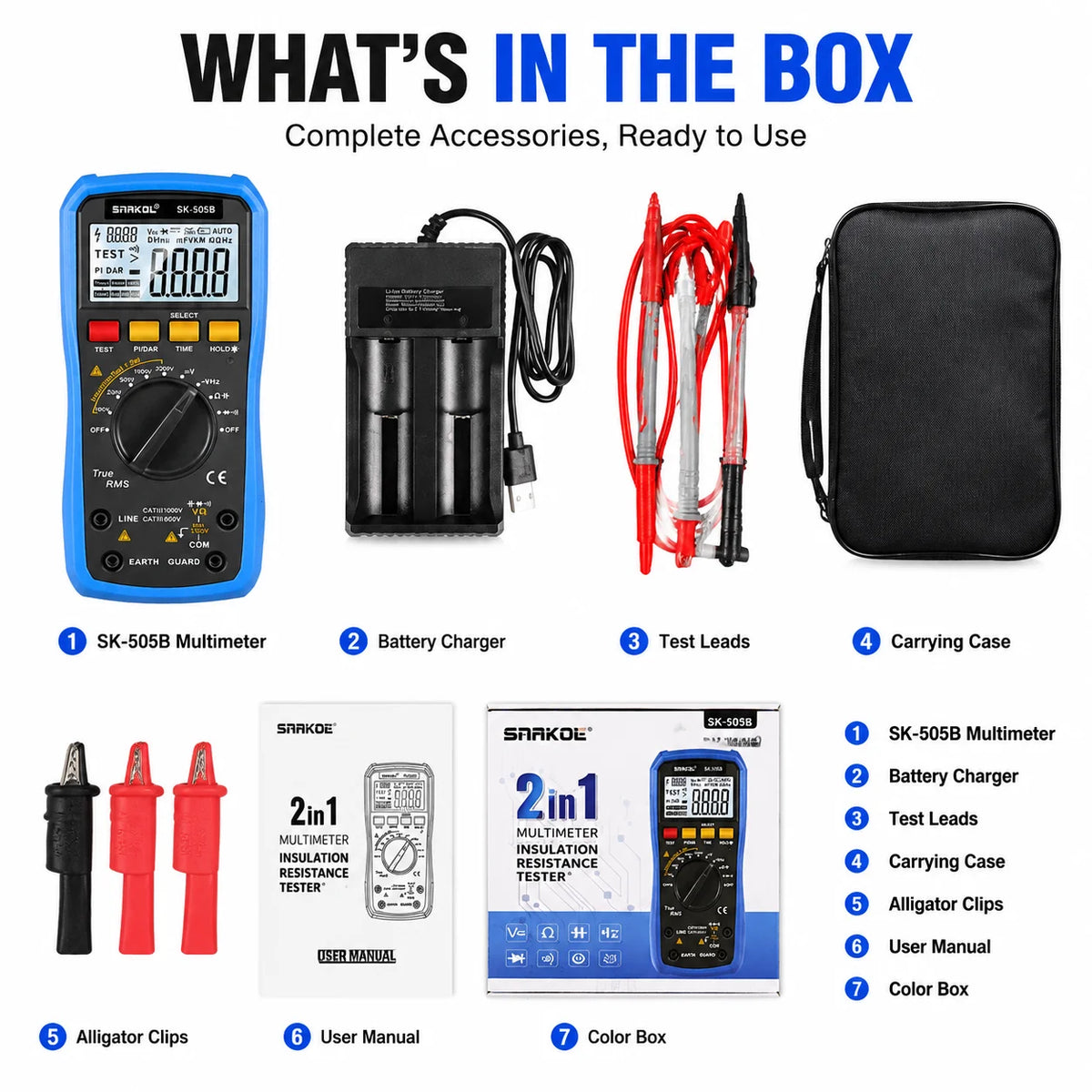

4. [MULTIPLE ACCESSORIES] Includes test leads, clips, and charger for complete functionality.

5. [VERSATILE APPLICATIONS] Suitable for electricians, automotive repair, and more.

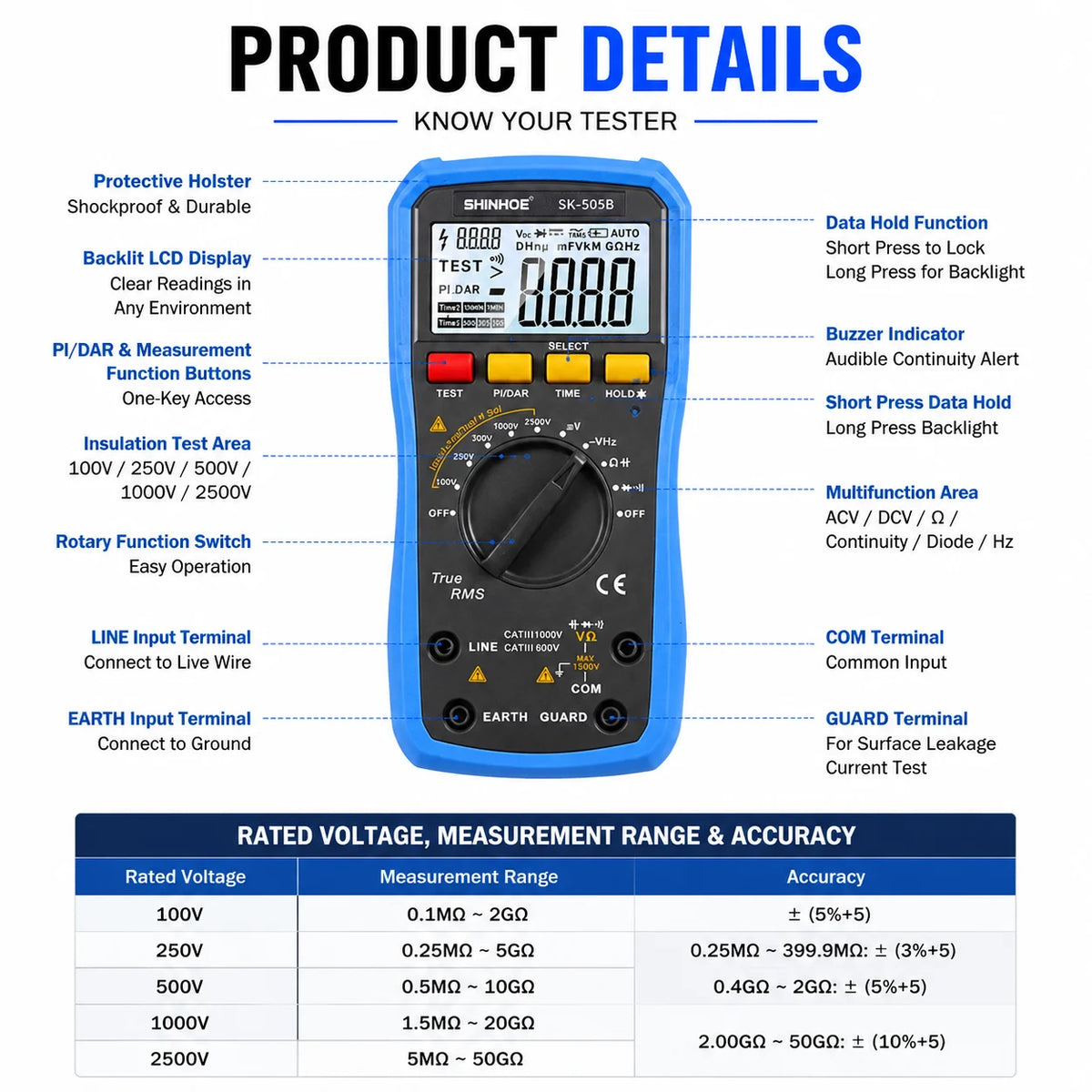

Rated Voltage: 50V to 2500V

Measurement Range: 0.05MΩ to 50GΩ

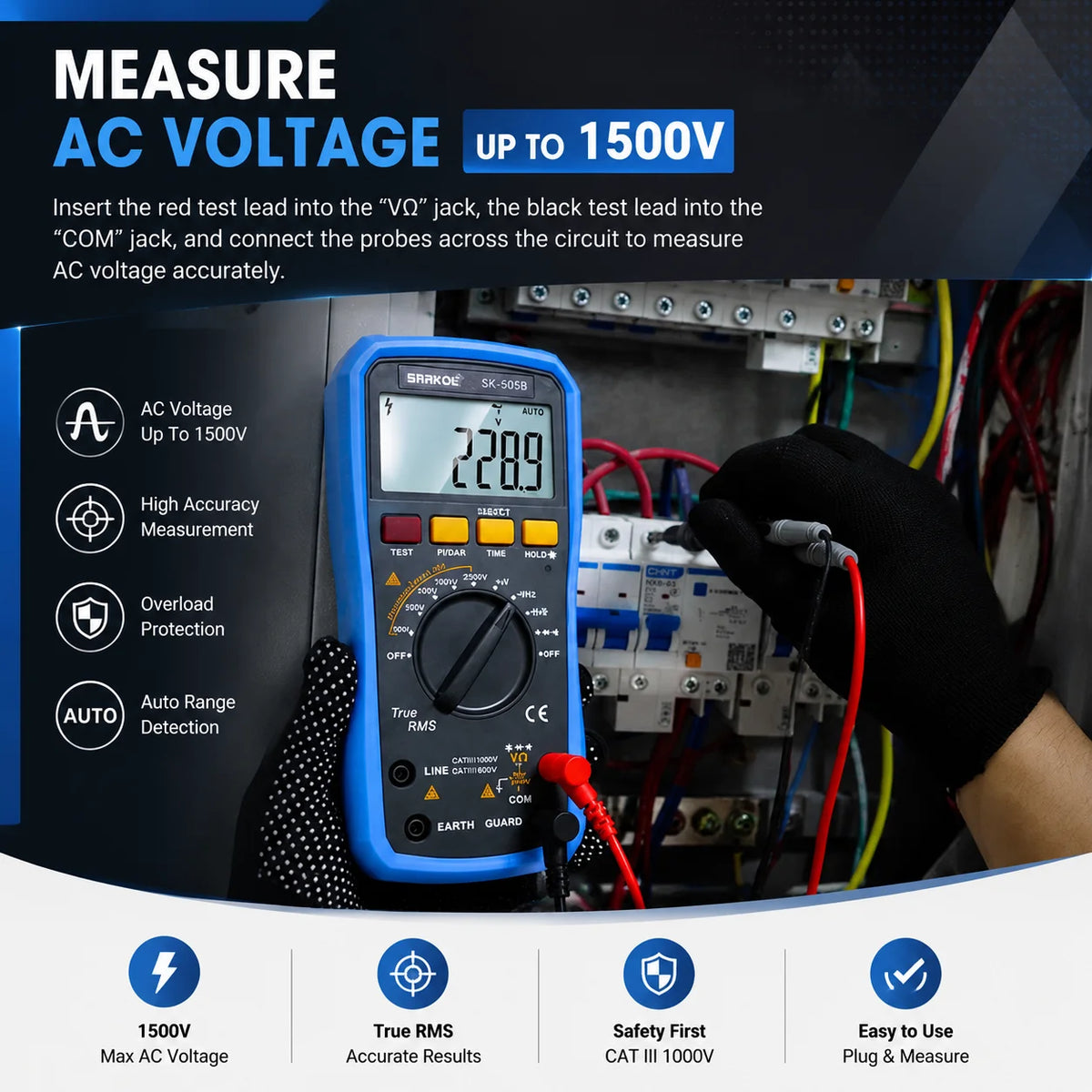

AC/DC Voltage: 6V to 1500V

Resistance: 0.1Ω to 60MΩ

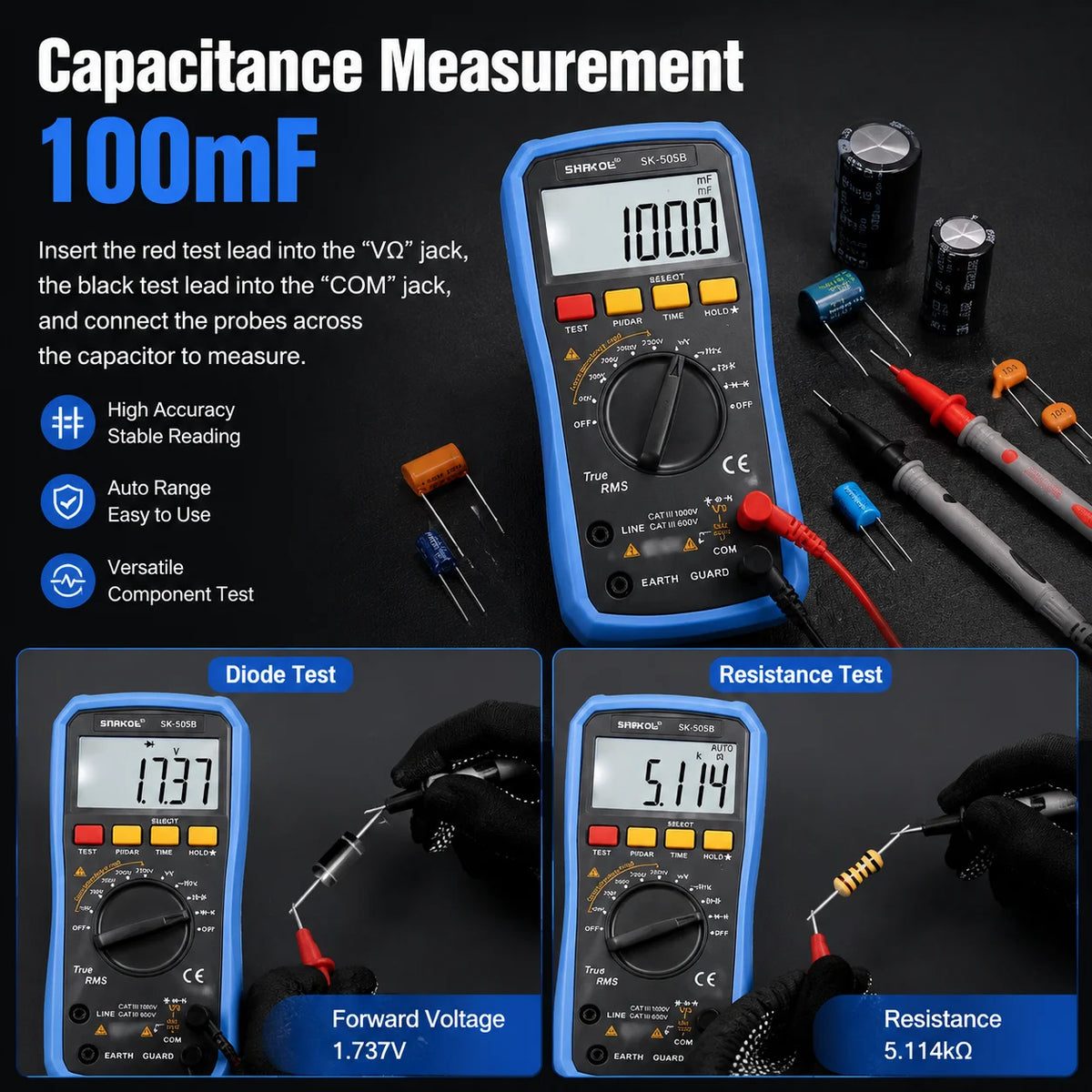

Capacitance: 0.001nF to 100mF

Battery: Rechargeable Lithium Battery 800mAhx2 (with built-in battery included)

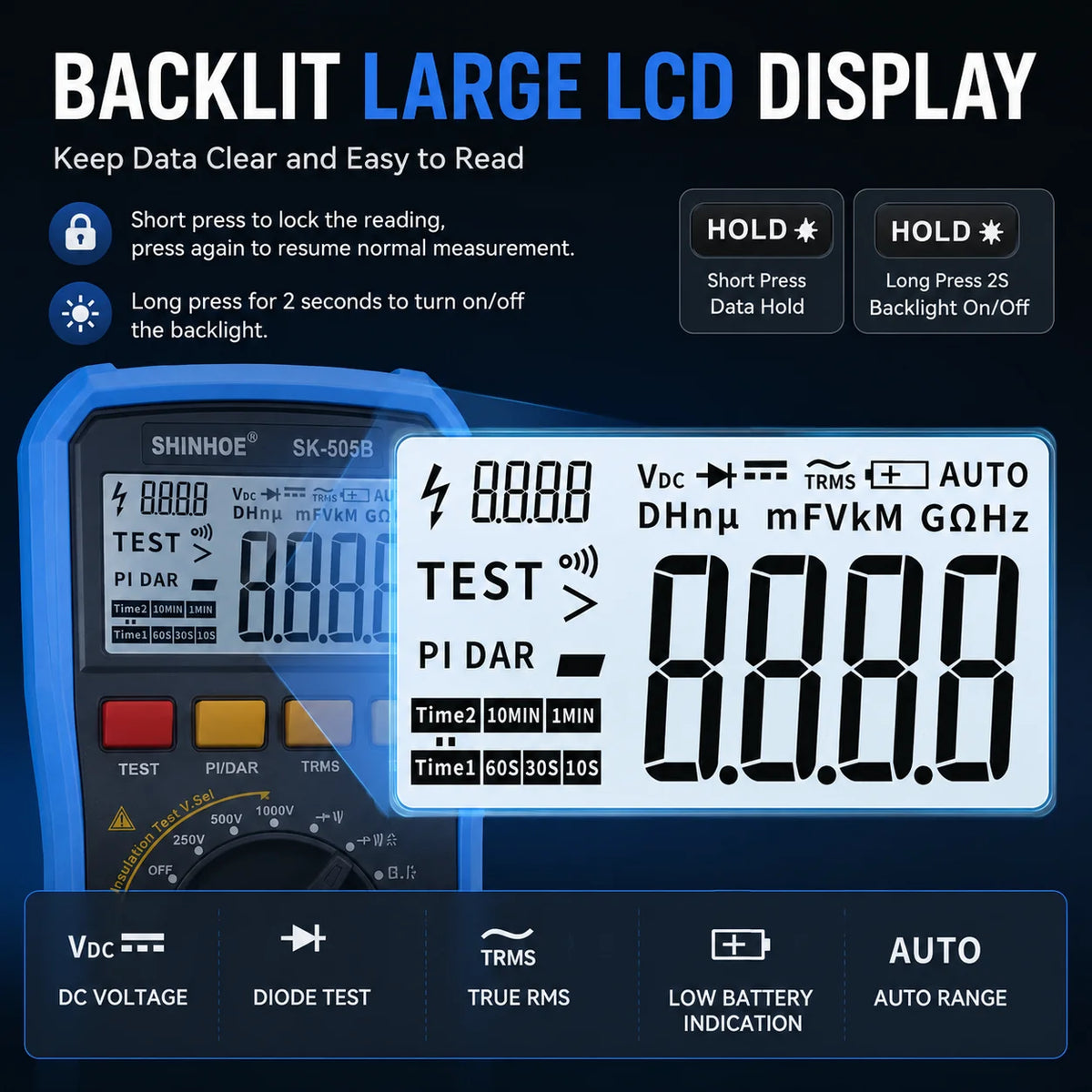

Additional Features: Diode Test, Auto Range, Continuity Buzzer, Sampling Rate, Data Hold, Battery Indicator, Backlight, Auto Power Off
