MSI Z390-A PRO USB 3.1 Gen 2 LGA1151 DDR4 HDMI DP Dual Gigabit LAN ATX M.2 Motherboard
New
SKU:
In stock
$122.00
✓ Secure checkout✓ Shipping updates✓ Customer support
✓
Product details
Specifications
SPECIFICATIONSApplication: DesktopBack I/O Ports: 1x RJ45,VGA (D-Sub),Displayport,HDMI 1.4Battery Included: noBrand Name: MSIChipset: Intel Z390Chipset Manufacturer: IntelHigh-concerned chemical: noneMaterial: othersMaximum Ram Capacity: 64 GBNumber of PCI: 4Onboard LAN: 1x RJ45Origin: Mainland ChinaPCI - E standards: PCI-E 3.0Package: NoProcessor compatibility: 8th Intel Core i5,9th Intel Core i3,9th Intel Core i5,8th Intel Core i7,9th Intel Core i9,8th Intel Core i9RAID Supported: noSocket Type: LGA 1151Special Features: NONEStorage Interface Type: SATA,M.2 (NVMe)Support Memory Type: DDR4Usage Scenario: Gaming,Audio & VideoWith CPU: No
Only the eighth and ninth generation CPUs are supported
General
Chipset
Intel Z390
CPU Socket
LGA 1151

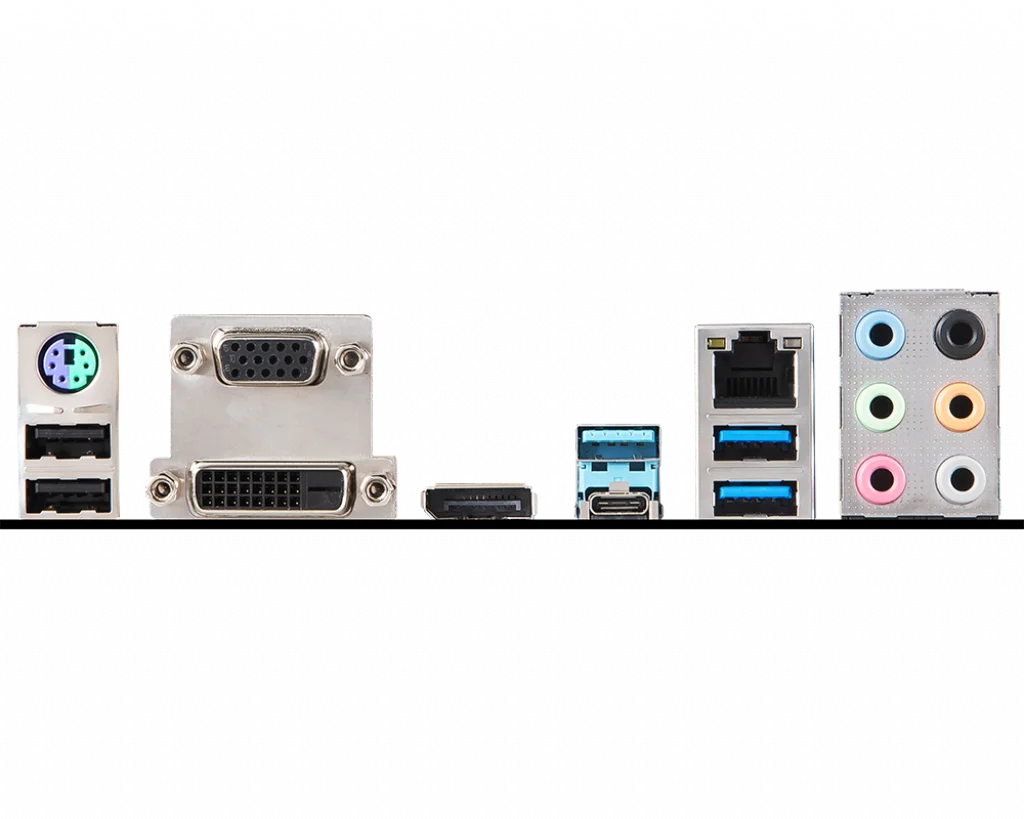

Back Panel I/O
USB
2 x USB 2.0 Type-A 1 x USB 3.1 / USB 3.2 Gen 2 Type-A 1 x USB 3.1 / USB 3.2 Gen 2 Type-C 2 x USB 3.1 / USB 3.2 Gen 1 Type-A
Display
1 x VGA 1 x DVI-D 1 x DisplayPort
Audio
6 x 3.5 mm
Ethernet / Controller
1 x Intel I219-V Gigabit
PS/2
1 x Combo
Memory
Memory Slots
4 x 288-Pin
Memory Support
DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400 MHz
Maximum Capacity
64 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
6 x SATA III
M.2
1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA III)
U.2
None
Optane Memory Support
Yes
RAID Support
RAID 0, 1, 5, 10 (SATA)
Internal I/O
Expansion Slots
2 x PCIe 3.0 x16 4 x PCIe 3.0 x1
USB
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port) 2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support
2-Way AMD CrossFireX
Air Cooling
1 x 4-Pin CPU 5 x 4-Pin System
Liquid Cooling
1 x 4-Pin Pump
Power Connectors
1 x 24-Pin Mainboard 1 x 8-Pin CPU 1 x 6-Pin ATX
Security
Chassis Intrusion, TPM Module
LED Header
1 x RGB
Audio
None
Diagnostics
Clear CMOS, CPU Overclock
Add-On
1 x 1 x Thunderbolt Card Header
Legacy
1 x Serial 1 x Parallel
Front Panel I/O
I/O Connection Headers
AAFP, USB 3.1 / USB 3.2 Gen 1
Audio
Audio Codec
Realtek ALC892 (7.1-Channel)
Wireless
Module Support
1 E Key M.2
Software
Supported Operating Systems
Windows 10 (64-Bit)
Physical
Form Factor
ATX
Dimensions
9.6 x 12" / 243.84 x 304.80 mm
Packaging Info
Package Weight
2.71 lb
Box Dimensions (LxWxH)
14.1 x 11.4 x 2.7
