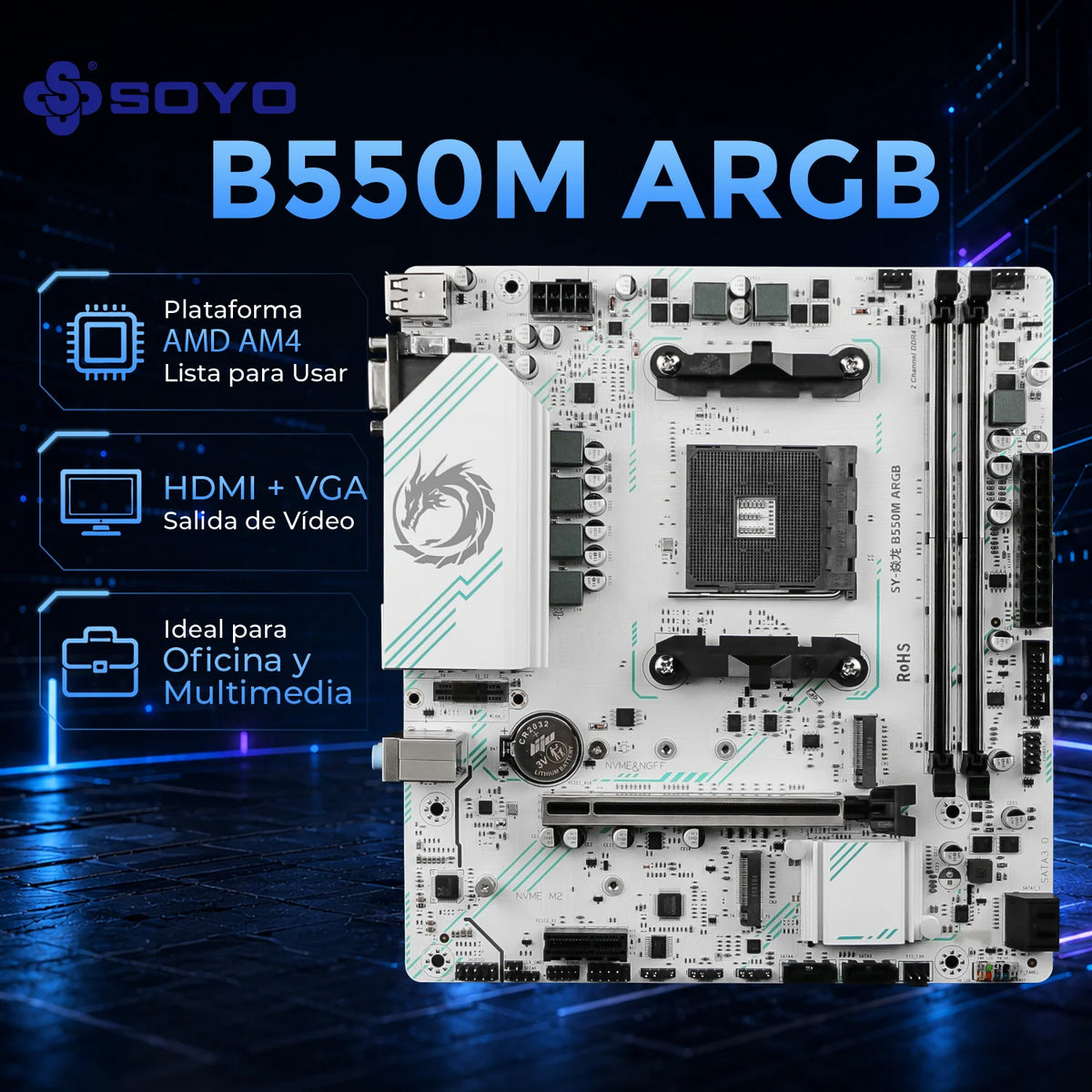

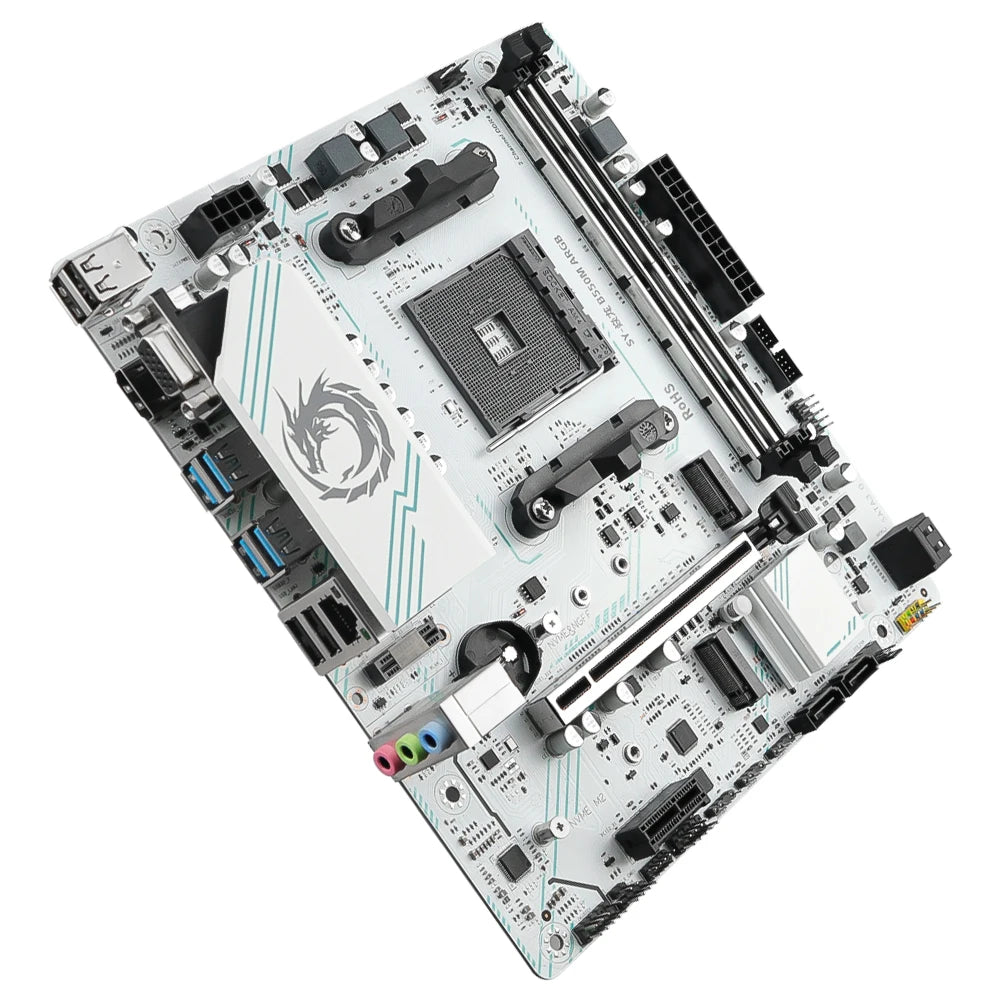

SOYO AMD Ryzen B550M ARGB DDR4 Motherboard AM4 Computer Combo Set Office Desktop PC Game PCIE4.0*16 M.2 NVME/MGFF SATA USB3.0 24PIN+8PIN USB2.0 HD/VGA Memory up to 64GB
New
SKU: 200007763:201336106
In stock
$126.00
✓ Secure checkout✓ Shipping updates✓ Customer support
✓
Product details
Specifications
SPECIFICATIONSApplication: DesktopBack I/O Ports: 1x RJ45,VGA (D-Sub),HDMI 1.0Battery Included: noBrand Name: SOYOChipset: AMD B550Chipset Manufacturer: AMDHigh-concerned chemical: noneMaterial: othersMaximum Ram Capacity: 64 GBMemory channel: DoubleNumber Of Memory Slots: 2Number of PCI: 1Number of PCIe x 16: 1Onboard Connectors & Header: 24-pin Main Power Connector,8-pin +12V Power ConnectorOnboard LAN: 1x RJ45Origin: Mainland ChinaPCI - E standards: PCI-E 4.0Package: YesPorts: USB 3.0Processor compatibility: AMD Ryzen 3000 Series-R9RAID Supported: noSocket Type: AM4Special Features: Support for OverclockingStorage Interface Type: SATA 3Support Memory Type: DDR4Usage Scenario: Enthusiast & Overclocking,Gaming,Office,Video ProductionWith CPU: NoDual Memory ChannelsThe dual memory channels design ensures efficient data processing, enhancing the overall system performance.PCI-E 4.0 CompatibilityFeaturing a PCIe 4.0 slot, this motherboard provides lightning-fast data transfer speeds for high-performance graphics cards.Supports OverclockingThe motherboard supports overclocking, allowing users to push their system's limits for enhanced performance.Large Memory CapacityWith support for up to 64GB of DDR4 memory, this motherboard can handle demanding applications and games with ease.High-Performance ChipsetEquipped with the AMD B550 chipset, this motherboard offers superior processing power for gaming and multitasking.
Motherboard Chipset
AMD B550
CPU Support
Supports AMD Ryzen 3000 (non-G series)/4000, 4000G/5000, 5000G Series Processors
Optional: R5-3600, R5-4650G, R5-5600G, R7-5700X, R7-5700X3D, etc.
Memory
DDR4 2, Dual-Channel; Supports 2133/2400/2666/3000/3200/3600MHz (OC+)
Supports XMP, Max Capacity: 64G (32G2)
Storage
2* M.2 Slots (CN2: PCIE4.0 X4/SATA3.0), (CN3: PCIE3.0 X4); 4*SATA3.0 Interfaces
Display Outputs
1HDMI 2.0 Port, 1VGA Port
Network
1*RJ45 Ethernet Port
LAN Chipset
Realtek Gigabit Ethernet Chip
PCIe Slots
1PCIe X16 Slot (PCIe4.0 X16), 1PCIe X1 Slot (PCIe3.0 X1), 1*WIFI Slot (PCIe Protocol)
Audio
1Line Out; 1Mic In; 1Line In; 1F_Audio Internal Header
Audio Chipset
Realtek ALC897 HD Audio Chip
USB Interfaces
I/O Ports: 4USB3.2 GEN1 (5Gbps), 4USB2.0
Internal Headers: 1USB2.0 Header (Expands 2 USB2.0 Ports)
1USB3.0 Header (Expands 2 USB3.0 Ports); 5Gbps
Functional Headers
1FPANEL Front Panel Header; 14Pin CPU Fan Header; 14Pin + 13Pin SYS Fan Header; 14Pin Speaker Header
25Pin COM Headers; 25Pin Debug Headers; 35V 3PIN ARGB Headers
Power Input
24 Pin + 8 Pin ATX Power Connector
Parameter
Details

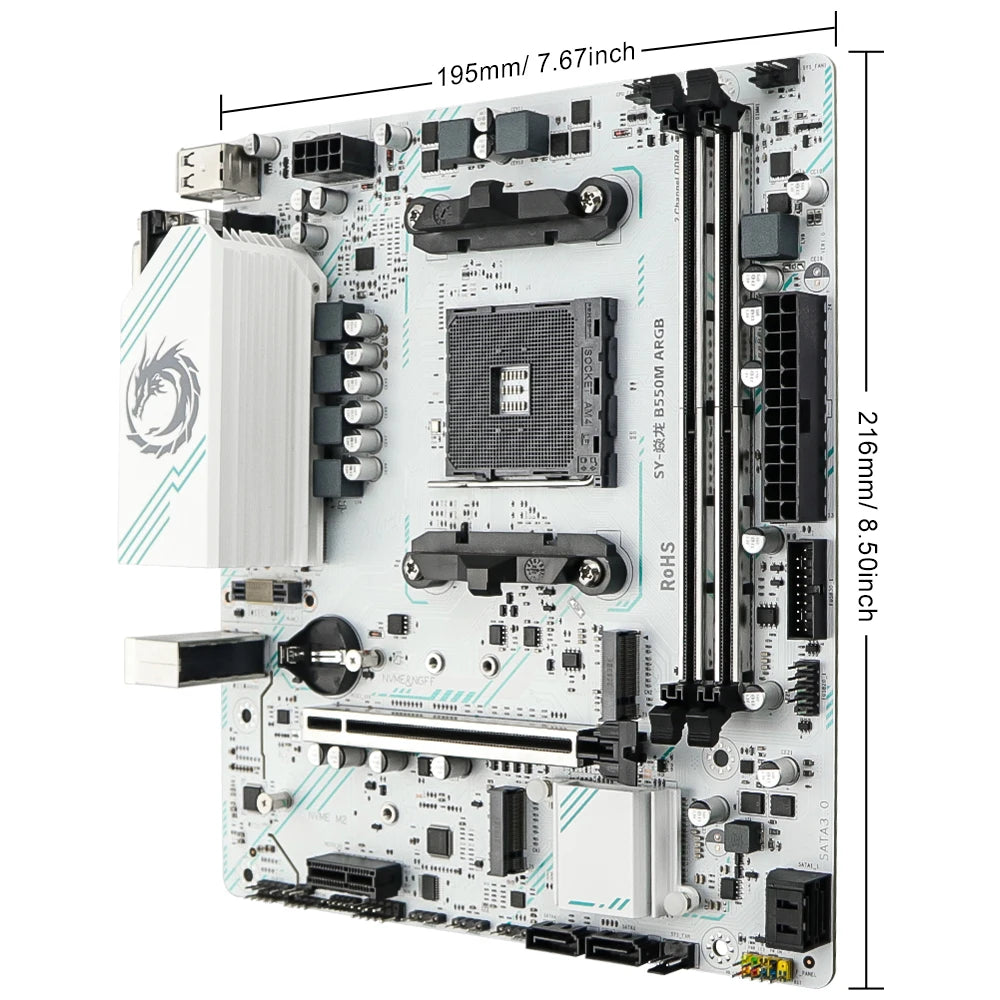

Product Size
195 mm x 216 mm
Operating Environment
Temperature: -20°C ~ 60°C, Humidity: 0-95% RH, Non-condensing
Power Consumption
Standby Power: 30~70 W
Full Load Power: 200~450 W (for reference only)
Other
1*CLR CMOS 2PIN Jumper

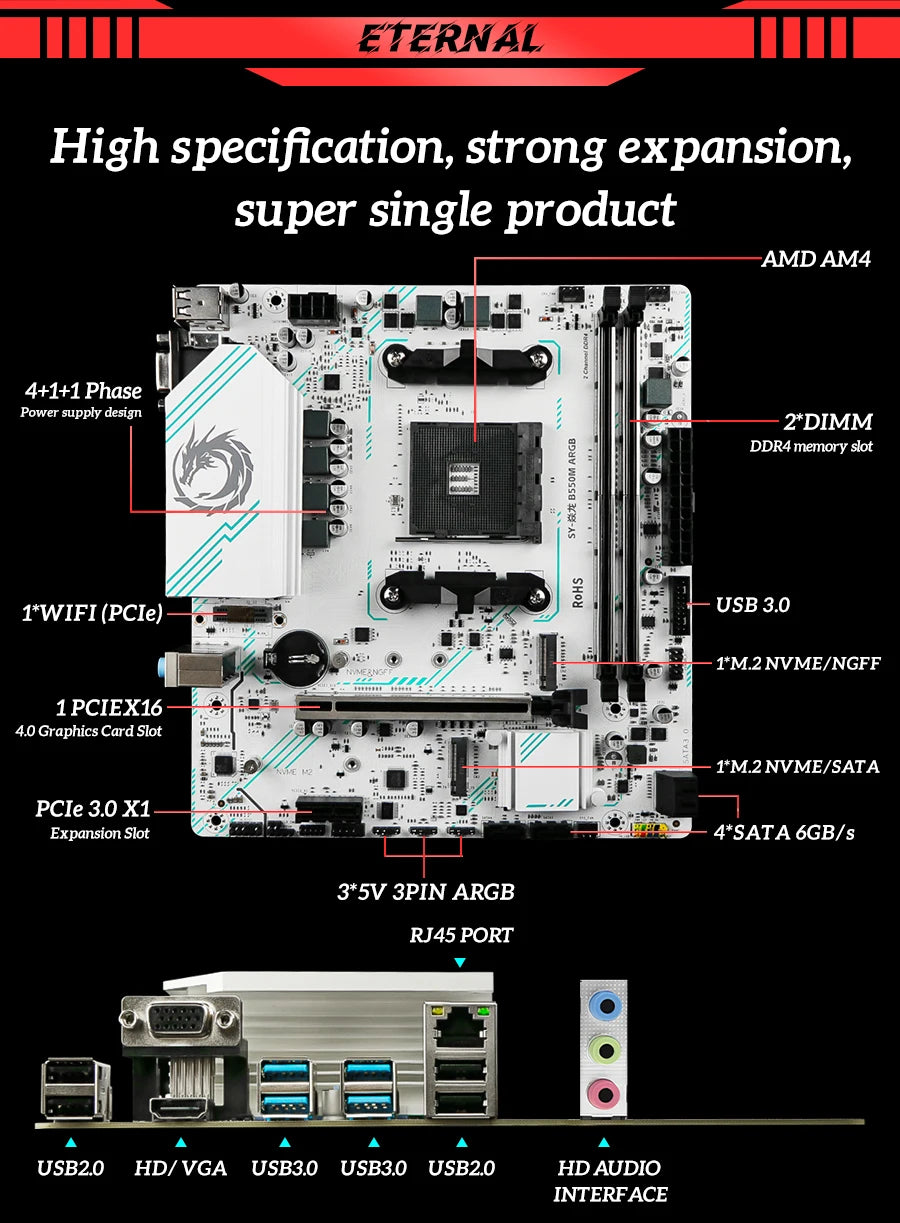

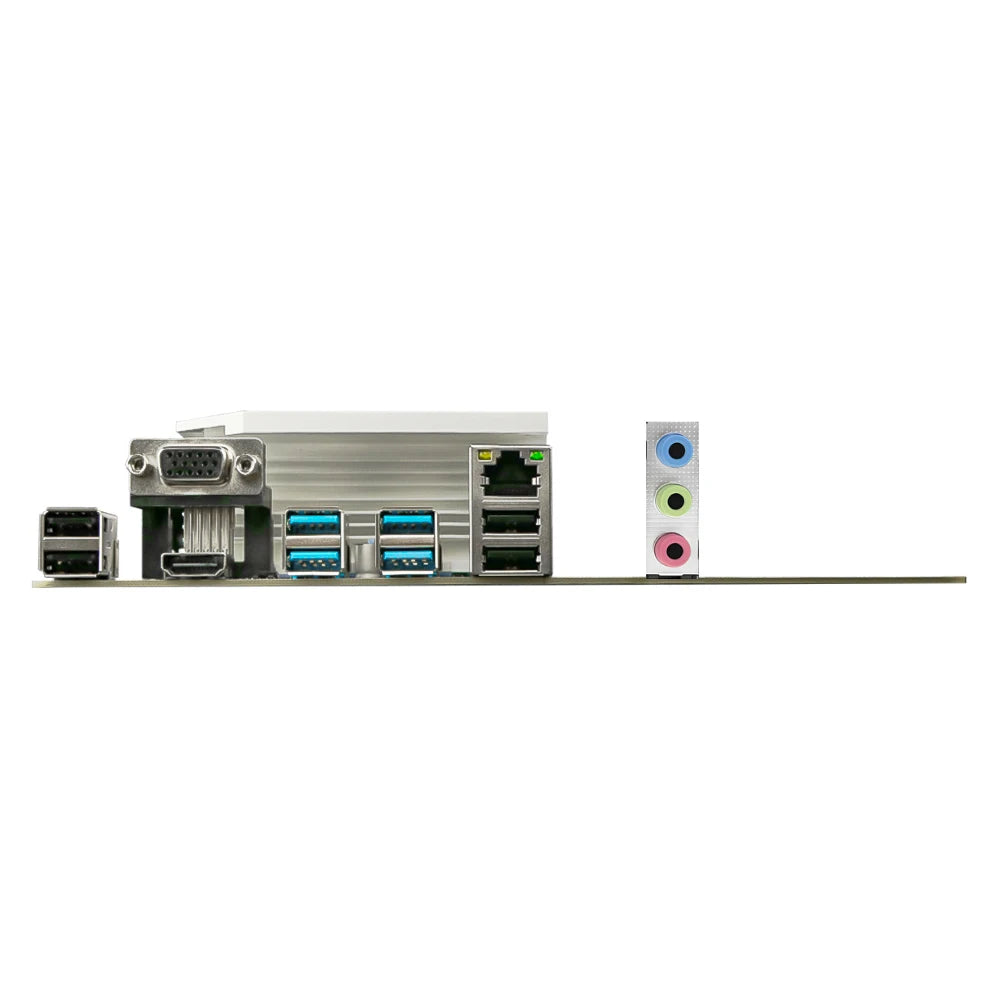

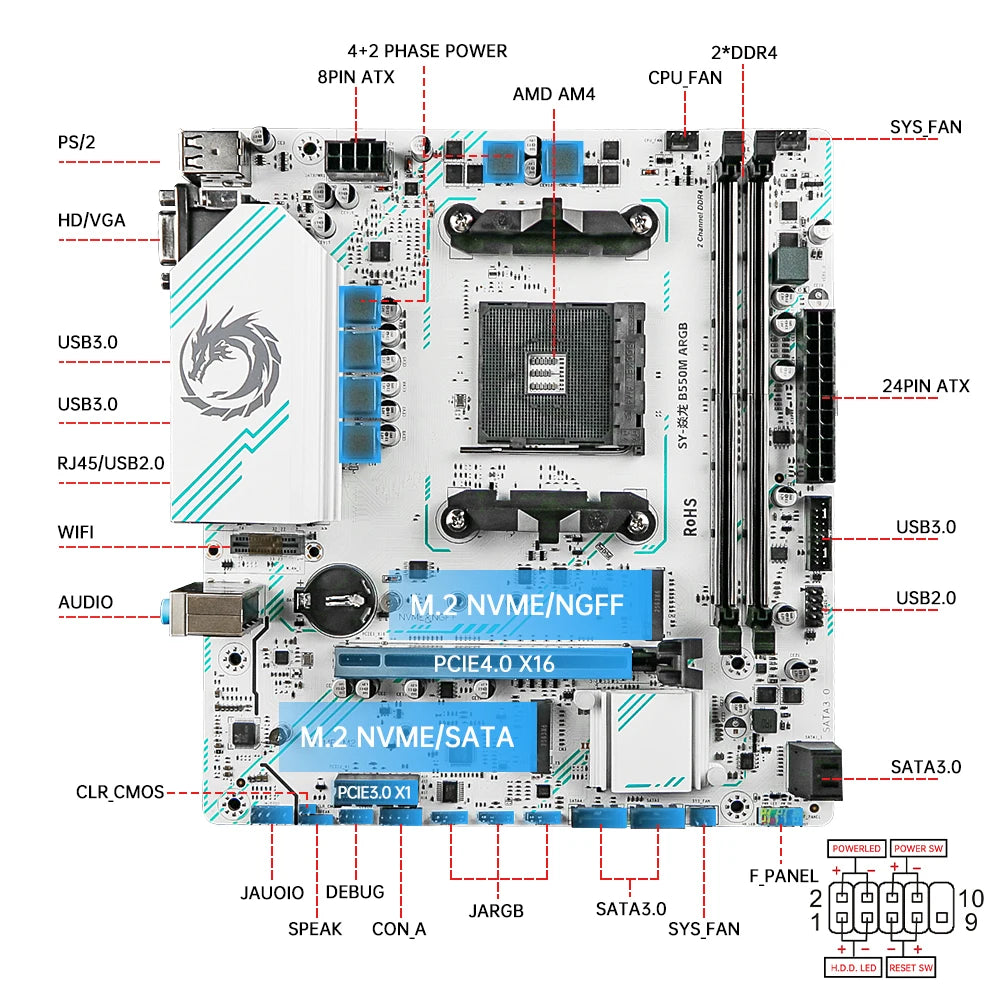

I/O Panel Interface Diagram
A: Dual USB2.0 Ports
B: HDMI + VGA Ports
C: Dual USB3.0 Ports
D: Dual USB3.0 Ports
E: Dual USB2.0 + RJ45 Ethernet Port
F: Audio I/O Jacks
Note:(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.(3) All motherboard memory processors are strictly tested before shipment.
