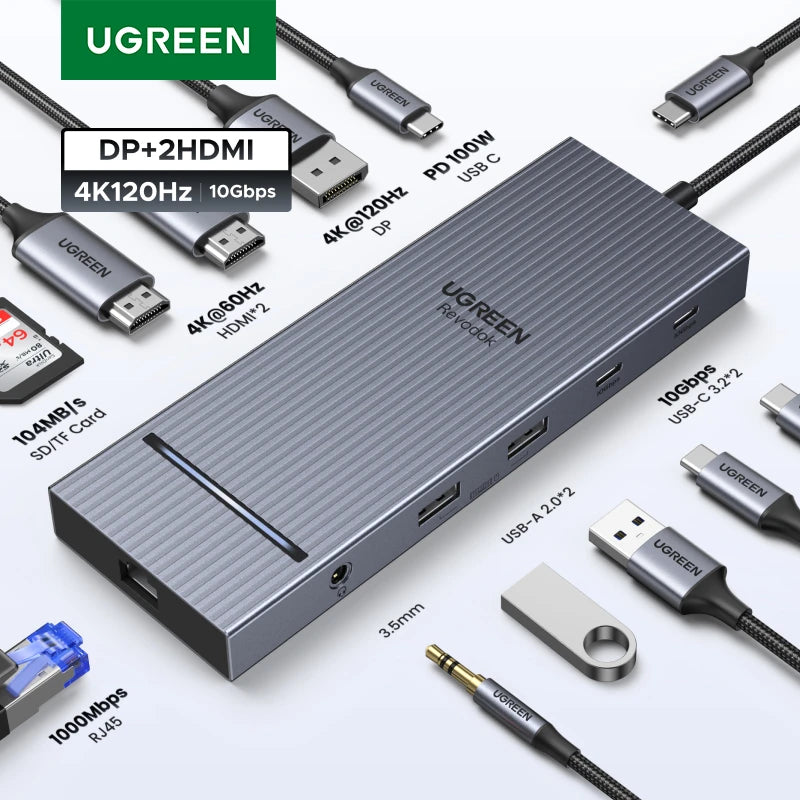

UGREEN 12-in-1 USB HUB Type-C to 2HDMI 4K120Hz DP USB3.2 10Gbps SD/TF RJ45 PD100W for Windows Dell HP Laptop Accessories Docking
New
SKU: 14:691#12-in-1 2HDMI 1DP;200007763:201336100
In stock
$82.00
✓ Secure checkout✓ Shipping updates✓ Customer support
✓
Product details
Specifications
SPECIFICATIONS1x3.5mm Port: Support stereo audio output, support mono microphone input, support line control.1xDP Port: Complies with DP1.4 standard, supports HDCP1.4/2.3, video transmission bandwidth 16.2Gbps, supports HDR/DSC, does not support 3D/CEC/ARC, supports up to 3840x2160@120Hz resolution, backward compatible with 2560x1440@240/144/120/60Hz, 1920x1080@240/144/120/60Hz, etc.1xRJ45 Port: Support 1000/100/10Mbps2xHDMI Ports: Complies with HDMI2.0 standard, supports HDCP1.4/2.3, video transmission bandwidth 18Gbps, supports HDR, does not support 3D/CEC/ARC, supports up to 3840x2160@60Hz resolution, backward compatible with 2560x1440@144/120/60Hz, 1920x1080@240/144/120/60Hz, etc.2xUSB-A Ports: Comply with USB2.0 standard, with theoretical maximum speed of 480Mbps, backward compatible with USB 1.1, not supporting BC1.2, used to connect USB devices such as keyboard, mouse, touchpad, speaker, camera, U disk, etc.2xUSB-C Ports: Complies with USB3.2 Gen 2 standard, with a theoretical maximum rate of 10Gbps, backward compatible with USB3.0/USB2.0/USB 1.1, supports BC1.2, and is used to connect to touchpads, speakers, cameras, U disks, hard disks and other USB devicesBrand Name: UGREENCertification: CE,FCC,RoHSCompatible PC Devices: LaptopCompatible Systems: Windows,MacOS,Linux,Chrome OS,iPad OSFuntion: Card Reader,RJ45,DP,3.5mm,USB-A,USB-C,Charging,HDMI-CompatibleHigh-concerned chemical: noneInput Port: USB-C, Support USB3.2 Gen2 10Gbps; HDMI2.0; DP1.4Interface Type: USB 3.2 GEN 2Material: aluminum,Plastic,Metal,othersOrigin: Mainland ChinaPD Charging Port: It complies with the PD3.0 standard protocol, does not support data transmission, supports different voltages of 20V/15V/12V/9V/5V, and is backward compatible with PD2.0; it supports up to 20V/5A 100W input, uses dynamic pre-deduction, deducts 5W for power below 45W, 10W for power between 45W and 90W, and 15W for power above 90W, and supports up to 85W for computer charging; it is used to connect a PD power adapter to power the docking station and charge the main device.Package: YesPlug Type: NonePorts: 12Product Name: 12-in-1 USB-C HUB / USB-C HUB / USB HUB / Docking Station / USB Splitter / USB ExpanderSD&TF Ports: Support SD3.0 protocol, theoretical maximum transfer rate 104MB/s, support 2 cards read and write simultaneously.Standard: USB 3.2 Gen2Windows Image Output Mode: A+A+A+A, A+B+B+B, A+B+C+DWindows Resolution: Dual display: Any two ports: 4K@60Hz; Triple display: HDMI1 + HDMI2 + DP: Any two 4K@60Hz ports + 1 4K@30Hz port.macOS Image Output Mode: A+A+A+A, A+B+B+BmacOS Resolution: All 4K60Hz
Important Note for Choice:
There are 7 hubs with different interface combinations available for purchase under this link. Please carefully confirm which product you need before purchasing to avoid purchasing errors.
Important Note for macOS Users:
Multiple Video Ports(2xHDMI/HDMI+DP/2xHDMI+DP, etc.) docking station is this link only supports mirroring mode (A+B+B+B) on macOS, where all external displays show identical content; it is not recommended for MacBook users who need extended mode with different content on multiple monitors.
Triple Display 10 Gbps USB-C HUBDP-4K120Hz, HDMI1&2-4K60Hz

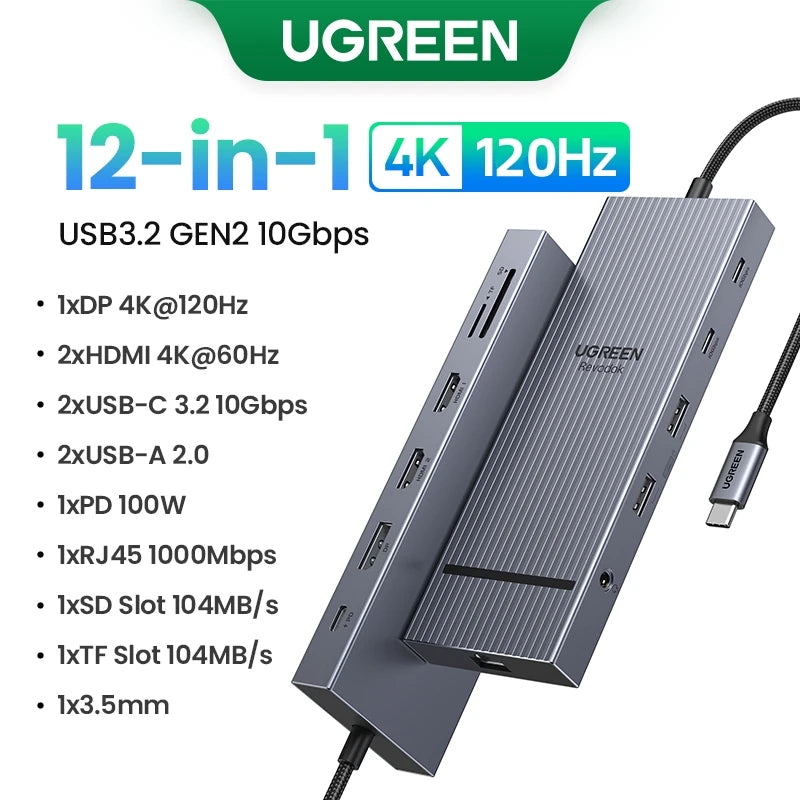

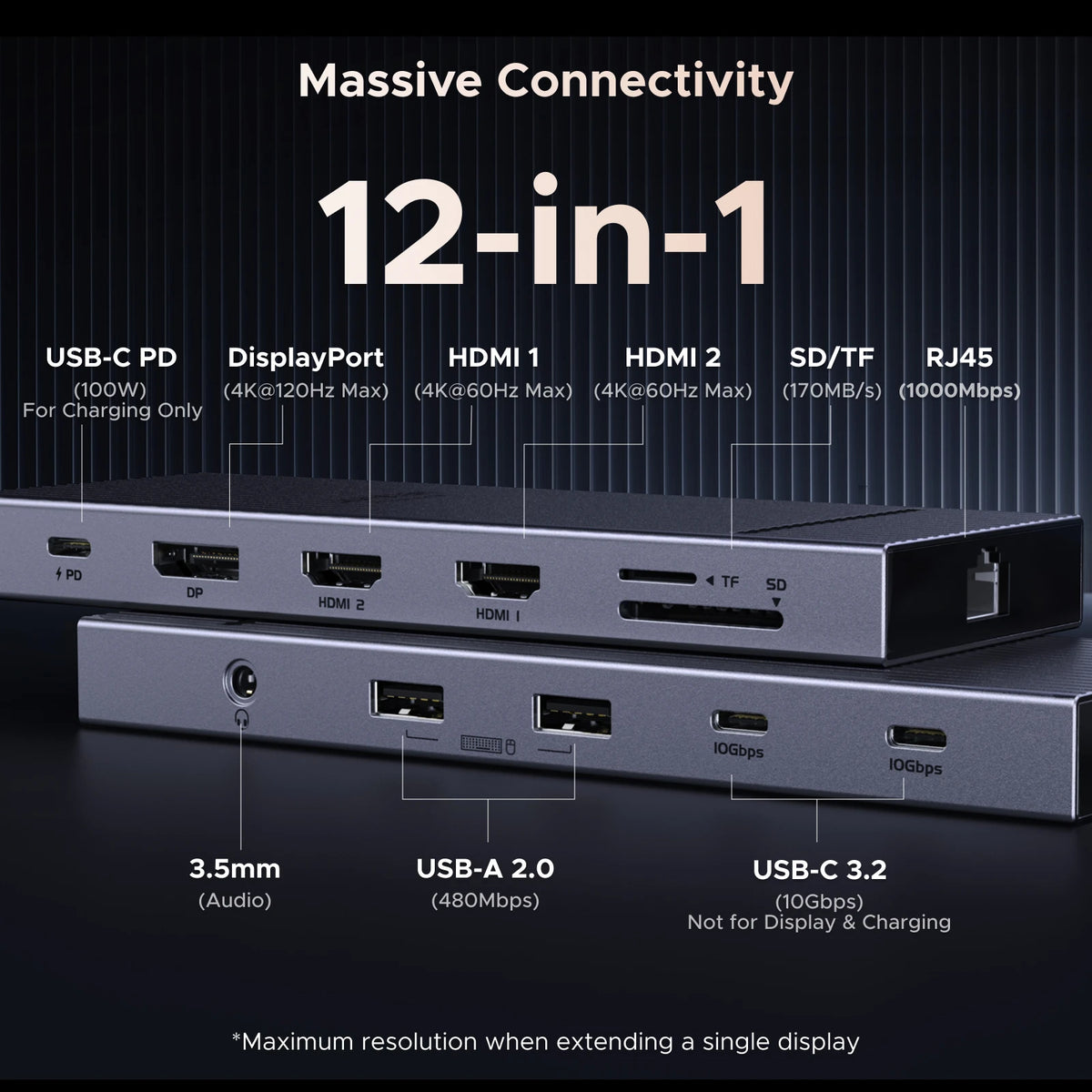

12-in-1 Connectivity
Single DP 4K@120Hz Display
Complies with DP 1.4 standard, supports HDCP 1.4/2.3, video transmission bandwidth 16.2 Gbps, supports HDR/DSC, does not support 3D/CEC/ARC, supports up to 3840x2160@120Hz resolution, backward compatible with 2560x1440@240/144/120/60Hz, 1920x1080@240/144/120/60Hz, etc.
DuaI 4K@60Hz DisplayDP+HDMI1 / DP+HDMI2 / HDMI1+HDMI2
Triple 4K Display
DP+HDMI1+HDMI2
Windows: 4K@60Hz for any 2 ports, 4K@30Hz for the remaining 1 port.macOS: All 4K@60Hz.

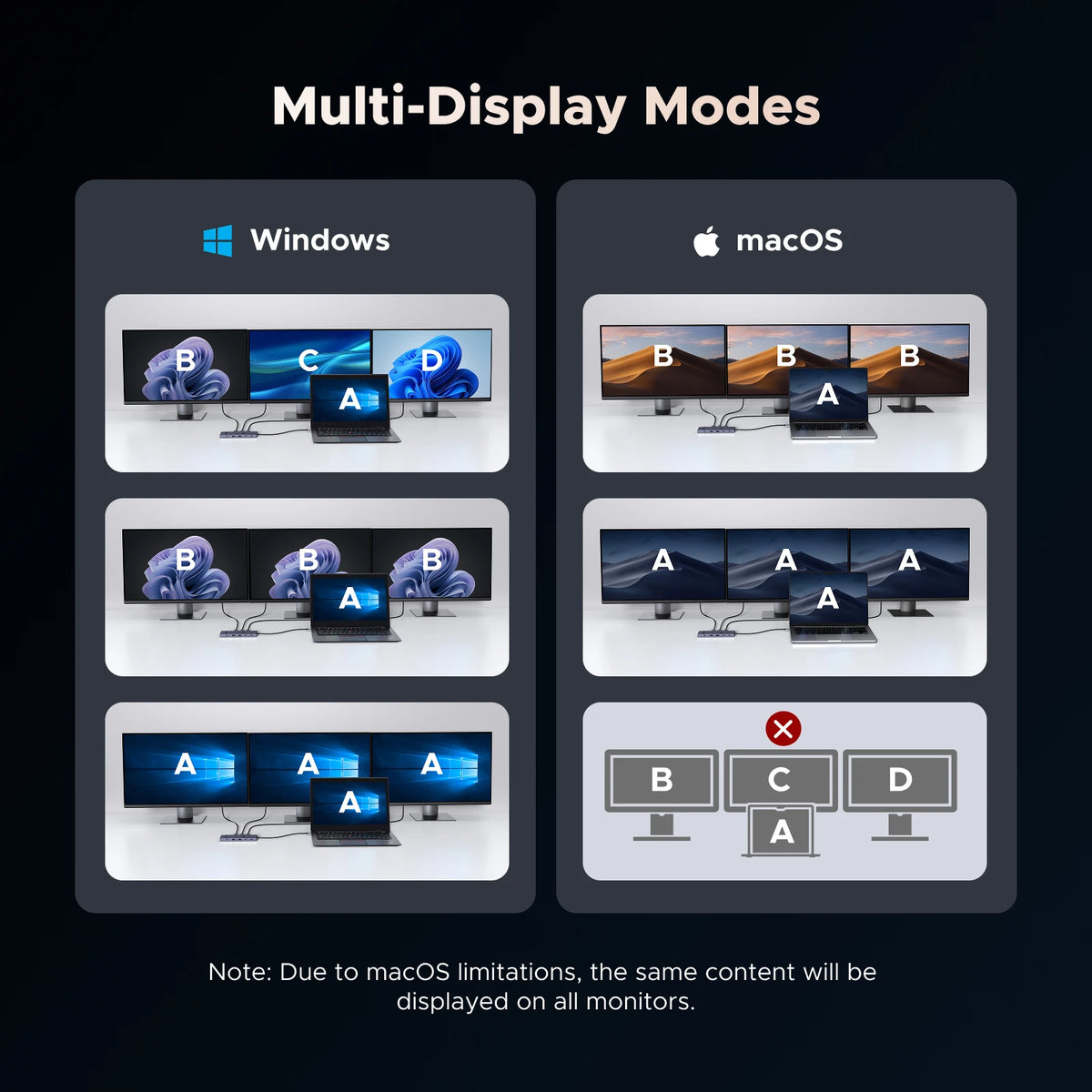

Multi-Display Modes for WindowsMirror Mode & Extend Mode
Display Modes for macOSMirror Mode & Non-Mirror Mode

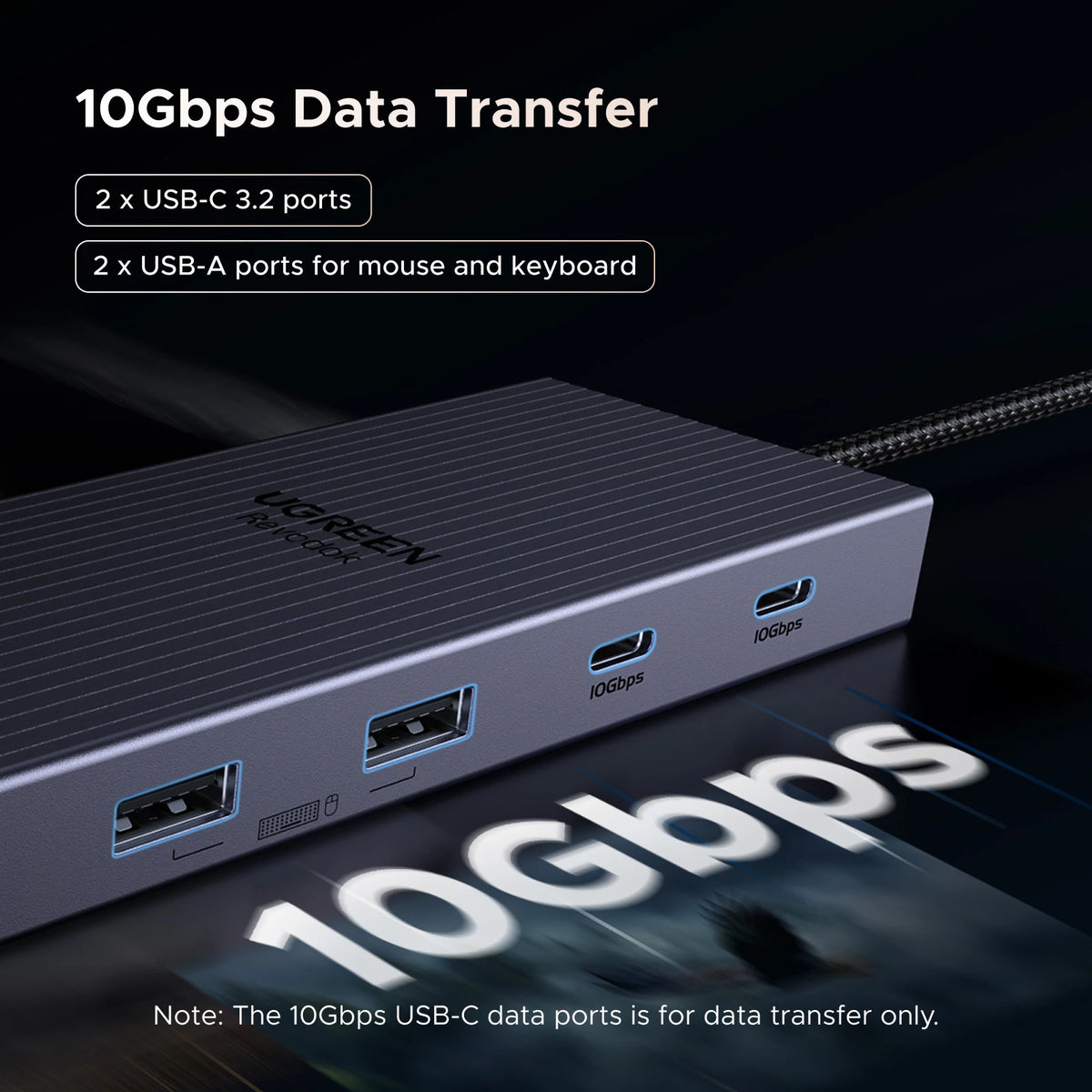

10Gbps USB3.2 Gen22xUSB-C 3.2 Gen 2 + 2xUSB-A 2.0(for keyboard&mouse)
Gigabit Ethernet SpeedSupport 1000/100/10Mbps
85W Pass-Through Charging
SD/TF Card Reader 170MB/s.Support read & write 2 cards simultaneously
External Audio PortWith a 3.5mm audio interface, it supports stereo sound effects.
40 CM Braided CableFlexible use/placement
Wide CompatibilityPlug & Play
Indicator LightEasily know the working status
Beautiful and Durable 1. Cotton Densely Braided Cable; 2. Metal Material Shell; 3. Durable Connector.
Powerful Heat Dissipation
Product Specifications
Package Display
Check your Laptop's Compatibility
Confirm that your laptop supports all USB-C features
