YnTex

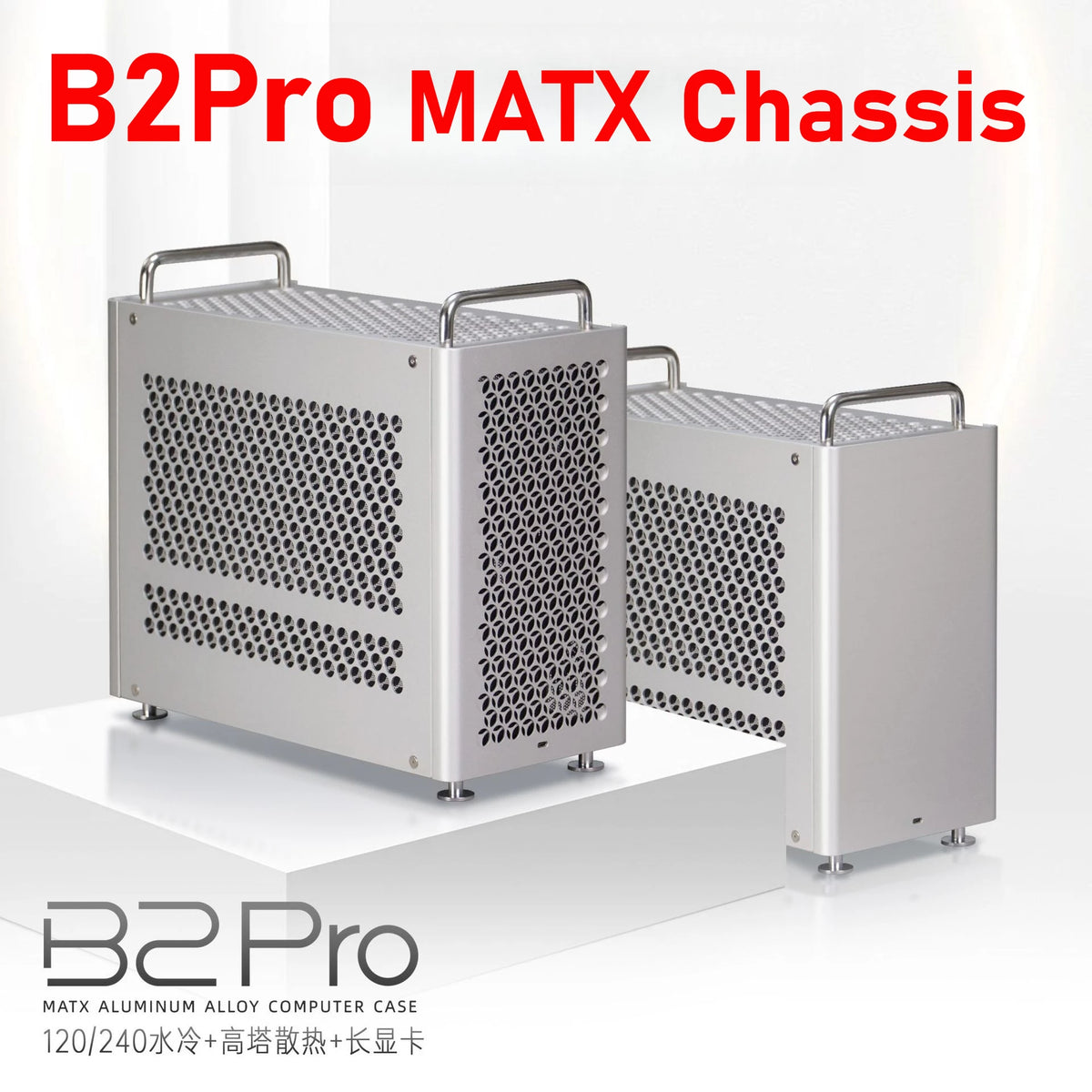

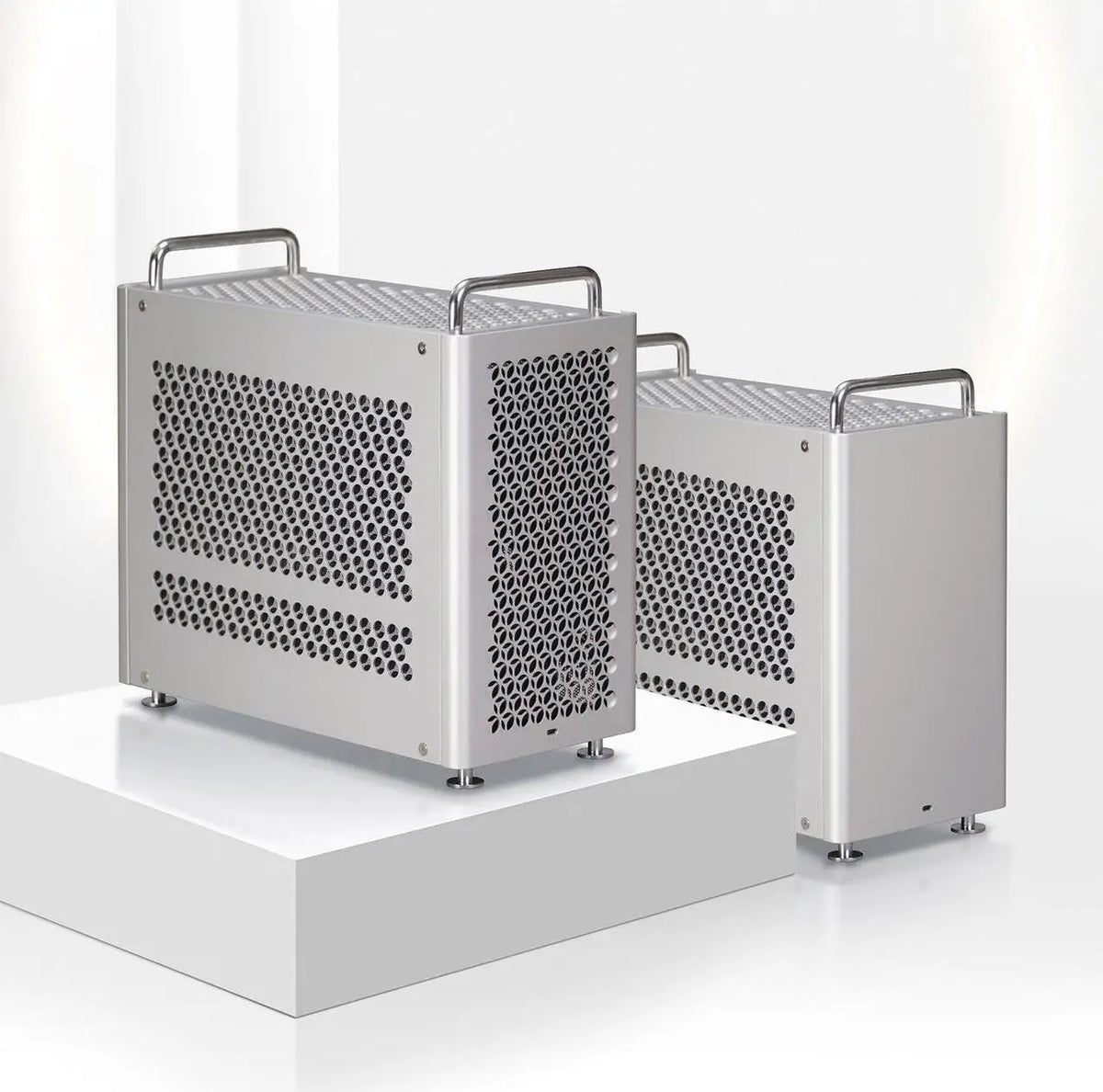

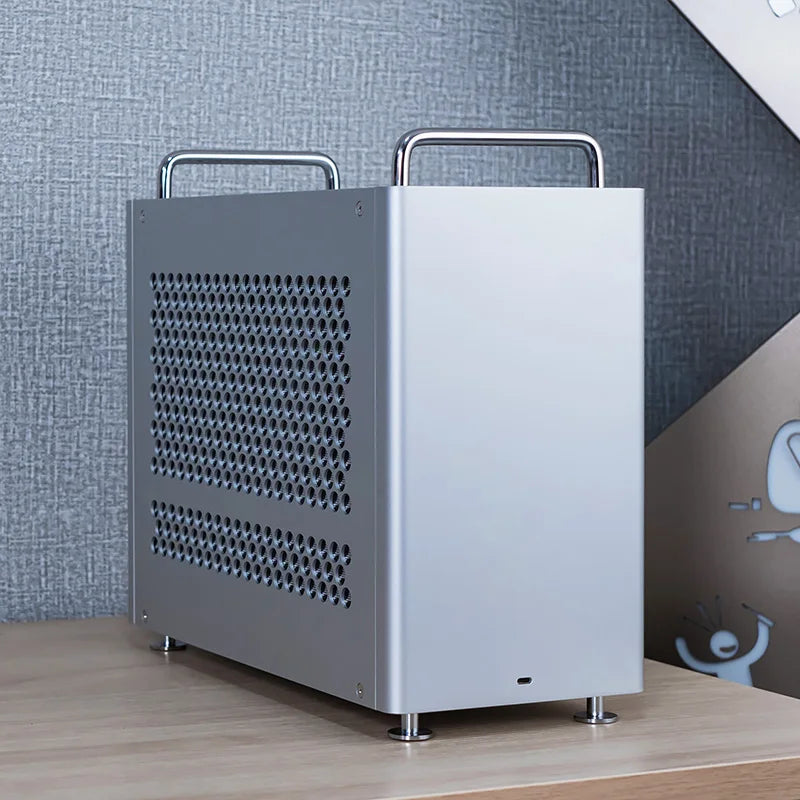

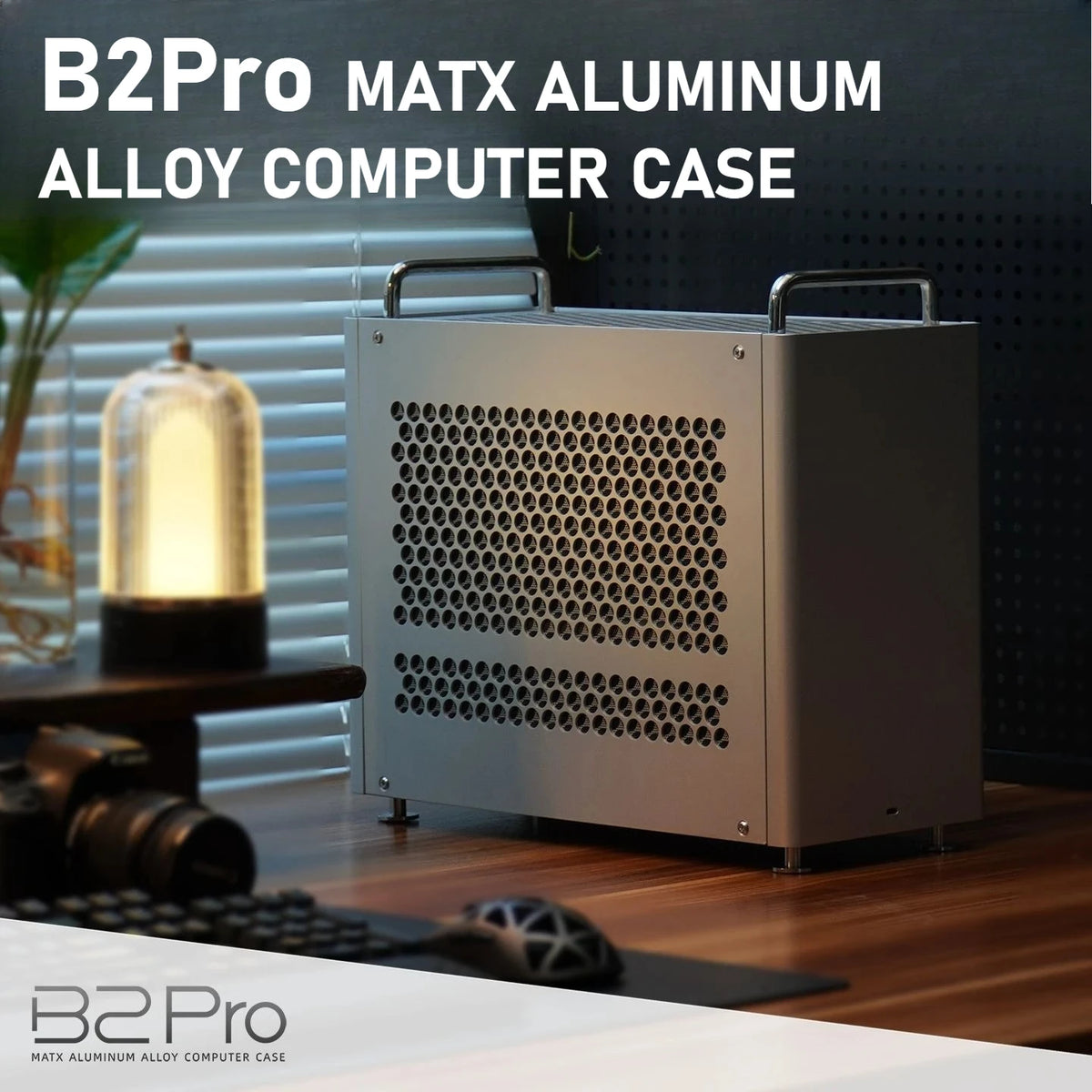

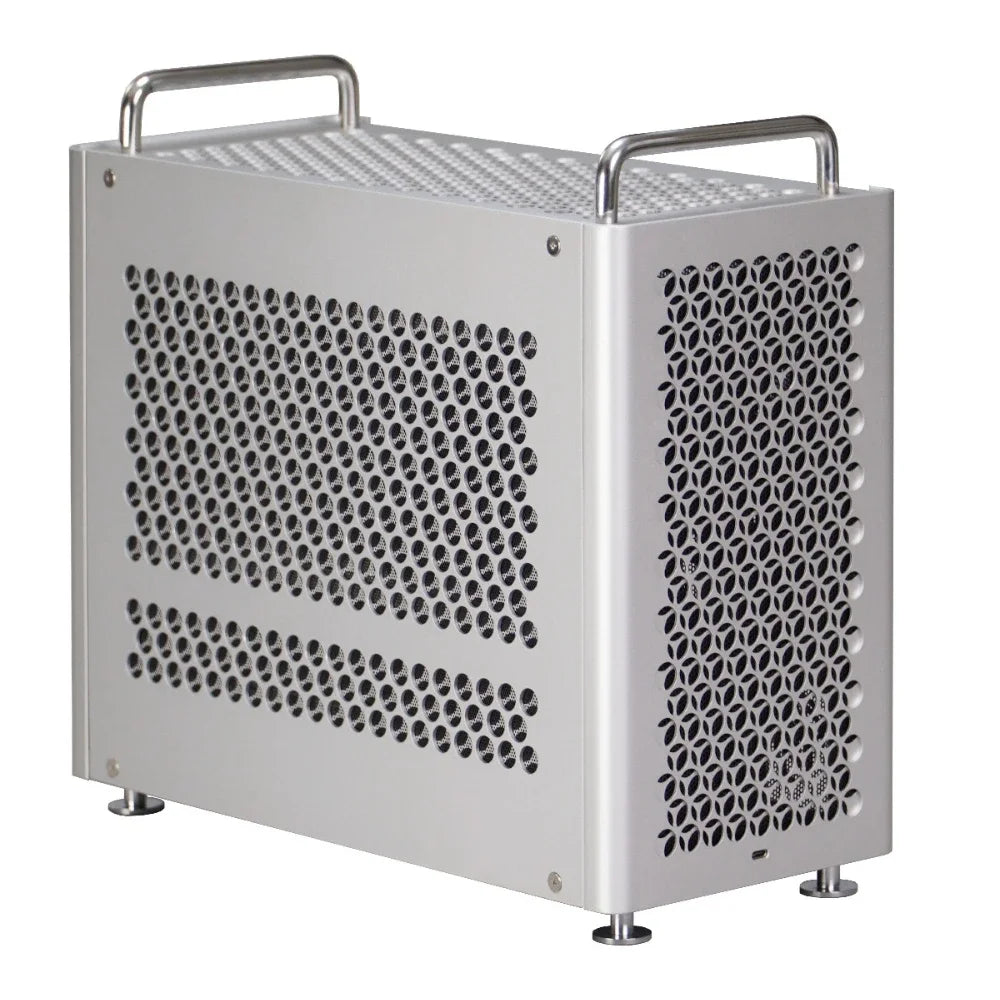

B2Pro MATX Aluminum Alloy Computer Case Desktop Chassis Computer Fits Matx/Atx/Sfx Power Supply &240 Water Cooling
New
SKU: 14:350853#Silver Standard
In stock
$450.00
✓ Secure checkout✓ Shipping updates✓ Customer support
✓
Product details
Specifications

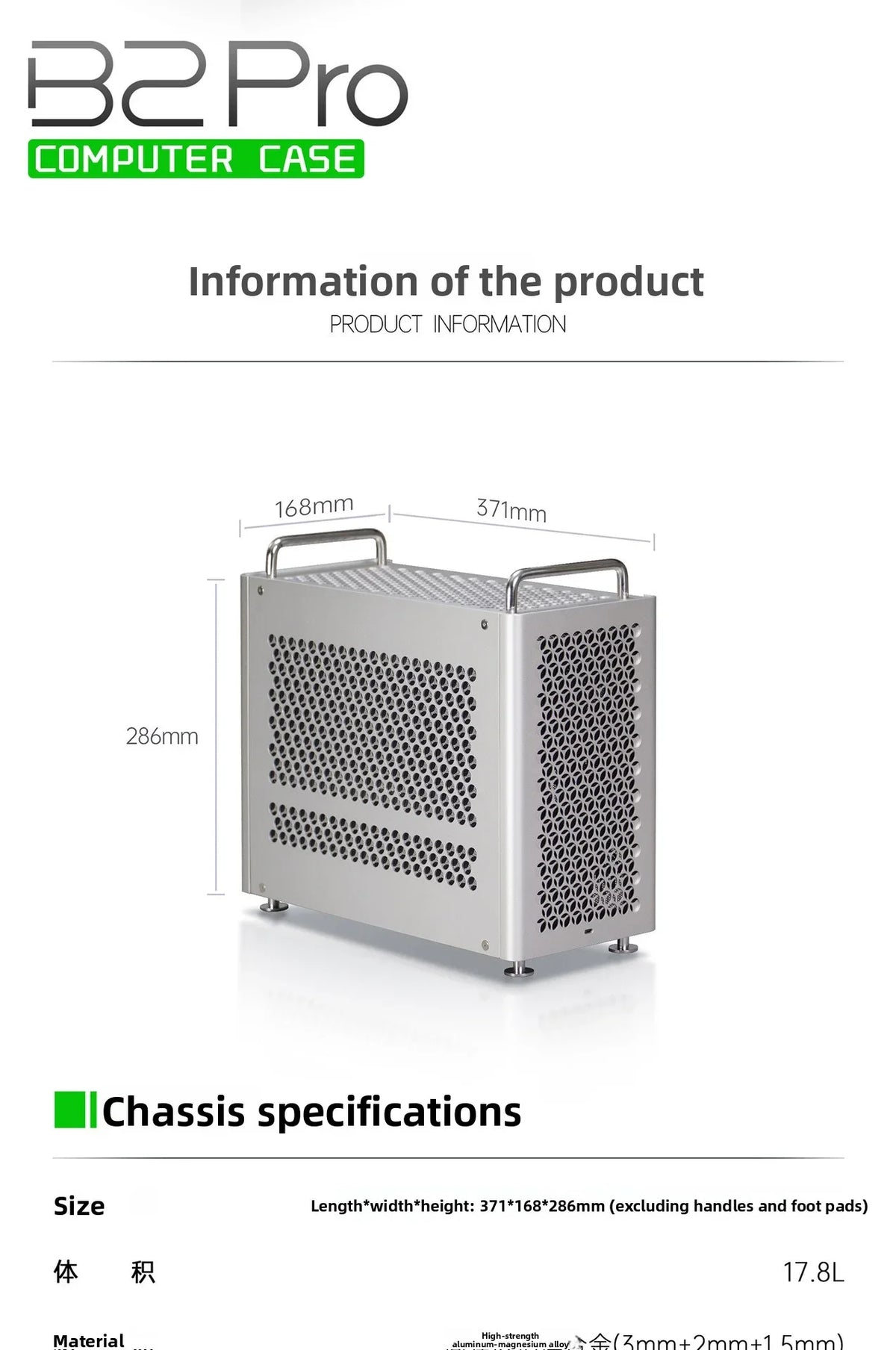

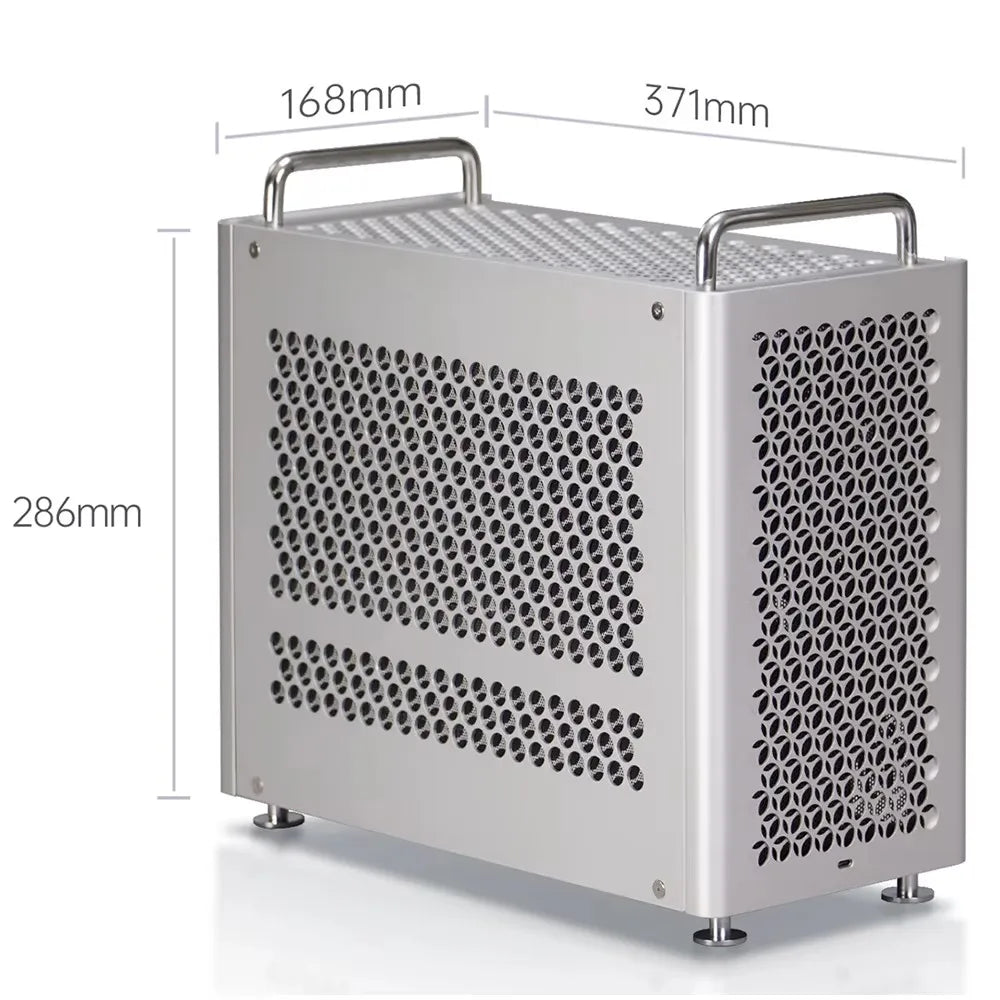

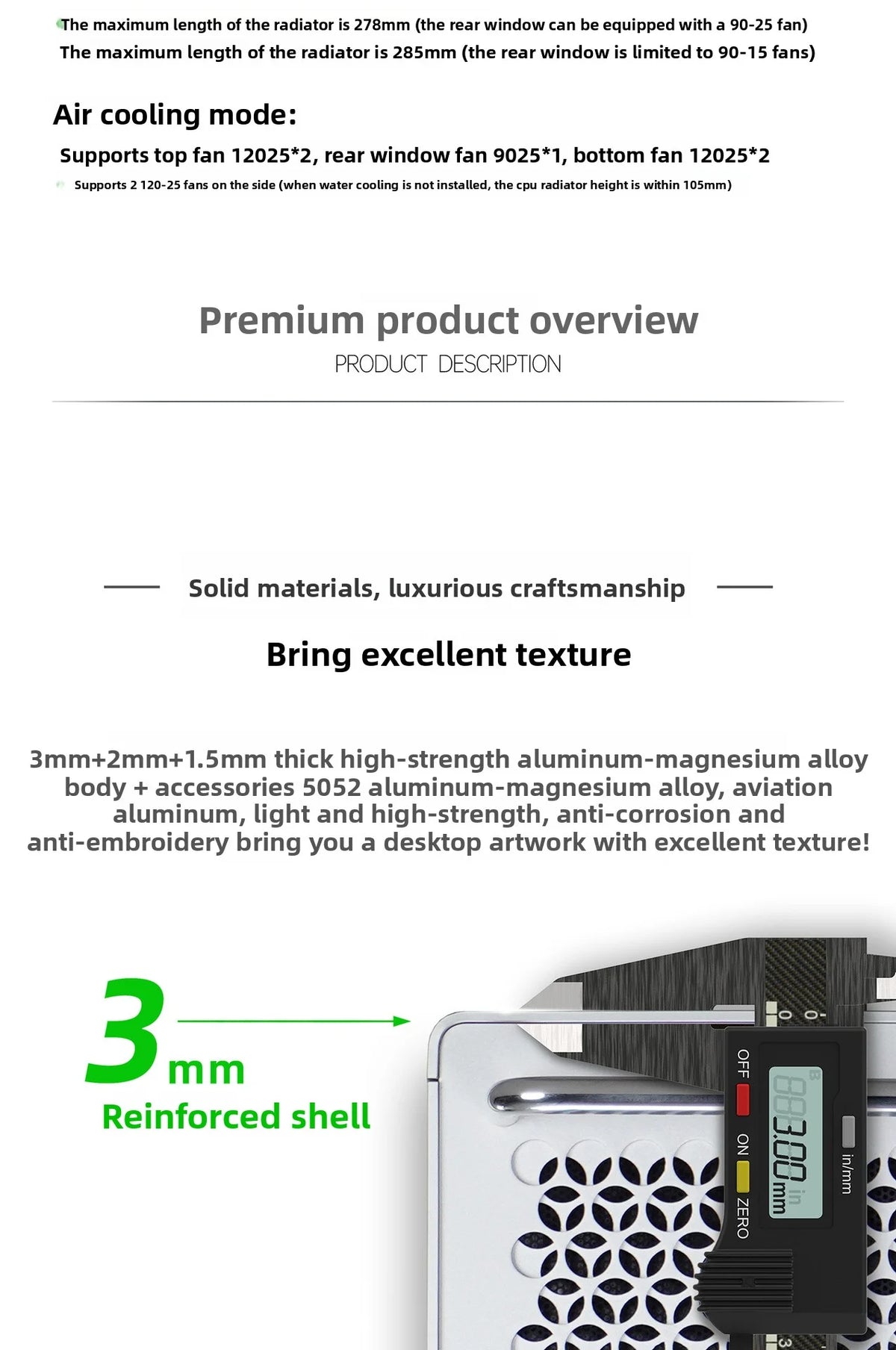

SPECIFICATIONSApplication: DesktopBrand Name: VBNMCase Size: 371*168*286mmCase Weight: 3.2Form Factor: MicroATX,ITXHigh-concerned chemical: noneMaterial: Aluminum alloyModel Number: B2ProOrigin: Mainland ChinaPower Model: ATXRGB Support: NO RGBType: Full Tower

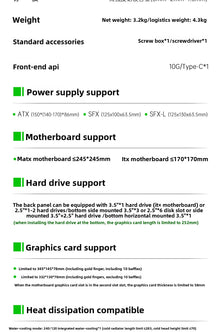

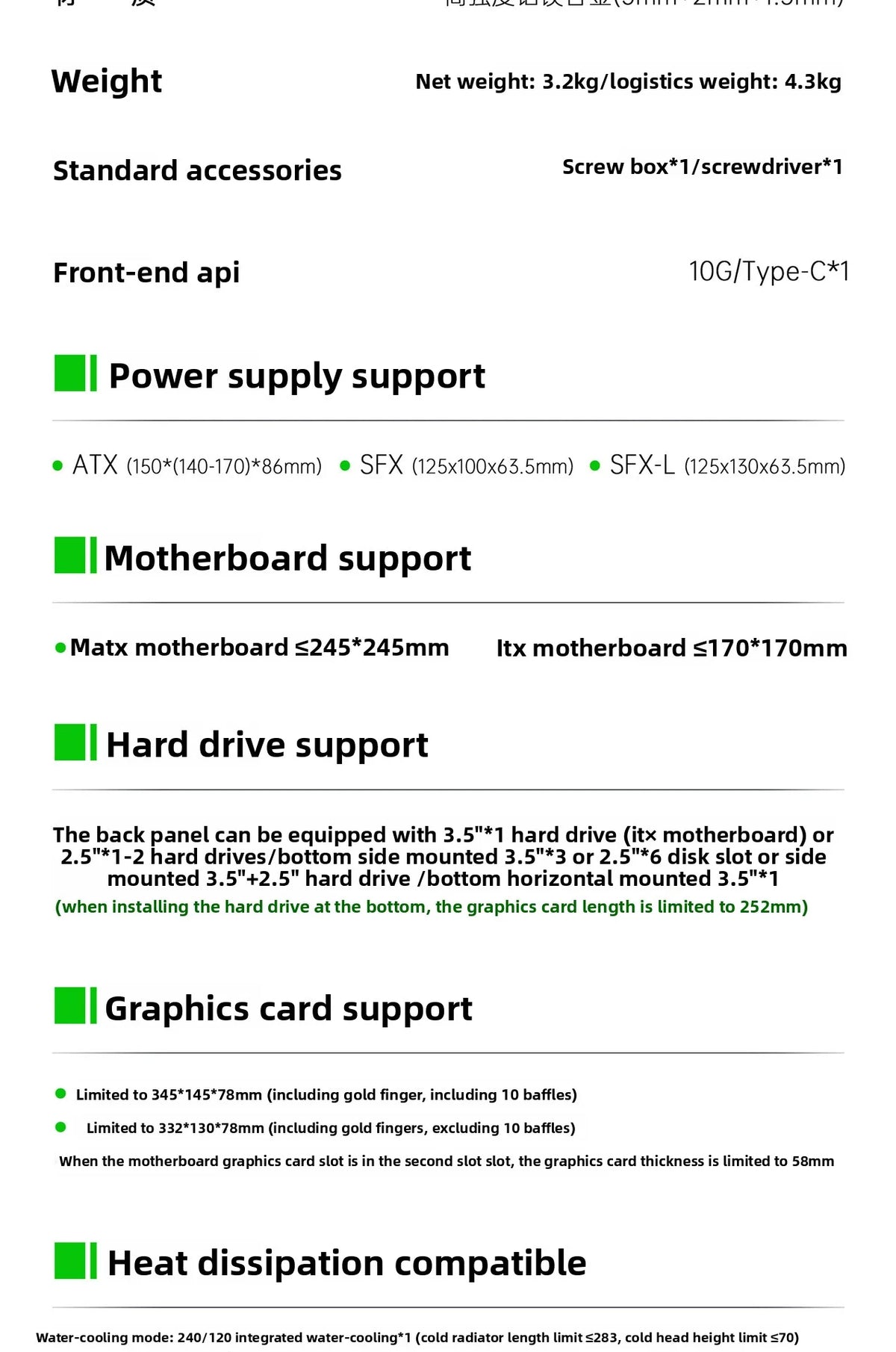

Hardware Supporting Specifications:

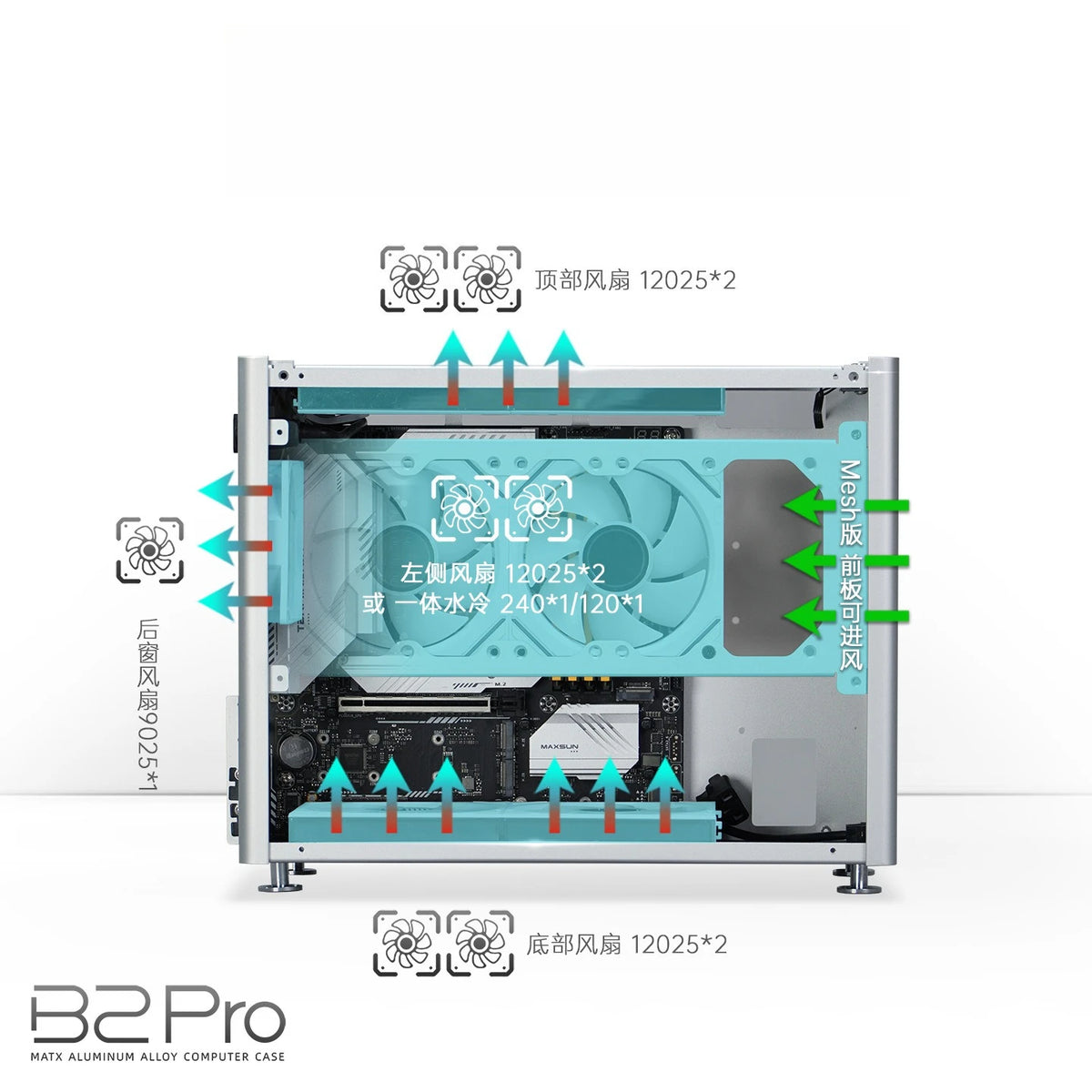

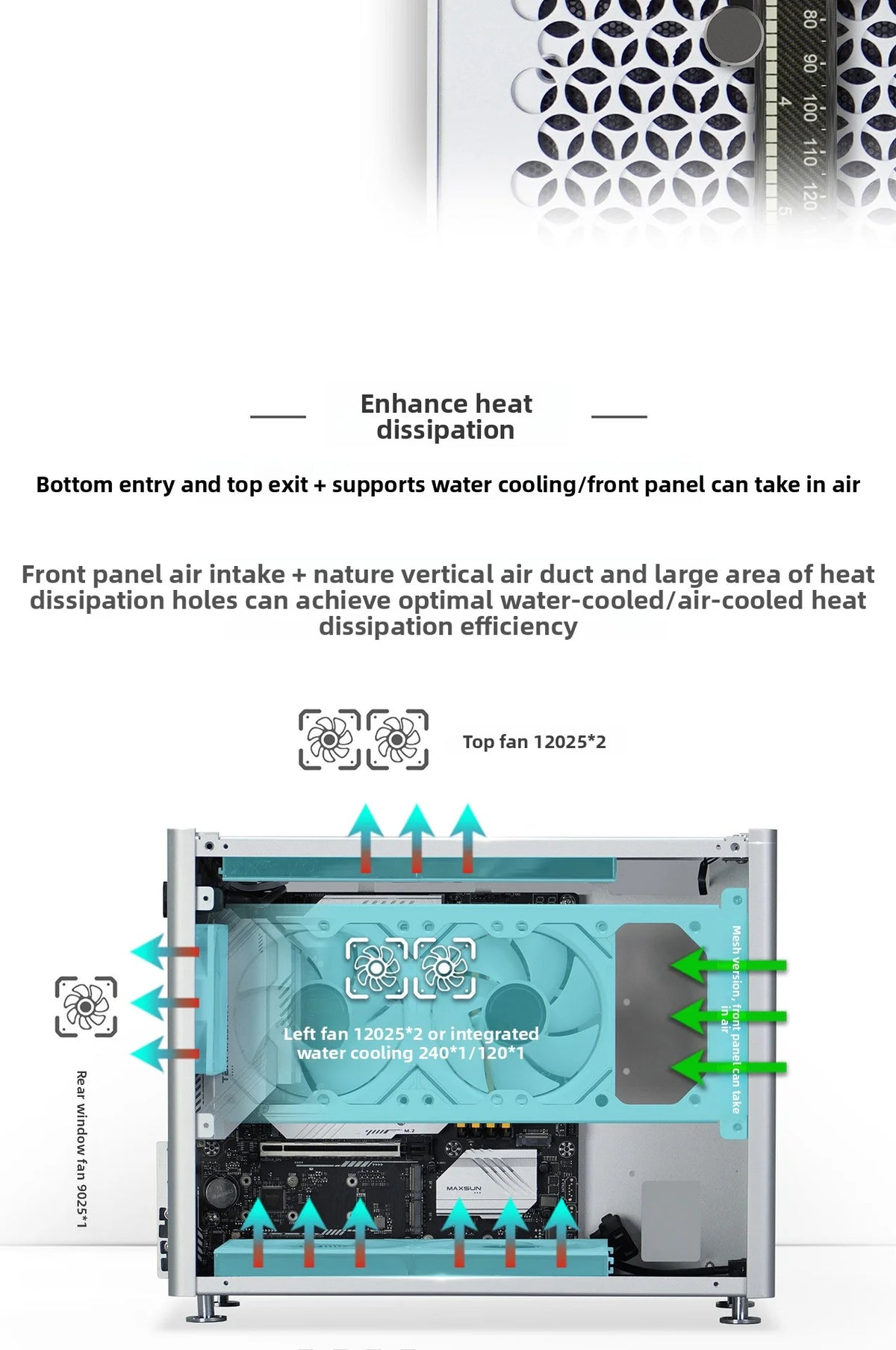

Motherboard:MATX(245*245mm) /ITX(170*170mm) ( I/O frame crossing ≤6mm)Power Supply:ATX (length limit 140-170mm), SFX, SFX-L (Pay attention to the conflictbetween graphics card length and power supply)Hard Drives:The rear panel can support 3.5"*1 HDD (ITX motherboard) or 2.5"*1-2 SSD orbottom side mounted 3.5"*3 HDD or 2.5"*6 SSD or side mounted 3.5"*1+2.5"*1hard drives or bottom horizontal mounted 3.5"* 1Graphics Card:3-slot GPU with a maximum size 340*142*78mm (including rear panel)(Notice: Supports most 4090 and other 40 series GPU. When the power lengthis ≤140mm, the graphics card is limited to 340mm in length. When the powerlength is>140mm but ≤170mm, the GPU length limit is 270mm and thickness≤55mm with a fan or with a horizontal HDD )CPU Cooling and Water Cooling Pump:High tower height limit 135mm(Notice: The fan near the memory of the twintowers may protrude due to the height of the memory, please be careful not toexceed the height of the middle 140 fan) Internal cooling pump height ≤ 70mmFront interface: 10G/Type-C * 1Fans:Top fan 12025*2Rear window fan 9025*1Bottom fan 12025*2Side support 2*120-25 fans(CPU radiator height is within 105mm without water cooling)Water Cooling:240/120 integrated water cooling*1 (length≤ 283mm, pump height≤70mm)* water cooling length limit within 278mm (rear window can fit 90-25 fans)* water cooling length limit 285mm (rear window can fit 90-15 fans)Attention should be paid to placing the water-cooled tube on the side of thepower supply(SFX/SFXL) during installation
