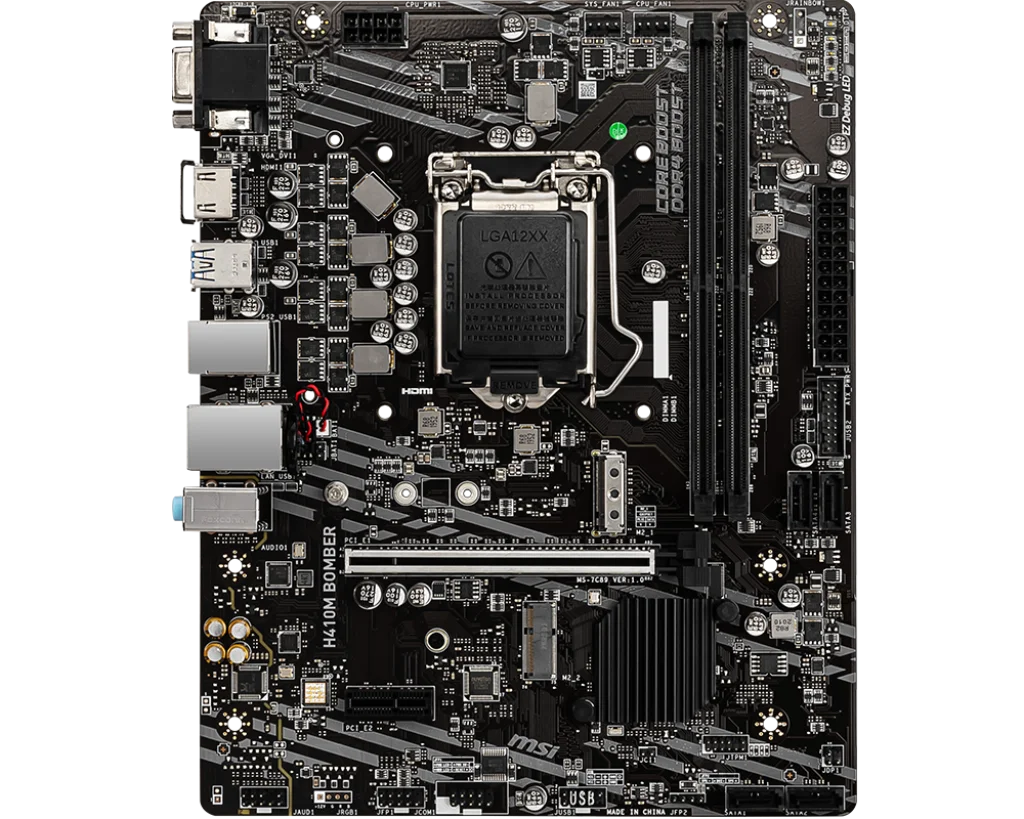

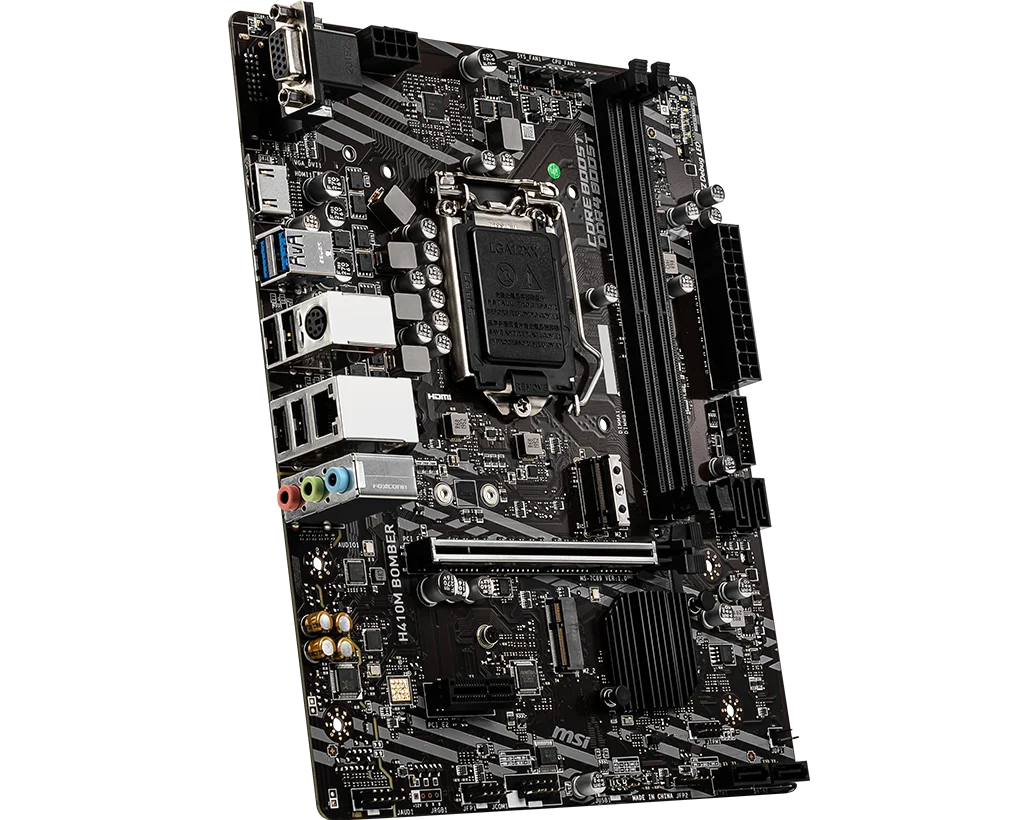

MSI H410M BOMBER Motherboard Intel H410 LGA1200 Micro ATX 2xDDR4 HDMI VGA 1x M.2
New
SKU: 200000828:9198229178
In stock
$82.00
✓ Secure checkout✓ Shipping updates✓ Customer support
✓
Product details
Specifications

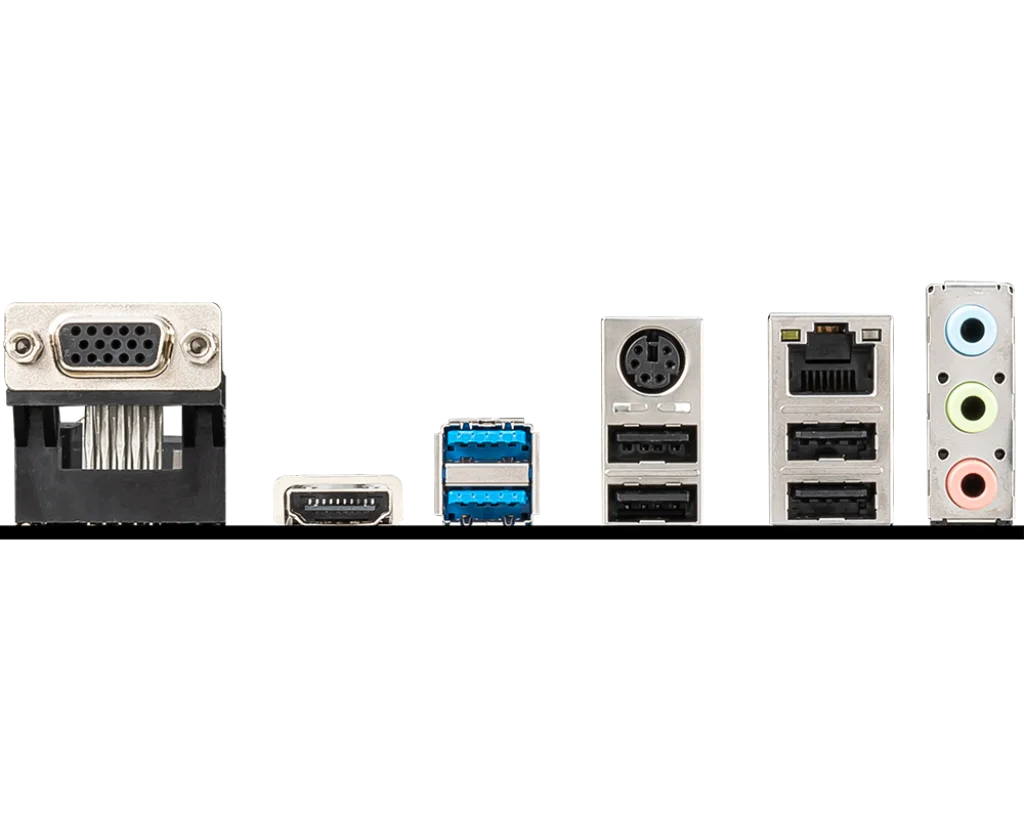

SPECIFICATIONSApplication: DesktopBack I/O Ports: 1x RJ45,VGA (D-Sub),HDMI 1.4Battery Included: noBrand Name: MSIChipset: H510Chipset Manufacturer: IntelHigh-concerned chemical: noneMaximum Ram Capacity: 64 GBNumber of PCI: 1Onboard LAN: 1x RJ45Origin: Mainland ChinaPCI - E standards: PCI-E 4.0Package: NoProcessor compatibility: 10th Intel Core i3,11th Intel Core i9,11th Intel Core i7,11th Intel Core i3,10th Intel Core i5,10th Intel Core i9,11th Intel Core i5RAID Supported: noSocket Type: LGA1200Special Features: NONEStorage Interface Type: SATA,M.2 (NVMe)Support Memory Type: DDR4Usage Scenario: Gaming,Audio & Video,OfficeWith CPU: No
ProcessorSupports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2Please go to www.intel.com for more compatibility information.Onboard graphics output are disabled when using F SKU processors.See supported processorsChipsetIntel® H410 ChipsetMemory2x DDR4 memory slots, support up to 64GB1Intel® Core™ i7/ i9Supports up to DDR4 2933 MHIntel® Core™ i5 and belowSupports up to DDR4 2666 MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)Please refer www.msi.com for more information on compatible memory.See supported memoryExpansion Slot1x PCIe 3.0 x16 slot (From CPU)1x PCIe 3.0 x1 slot (From PCH)1x M.2 slot with E key for WiFi module onlyOnboard Graphics1x VGA port, supports a maximum resolution of 1920x1200 @60Hz1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30HzMaximum shared memory is 1GBStorageIntel® H410 Chipset4x SATA 6Gb/s ports1x M.2 slot (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devicesUSBIntel® H410 Chipset4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)AudioRealtek® ALC892/ALC897 Codec7.1-Channel High Definition AudioLAN1x Intel® I219V Gigabit LAN controllerInternal connectors1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector4x SATA 6Gb/s connectors1x USB 2.0 connector (supports additional 2 USB 2.0 ports)1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)1x 4-pin CPU fan connector1x 4-pin system fan connector1x Front panel audio connector2x Front panel connectors1x Serial port connector1x TPM module connector1x Chassis Intrusion connector1x Clear CMOS jumper4x EZ Debug LEDBack panel portsKeyboard / MouseLANVGAHDMI™USB 3.2 Gen 1 5Gbps Type-AUSB 2.0USB 2.0Audio ConnectorsMSI Z490-A PRO back panel portsDimensionsMirco-ATX Form Factor9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
