MZX 15 in 1 USB-C Docking Station Type-C 4K 60Hz HUB Aluminum Extension Concentrator HDTV PD 100W USB C 3.0 SD 1000M Laptop Dock
New
SKU: 14:29#15 in 1 Vertical
In stock
$54.00
✓ Secure checkout✓ Shipping updates✓ Customer support
✓
Product details
Specifications
SPECIFICATIONSBrand Name: MZXFuntion: RJ45,3.5mm,USB-A,HDMI-Compatible/Card Reader/RJ45High-concerned chemical: noneInterface Type: USB Type-CMaterial: aluminumModel Number: Hub15-02 15 in 1 USB-C Docking Station HUBName: 15 in 1 USB-C Docking Station HUBOrigin: Mainland ChinaPackage: YesPorts: 15Standard: USB 3.1

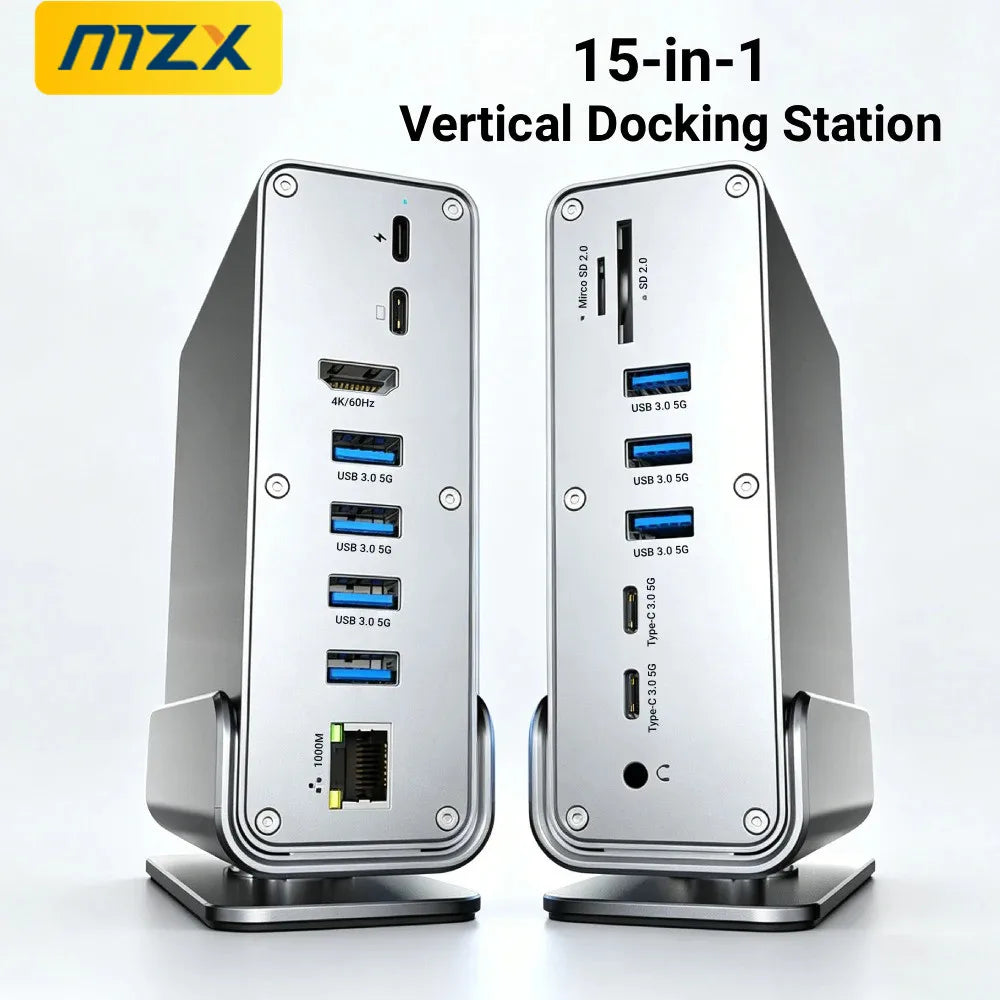

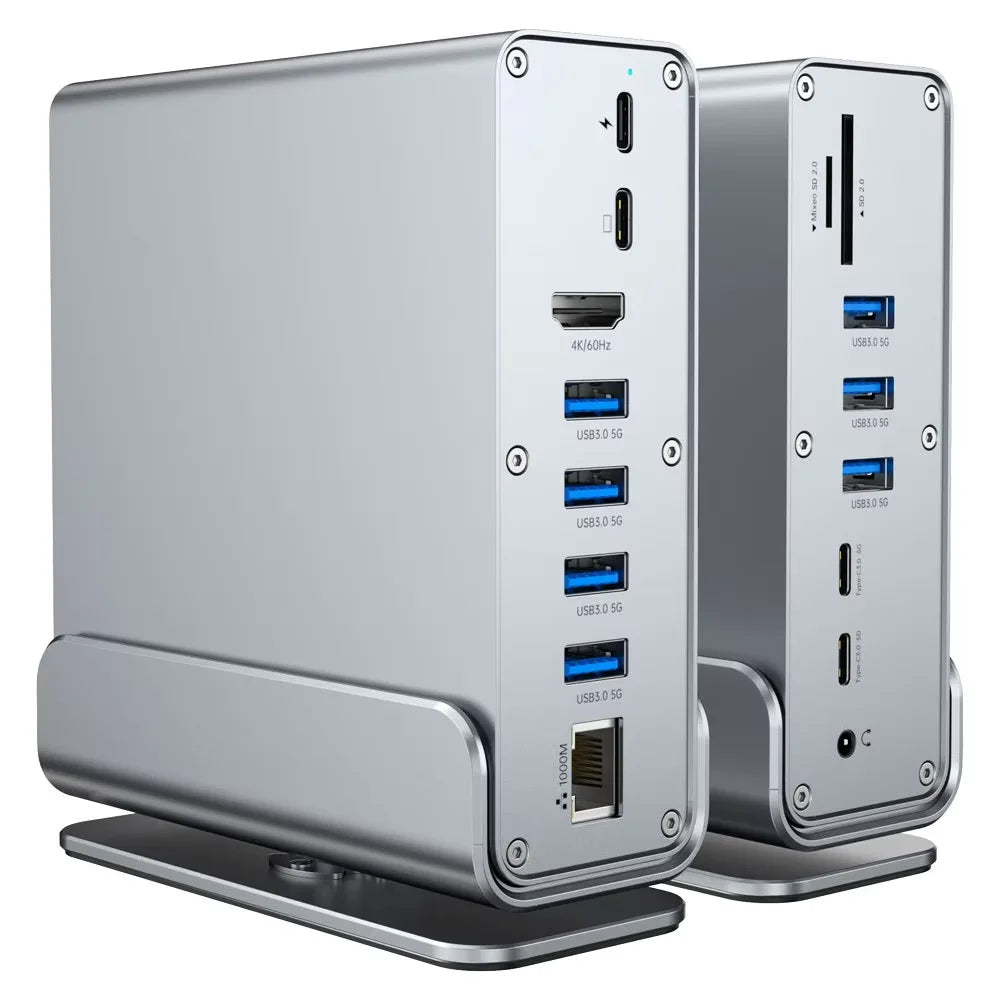

MZX 15 in 1 USB-C Docking Station Type-C 4K 60Hz HUB Aluminum Extension Concentrator HDTV PD 100W USB C 3.0 SD 1000M Laptop Dock

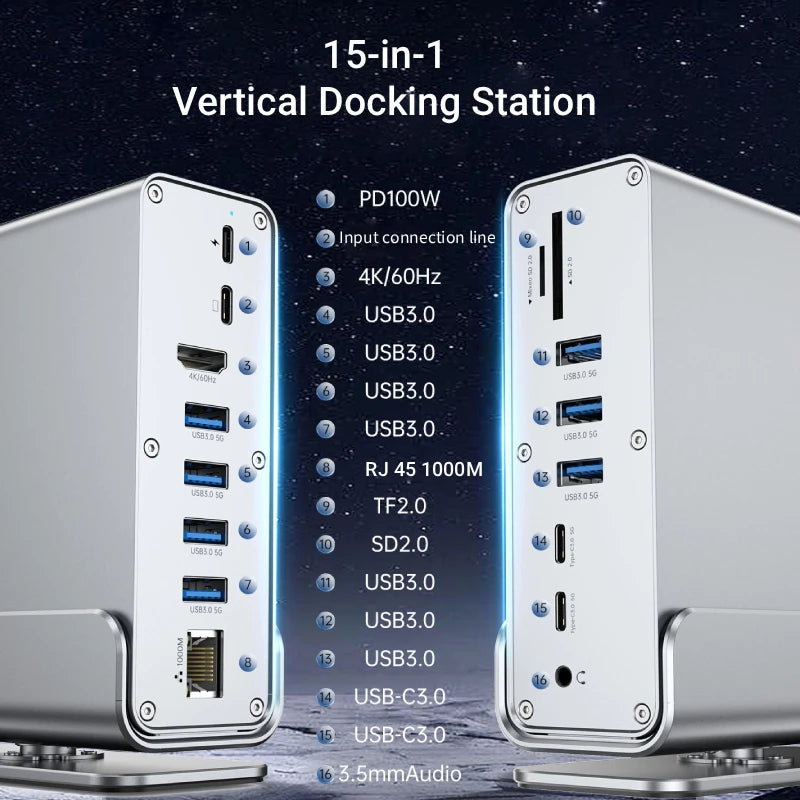

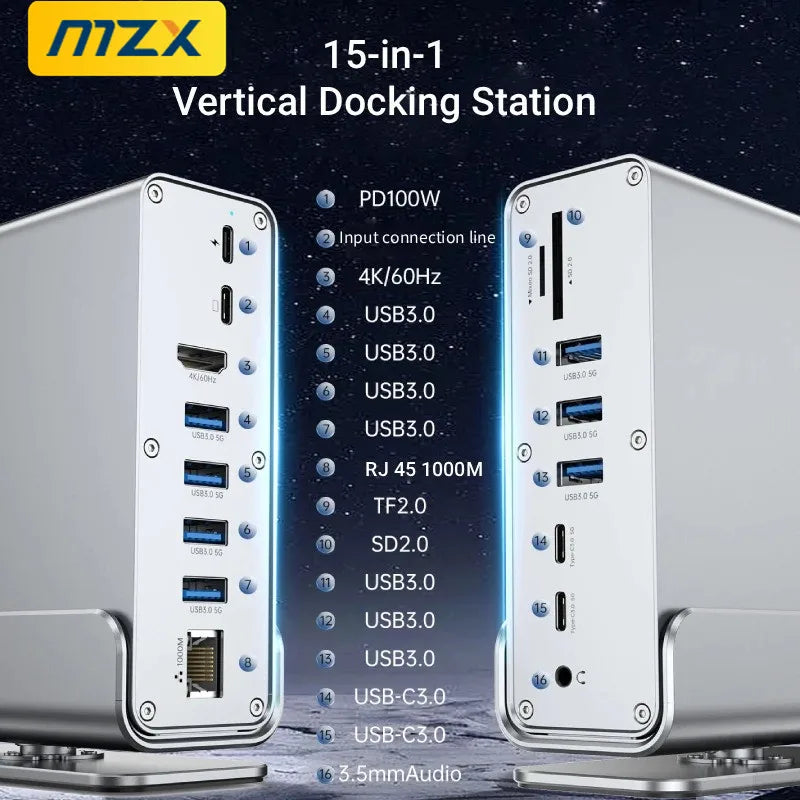

Product name: USB-C 15 integrated docking station
USB interface: USB3.0x7
Card reading interface: TF2.0+SD2.0 (cannot read at the same time)
USB-C interface: USB-C3.0x2+PD100W(Max)
Headphone interface: 3.5mm audio interface.
HDTV interface: 4K/60Hz

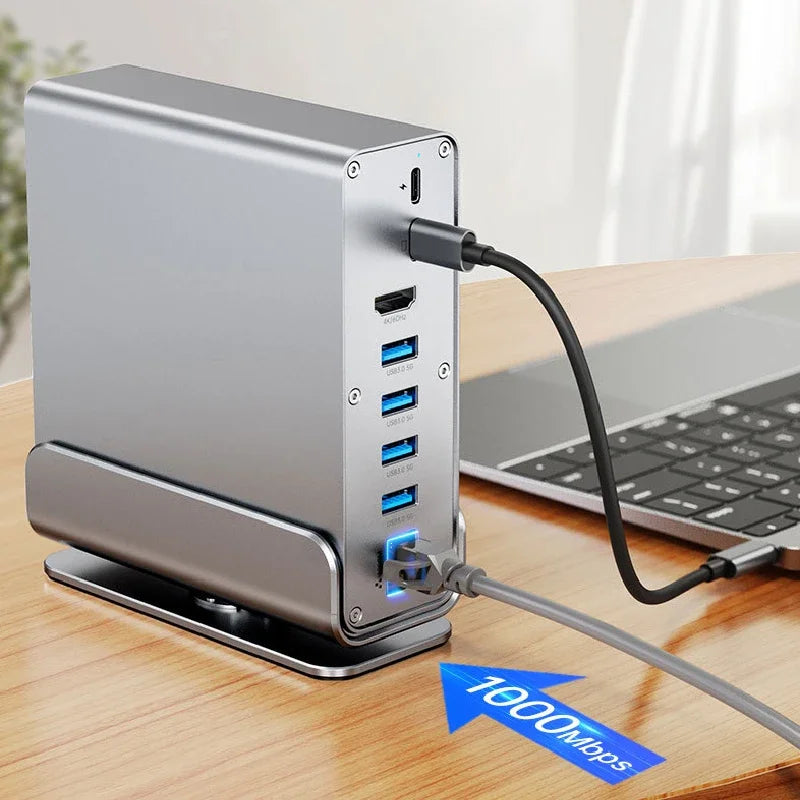

Network card interface: Support Gigabit Ethernet.
Material: aluminum shell
The host device MUST require:
- The USB-C port of the host device(laptop, tablet, smartphone) MUST be a full function one, at least a USB-C 3.1 Gen 2, or 3.2 Gen 2, or above version, Compatible for Thunderbolt 3 or 4 port;
- The host device must support "DisplayPort Alternate Mode" (DP Alt Mode) to output video via the USB-C port.
It's not compatible with devices which do not support the protocol of "DP Alt Mode";
- The USB-C port of the host device is also a AC(power) port which can be used to charge the laptop, or you don't want to power the laptop via this docking station.
WARNING TIPS:
1. If you are not sure whether this docking station is compatible with your laptop,
Before purchasing, please contact the seller to confirm whether the docking station hub supports your Type-C device.
2. You MUST make sure the host USB-C port is on the left side of your laptop.
Because the length of cable may be not long enough to connect USB-C port in the right side when placing this Docking station under the laptop.
Or you don't want to place this docking station under the laptop.
3. A 4K-capable display and HDMI-compatible cable are required to achieve 3840x2160 resolution.
It supports 4K or 2K when only one HDMI-Compatible monitor is connecting. When connecting more than one monitor, their resolution will be downward to 1080p.
4. When you use the docking station to extend monitors, please connect to monitors first, and then connect to your laptop.
HDMI-Compatible or VGA Hot plug is not supported.
5. Cannot read hard drive which cannot bring the Power Source, Cannot read hard drives more than 2TB, Cannot support the USB Hard Drive Power more than "5V 900mA".
6. The TF / SD card reader comes with a single drive chipset, read only one card at a time (cannot be used at the same time).
7. The 3.5mm jack Audio has Output function only for headphone or speaker, does not have input for Microphone.
About audio no sound, please check with seller. Maybe because the Audio should be used together with VGA or HDMI-compatible at the same time, for some models.
Not all laptops shift to the Audio model automatically, if no sound when headphones plugs in, please choose the sound channel to earphone mode manually.
8. HP charging problem was caused by HP and HP doesn't allow the third party charger to charge their computer, HP must use the original charger.
9. For stable connection, connect a power adapter to the hub when using high-power devices.
10. The working temperature of the hub is about 40℃/104F.
11. If your USB devices have connection performance problem, please change your WIFI to WIFI 5G to resolve interference between USB 3.0 and 2.4GHz WIFI Tips.

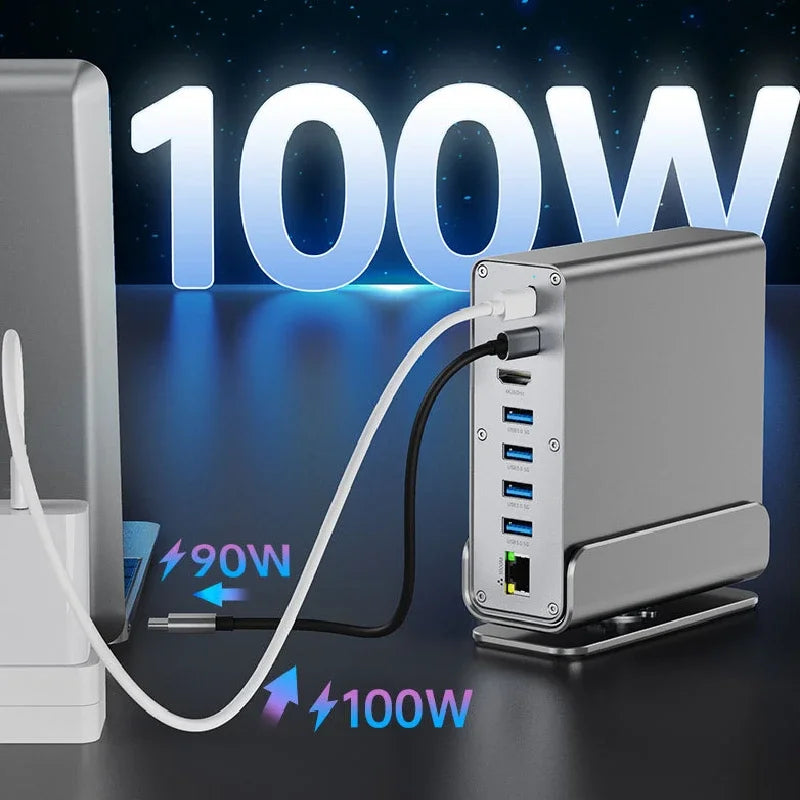

12. USB Type C PD 100W Input Charging Port, needs to use this port to supply power for the docking station, and charge your laptop from a power adapter (the laptop must support charge via this Type C port).
13. ONLY For Windows supports Extend 2 monitors to show the different screens(MST). For Macbook Mac IOS system doesn't support;
14. For Mirror/Copy mold:
All screens are showing the same content;
15. For Extend mold:
Windows system supports MST, the 2 extended monitors can show different content;
For Macbook Mac IOS system, the 2 extended monitors can only show same content, but they can be different content with laptop itself;
16. It supports 4K or 2K when only one HDMI-Compatible or DP monitor is connected.
When connecting more than one monitor, the resolution will be downward to 1080p.
When only HDMI-Compatible or DP is connected, the output resolution is 4K.
When both HDMI-Compatible(or DP) and VGA are connected, the output resolution is 1080P.

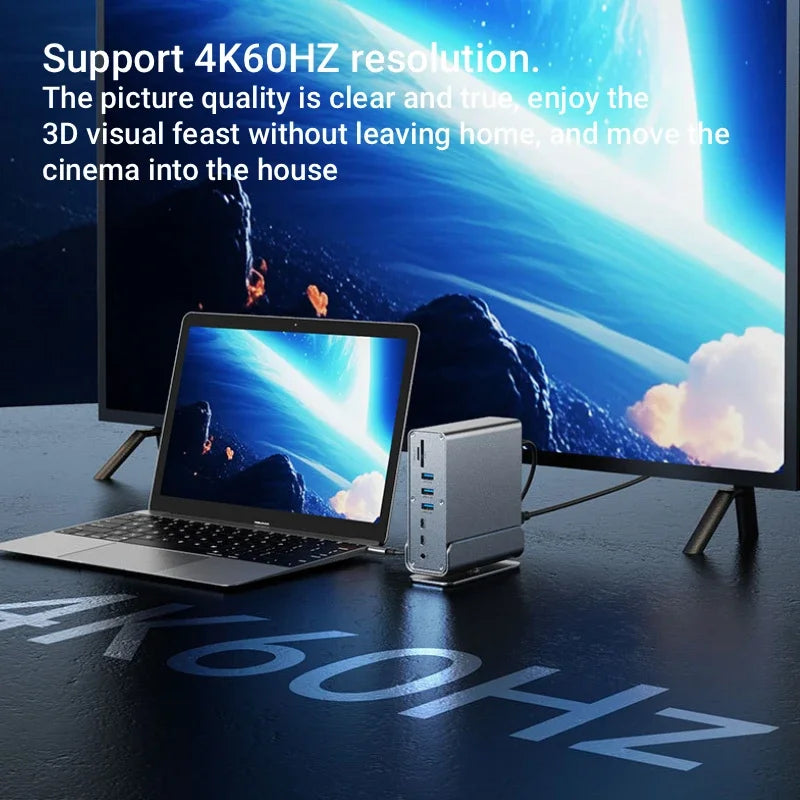

Support 4K60HZ resolution.
The picture quality is clear and true, enjoy the 3D visual feast without leaving home,cinema into the house

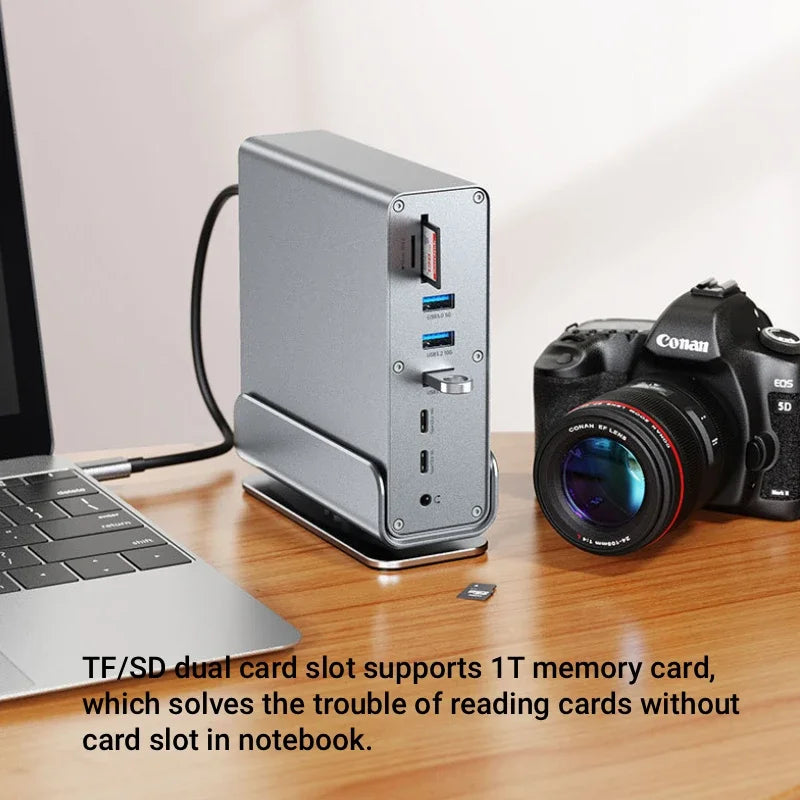

TF/SD dual card slot supports 1T memory card,which solves the trouble of reading cards without card slot in notebook.

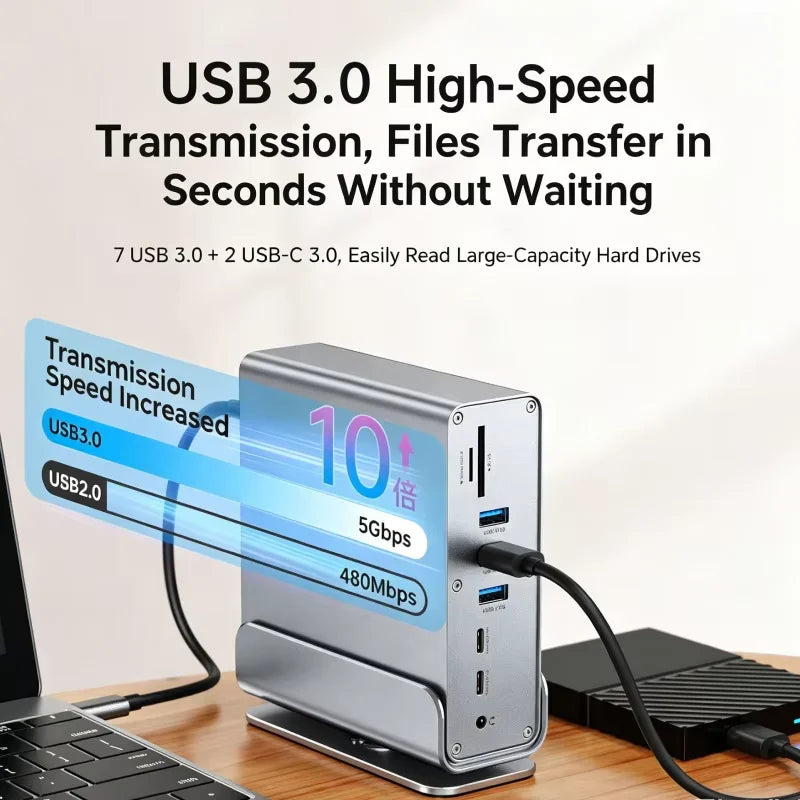

7 USB 3.0 + 2 USB-C 3.0, Easily Read Large-Capacity Hard Drives
